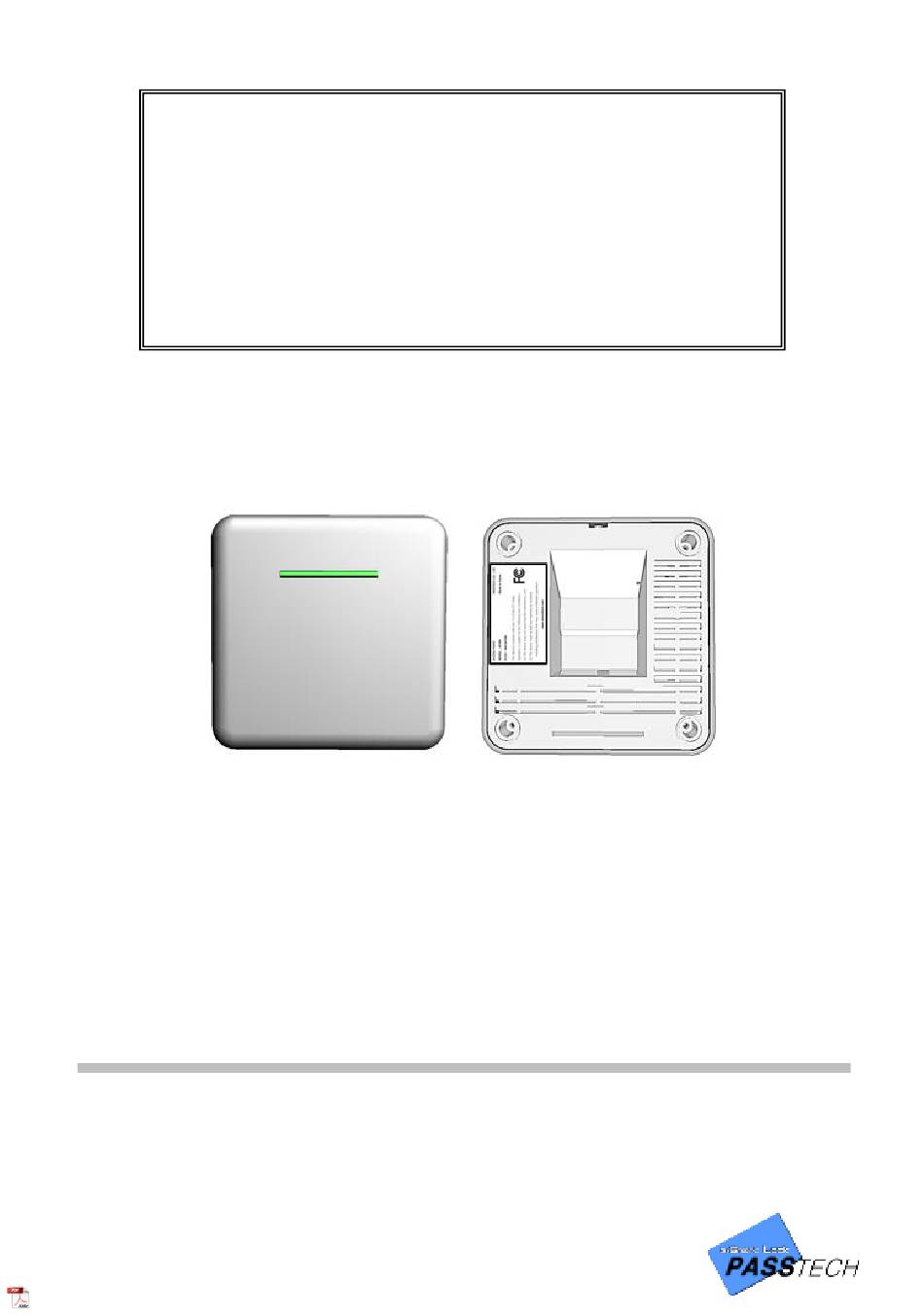

USER GUIDE

ACCESS POINT

(AP300_Ethernet Setting)

Passtech Co., Ltd.

or use this document in part or as a whole for any purposes other than those for which this document is

disclosed. This document is copyrighted and contains confidential information and other intellectual property

rights of Passtech Inc. Any unauthorized use, copy, disclosure or distribution constitutes infringement of

Passtech's intellectual property rights.

Table of Contents

Need help?

Do you have a question about the AP300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Passtech AP300

Page 1 Passtech Co., Ltd. Copyright ⓒ 2017 Passtech Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this document in part or as a whole for any purposes other than those for which this document is disclosed.
Page 2 Passtech. Composition of the information in this manual has been done to the best of our knowledge. Passtech does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information.
Page 3: Table Of Contents
1. Components Preparation ............4 SETUP Components ..............4 Setting Diagram ................4 2. AP Setting ..................5 SERVER & AP300 Communication Diagram ......... 5 AP Setting ..................5 3. Server Setting ................11 Server pre-setting (DB Connection) ..........11 Server Connection ...............
Page 4: Components Preparation
AP300 (ACCESS POINT) User Manual 1. Components Preparation SETUP Components Setting Diagram Version: 1.0 http://www.esmartlock.com...
Page 5: Ap Setting
AP300 (ACCESS POINT) User Manual 2. AP Setting SERVER & AP300 Communication Diagram Internet AP Setting Before creating AP account, please check PC IP and TCP/IP first by running ‘Command Prompt’ and inputting ‘ipconfig’ command as below. ① Open ‘AP300(2Bytes Floor)’.
Page 6 AP300 (ACCESS POINT) User Manual ② Click ‘Search’ button. Mac address and IP of connected AP200 will be shown on AP List. Version: 1.0 http://www.esmartlock.com...
Page 7 AP300 (ACCESS POINT) User Manual ③ Select an AP which you want to configure from the AP list, and input values in ‘Ethernet Setting’ referring to the description below. Item Description AP IP Local IP Make sure this IP is only assigned to this AP...
Page 8 AP300 (ACCESS POINT) User Manual ⑤ Select RF Channel and then click ‘Conn’ button and check the message ‘Connected OK’ from the message box. If it is connected well, ‘WRITE’ and ‘READ’ buttons will be activated. ⑥ Click ‘READ’ button to check current saved information.
Page 9 AP300 (ACCESS POINT) User Manual ⑦ Input values in ‘AP Setting’ referring to the description below. Item Description AP name that will be inputted into AP Account in Client program Assign AP ID on your own, but do not duplicate...
Page 10 AP300 (ACCESS POINT) User Manual Item Description AP Name Input AP Name which you set in AP Settings Server IP Update Flag Check to update the information into Server program automatically AP IP Input AP IP address which you set in AP Settings...
Page 11: Server Setting
AP300 (ACCESS POINT) User Manual 3. Server Setting Server pre-setting (DB Connection) ① Change the environmental files for DB connection before executing the communication Server Program. Run “ConfigSetting.exe” in the folder where the program is installed. ② Input the Connect information to connect DB.
Page 12 AP300 (ACCESS POINT) User Manual ④ Click “Config” and put information as below; ② ① ③ ➔ Put information same as the one you put for config setting above. (Local Server IP will be your PC IP) Ex) 192.168.0.52,1433 SQL DB PC IP MSSQL Connect Port (Default: 1433) Version: 1.0...
Page 13: Server Connection
AP300 (ACCESS POINT) User Manual Server Connection ① Run the Server Program (PTHMS_Server.exe). ② The program is started as shown below. Version: 1.0 http://www.esmartlock.com...
Page 14 AP300 (ACCESS POINT) User Manual ③ If the SQL DB is not accessible, the above program will not be executed. The DB Connection Configuration screen will appear, and you have to enter the DB connection value as shown below. (Refer to contents 4-1) ④...
Page 15 AP300 (ACCESS POINT) User Manual ⑥ Once the server account is created successfully, you will see a screen below. ⑦ This is the part where you can register the AP information that connects to Server, which you have set from AP Management Program. (AP Client has to be set up before this. – please refer to 3-2) ⑧...
Page 16 AP300 (ACCESS POINT) User Manual ⑨ Put all the information same as AP Client. ② ① ③ ④ ⑤ ⑥ ① AP Name (must be same as AP Client) ② Channel number (must be same as AP Client) ③ AP IP Address (same IP as Local IP in AP Client) ④...
Page 17: Server Startup And Shutdown
AP300 (ACCESS POINT) User Manual Server Startup and Shutdown 1) Server Program Startup ① Run Server Program (PTHMS_Server.exe). ② When the program is running, a Tray-Icon is created as below. 2) Program Shutdown To exit the program, right-click the Server Icon on the Tray-Icon and click “Exit”., or can be forced to terminate in the Task Manager.
Page 18: Specification
AP300 (ACCESS POINT) User Manual 6. Specification Item Detail Material 2.4Ghz Zigbee(ONLINE LOCK COMM) Communication TCP/IP(SERVER COMM) Security AES128 Power Supply DC 12V ADAPTOR & POE(IEEE802.3af) Indicator Dimension 101.60mm * 101.60mm * 27.50mm Operation TEMP 0℃ ~ 50℃ Certification CE, FCC *****This furniture lock system is using in Hotel, Office and any place which is without residential area.
Page 19: Regulatory Statement
AP300 (ACCESS POINT) User Manual 7 Regulatory Statement FCC Part 15.105 statement (Class A) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
