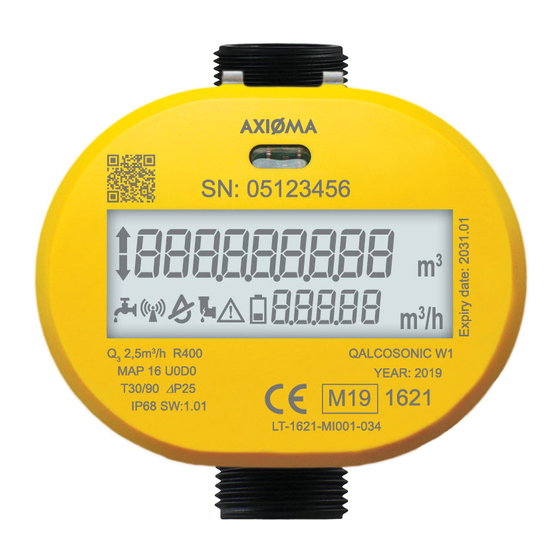

Ultrasonic water meter
Hide thumbs Also See for QALCOSONIC W1:
Table of Contents

Advertisement

Quick Links

ULTRASONIC WATER METER
QALCOSONIC W1
TECHNICAL DESCRIPTION,
INSTALLATION MANUAL AND
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QALCOSONIC W1 and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMA METERING UAB QALCOSONIC W1

Summary of Contents for AXIOMA METERING UAB QALCOSONIC W1

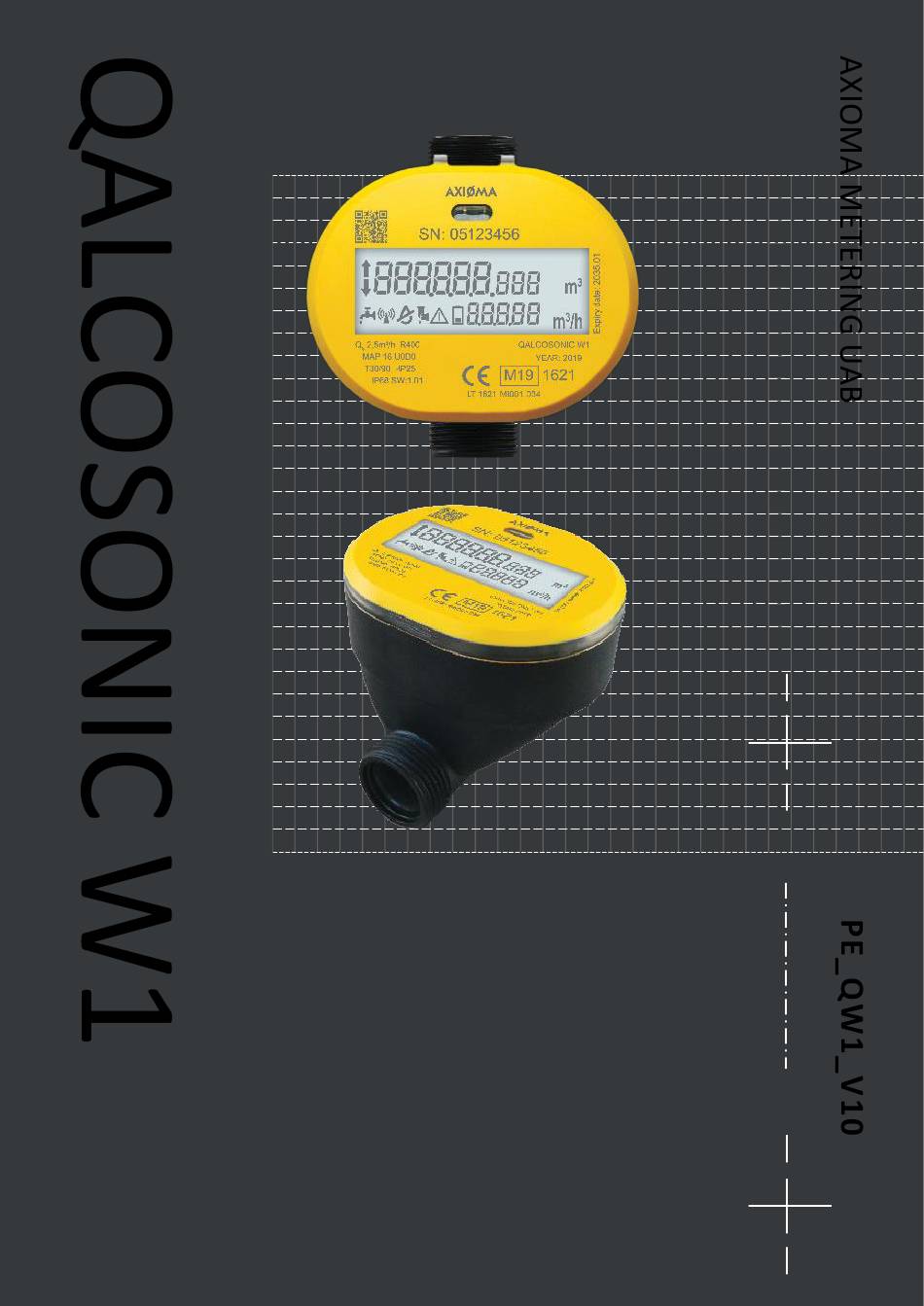

  • Page 1 ULTRASONIC WATER METER QALCOSONIC W1 TECHNICAL DESCRIPTION, INSTALLATION MANUAL AND USER GUIDE...

  • Page 2: Table Of Contents

    EU DECLARATION OF CONFORMITY SAFETY INFORMATION 1 APPLICATION FIELD 2 TECHNICAL DATA 2.1 DISPLAY (LCD) 2.2 DATA RECORDING AND STORAGE 2.3 ALARMS 2.4 EXTERNAL COMMUNICATION MODULES AND INTERFACES 2.5 METER PULSE OUTPUT 2.5.1 P ULSE OUTPUT IN TEST MODE VIA OPTICAL INTERFACE 2.5.2 P ULSE OUTPUT VIA WIRED INTERFACE 2.6 POWER SUPPLY...
  • Page 3 ANNEX C.2 ANNEX C.3 ANNEX C.4 ANNEX D.1 ANNEX D.2 ANNEX D.3 ANNEX D.4 WARRANTY...

  • Page 4: Eu Declaration Of Conformity

    EU DECLARATION OF CONFORMITY AXIOMA Metering UAB, Veterinarų str. 52, Biruliškių k., Kaunas district, Lithuania, here by declares that the water meter QALCOSONIC W1 conforms to the essential requirements of the following Directives: Parliament and of the Council of 26 February 2014...
  • Page 5 ORDERING CODE COMBINATION OF THE METER: Meter QALCOSONIC W1 Type THE RATIO R (Q CODE 1000 PERMANENT FLOW RATE Q , OVERALL LENGTH L, END CONNECTIONS CODE M3/H 3 G ¾ 105, 105n* G ¾ 110, 110n* G ¾ 165, 165n* G ¾...

  • Page 6: Technical Data

    TEMPERATURE CLASS: CODE Temperature class T 30 Temperature class T 30/90 Temperature class T 90 Temperature class T 50 Connection type METER DESIGN: CODE G¾, G1 In accordance with the Annex A G¾, G1 In accordance with the Annex B Complect set CODE The water filter is not included...
  • Page 7 Δp 12,50 0,025 0,040 0,003 G1 ¼ Δp 800* 12,50 0,0125 0,020 0,003 G1 ¼ Δp 1000* 12,50 0,010 0,016 0,003 G1 ¼ Δp 7,785 0,079 0,126 0,005 G1 ¼ Δp 7,785 0,040 0,063 0,005 G1 ¼ Δp 7,785 0,0252 0,040 0,005 G1 ¼...

  • Page 8: Display (Lcd)

    ALARMS Qalcosonic W1 meter has integrated system that informs about certain alarms, which are indicated as an error code on LCD and transmitted as a status byte within data telegrams. Some of them are critical and could be sent immediately over LoRa.

  • Page 9: External Communication Modules And Interfaces

    LIST OF ALARMS: • Leakage (occurs when constant flow rate within 24 hours is more than 0.25/0.5/1% of Q3. Disappears after 1 hour, if constant flow rate within that hour is less than configured value). • Burst (occurs when constant flow rate within 60 minutes is more than 5/10/20% of Q3. Disappears after 32 seconds, if constant flow rate within that period of time is less than configured value).

  • Page 10: Meter Pulse Output

    RF 915 MHz • RF 920,5 MHz • NB IoT (frequency bands B1, B3, B5, B8, B20, B28) • • DATA IN QALCOSONIC W1 METER CAN BE TRANSMITTED USING THE FOLLOWING PROTOCOLS: • wMBus T1 • wMbus T2 • wMBus S1 •...

  • Page 11: Mechanical Data

    2.7 MECHANICAL DATA Dimensions of Qalcosonic W1 water meter are not greater than 170mm x 139 mm x 200 mm (DN50, L200). WEIGHT OF DIFFERENT SIZES OF QALCOSONIC W1 WATER METERS (WITHOUT ACCESSORIES) ARE SHOWN IN THE TABLE END CONNECTIONS (OVERALL LENGTH) WEIGHT OF METER, NOT MORE THAN, KG G ¾...

  • Page 12: Marking And Sealing

    4 MARKING AND SEALING 4.1 MARKING There is following information is engraved in and serial number permanent flow rate Q3 which the meter shall be replaced, software grade: EU-type examination certificate and ratio (Q3/Q1) preceded “R”, temperature version number, IP code, QR code or barcode number, manufacturer’s trademark,...

  • Page 13: Mounting

    5.4 MOUNTING Temperature of the working environment Straight pipelines upstream To avoid stresses in the pipelines, the should not be higher than 70°C. downstream from the meter are not required distance between the meter connection (flow profile sensitivity class is U0 D0). points in the meter installation place shall No special requirements are established for correspond to the total length of meter with...

  • Page 14: Menu Structure

    6.2 MENU STRUCTURE Menu structure in complete mode is presented in Fig. 6.1. Meter menu stages switches automatically. Individual stages, except of total volume and error (status) code, could be disabled during installation. Error code is displayed only when error occurs. If there are no errors detected by the meter, then error code is not displayed. By default, meter LCD shows error code and total volume / flow rate stages.

  • Page 15: Viewing The Readings In Complete Mode (User Menu)

    6.3 VIEWING THE READINGS IN COMPLETE MODE (USER MENU) REMARK: here the full list of shown parameters is represented. By default, only error (status) code and total volume / flow rate stages are enabled. Parameter Value (example) Remarks Total volume, Flow rate Direct flow volume Reverse volume...

  • Page 16: Viewing The Readings In Verification (Test) Mode

    Display of irrelevant parameters can be turned off. Also, parameters that are not relevant to the specific meter configuration will not be indicated. Indication of specific parameters can be turned on or off by means of meter configuration tools 6.4 VIEWING THE READINGS IN VERIFICATION (TEST) MODE Menu structure in verification (test) mode is presented in the Fig 6.2.

  • Page 17: Test (Verification) Mode Control

    Active info codes are added if there is detected more than one error. Then the summary indicated info code will be as follows: C - corresponds error code 8 + 4 3 - corresponds error code 2 + 1 9 - corresponds error code 8 + 1 D - corresponds error code 8 + 4 + 1 5 - corresponds error code 4 + 1 A –...

  • Page 18: Annex A.1

    ANNEX A.1 Sizes and dimensions of water meter QALCOSONIC W1 A.1 G ¾ : MODEL L, MM G ¾ L80 G ¾ L105 G ¾ L110 G ¾ L165 G ¾ L170 axiomametering.com...
  • Page 19 ANNEX A.2 A.2 G1 MODEL L, MM DN20 L105 DN20 L110 DN20 L130 DN20 L165 DN20 L190 axiomametering.com...

  • Page 20: Annex B.1

    ANNEX B.1 B.1 G ¾ MODEL L, MM G ¾ L105n G ¾ L110n G ¾ L165n G ¾ L170n axiomametering.com...

  • Page 21: Annex B.2

    ANNEX B.2 B.2 G1 MODEL L, MM G1 L105n G1 L110n G1 L130n G1 L165n G1 L190n axiomametering.com...

  • Page 22: Annex C.1

    ANNEX C.1 C.1 G1 ¼ MODEL L, MM G1 ¼ L260 axiomametering.com...
  • Page 23 ANNEX C.2 C.2 G1 ½ : MODEL L, MM G1 ½ L260 axiomametering.com...
  • Page 24 ANNEX C.3 C.3 G2: MODEL L, MM G2 L300 axiomametering.com...
  • Page 25 ANNEX C.4 C.4 DN50 MODEL L, MM G2 ½ L200 axiomametering.com...
  • Page 26 ANNEX D.1 Example of sealing water meter after installation D.1 - G ¾ axiomametering.com...
  • Page 27 ANNEX D.2 D.2 - G1 ¼ : axiomametering.com...
  • Page 28 ANNEX D.3 D.3 - G1 ½ : Wire Seal axiomametering.com...
  • Page 29 ANNEX D.4 D.4 - DN50 axiomametering.com...
  • Page 30 WARRANTY Manufacturer gives warranty that meter parameters will meet the technical requirements, listed in the paragraph 2 of this document, if transportation, storage and operation conditions will be followed. Warranty period – 6 years from manufacturing date. MANUFACTURER’S ADDRESS: UAB “Axioma Metering”, Veterinarų g. 52, Biruliškių k., Kauno raj., Lithuania tel.
  • Page 31 Where innovation UAB „Axioma Metering“ becomes metering@axioma.eu axiomametering.com affordable QALCOSONIC W1...
