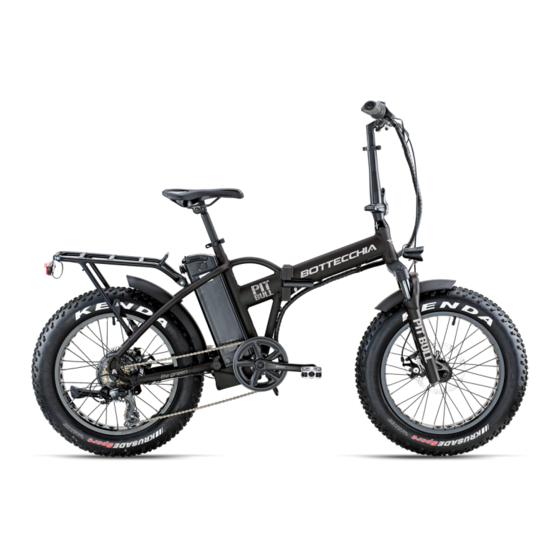

  • Page 1 EICJTTECCHIA User's Guide BE01 PITBULL...
  • Page 2 Display Electric bicycle intelligent LCD instrument Specifications • Power supply: 36V • Rated current l0mA Co rrente di funzio namento • The maximum wo rking current 30mA • Off leakage current < luA • The supply co ntro ller wo rking current S0mA •...

  • Page 3: Button Definition

    Function Summary Display can provide a lot of functions to fit the users’ need. The indicating contents are as following. - Speed Indicator - 6km/h Cruise control - Headlight On/Off - Power assist level - Battery indicator - Error Code Indicator Battery level Mode list Power assist level...
  • Page 4 When parking e-bike for more than 10 minutes, the display shut down automatically. Display Interface After starting up the display these are the information displayed: Speed Total distance Battery Power assistant level To change the information shown, press the MODE key.

  • Page 5: Headlight On/Off

    The e-bike will go at a uniform speed of 6km / h and show the "P" symbol on the display. To deactivate the push, release the DOWN button. I I.IJ Km/h Warnings: do not use the cruise mode against / when the e-bike has no contact with the ground.
  • Page 6 L� Power assist level Selection The power assist level indicates the power delivered by the motor. Default level is "l". The power range is from "O" (no power) a "5" (maxiumum). To increase or decrease the power level, press the UP / DOWN bottons.
  • Page 7 �r.,1 �: � ,,� : � , � : � �------- Error Code Indicator In the event of an error in the electronic system, an error code will be shown on the display. See error code list for details. - - Ji - �...
  • Page 8 Press the MODE key to save and access the backlight menu. Backlight setting The bl code indicates the Backlight setting. Level "1" indicates the lowest brightness; Level "2" the intermediate one; Level "3" the highest brightness. The default is "1". To increase or decrease the brightness, press the UP or DOWN buttons.
  • Page 9 MCJD Unit conversation (km / mi) The U code represents the unit change setting: the "l" value indicates miles, "2" the kilometers. The default value is 2. To convert the unit, press the UP or DOWN button. Press the MODE button to save and access the travel distance reset.
  • Page 10 ERROR CODES TAB ERROR CODE DEFINITION CURRENT ANOMALY MOTOR ANOMALY SENSOR ANOMALY BRAKE ANOMALY LINKS PROBLEM In the event that an error is shown on the display, contact the dealer where the bicycle was purchased to verify the problem and solve it. Battery Instructions for user Please read the battery instructions carefully.
  • Page 11 •After the first three charging cycles, fully charge the battery. This will give maximum capacity to your battery. If the battery is continuously and completely discharged during use and never fully charged, this will reduce its life. • Never leave the battery completely empty and recharge it even after a short period of use.

  • Page 12: Battery Charger

    • Do not put in microwave or other kitchen ovens. • Keep the battery away from the mobile phones or from the charger if it is hot to the touch, if it leaks liquids or has a strange smell. Dispose of it. Defective batteries can cause overheating, they can catch fire.
  • Page 13 • Use only the charger that is supplied with the electric bike. • Do not cover the charger while it is in use. • When cleaning the charger, unplug it from the power outlet. • When the charging time exceeds what indicated on the specifications table, stop charging.

  • Page 14: Charge The Battery

    LED state of charge Check the battery charge level by pressing the battery on / off button. The charge level is indicated by leds, which are illuminated differently depending on the charge level. Charge the battery You can charge the battery either when it is assembled on the bike or when it is not assembled.
  • Page 15 Be sure to use the correct main voltage. The correct main voltage required isindicated on the charge. It must respect the voltage of the current source. The 230V chargers can also operate at 220V. Warnings • Do not touch the socket with wet hands to avoid shock. •...

  • Page 16: Battery Wear

    • Avoid storing the battery in direct sunlight. • To prevent the complete discharging, the battery will go into “sleep” mode after a certain period. • Do not expose the battery to temperatures lower than those allowed -10 ° c. •...
  • Page 17 Disposal If you replace parts of your e-bike, please take note of the local waste disposal regulations. Used batteries and accumulators do not have to be disposed with normal household waste. Every consumer is required by law to dispose of used batteries at specific collection points at a recycling center, a battery trading company, a specialist retailer or manufacturer.
