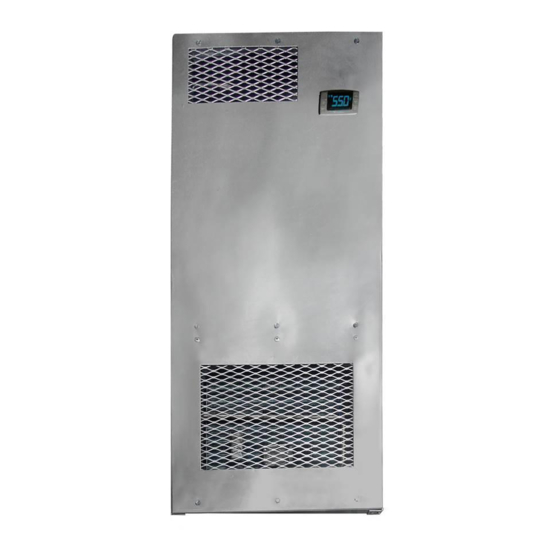

- Page 1 Split Water-Cooled Wall-Recessed Cooling System Operation Care Installation Manual WM-2500SSWWC WM-4500SSWWC www.vinotemp.com Read and save these instructions Vinotemp International Corp 732 South Racetrack Road, Henderson, NV 89015 Tel: (800) 777-VINO Fax: (310) 886-3310 Email: info@vinotemp.com...
- Page 2 Important Safety Information WARNING To avoid the risk of electrical shock, property damage, personal injury, or death: • The power cord must be plugged into a 3-prong grounding type wall receptacle, grounded in accordance with the National Electrical Code, ANSI/NFPA 70 – latest edition and local codes and ordinances. •...
-
Page 3: Table Of Contents
Table of Contents Cellar Construction Guide ----------------------------------------- 3 Features & Specifications Temperature & Humidity Care Guide- User’ Troubleshooting Installer’s Instructions- Electrical Wirings -- Warranty --- --- -- - -- -- --- -- -- --- -26... -
Page 4: Cellar Construction Guide
Cellar Construction Guide This is only a guide and shall be considered as the minimum requirements. All interior walls, ceilings and floors shall have a vapor barrier and a minimum of R13 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation. -
Page 5: Features & Specifications
Features and Specifications • WM-2500~4500SSWWC split water-cooled wall-recessed cooling systems are designed to provide a cold environment between 50~65 °F with a humidity range within 50~70% RH for a properly insulated wine cellar. • These temperature and humidity ranges are optimized for long term storage of wine like that in natural caves. - Page 6 If the condensing unit will operate below 50°F, install a low CAUTION ambient condition kit. NOTE The cooling capacity is determined under 55°F cellar temperature, 75°F cellar ambient temperature and 90°F condensing unit ambient temperature, with R13 interior and R19 exterior insulations. Higher ambient temperatures or lower insulations will cause reducing capacity and the cellar temperature may not be maintained at 55°F.
-
Page 7: Temperature & Humidity
Temperature and Humidity 1. The controller Fig. 2 TEMPERATURE CONTROLLER 1) Keys SET: To display set-point; in programming mode it selects a parameter or confirms an operation. : To start a manual defrost. : To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value. - Page 8 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe Compressor switching to Con and faulty High temperature Probe temperature ALU higher than alarm setting temperature; Outputs unchanged Low temperature Probe temperature ALL lower than alarm setting temperature;...
- Page 9 5. Manual Defrost Press and hold the defrost key until defrost starts. The defrost indicator will be 6. Parameter Programming keys until the “°C” or “°F” LED starts flashing, 1) Press and hold the SET + then release the keys. 2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the keys.
- Page 10 7. How to calibrate the air probe If the actual cellar temperature differs from the setting temperature, set parameter ot = actual cellar temperature minus set-point. 8. How to adjust defrost settings In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be used to avoid frost.
-
Page 11: Care Guide
Care Guide In general, always unplug system or disconnect power while doing care. 1. Condenser Water Line Cleaning • To clear any sediment that may accumulate, the water regulating valve may be manually flushed. • Insert screwdrivers under both sides of the valve spring guide and lift upwards to flush. -
Page 12: User' Troubleshooting - -11
User’s Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive. Complaint Possible Causes Response 1. Unit not running Power cord not plugged Check power cord No power from supply Check receptacle and fuses Incorrect or loose wirings Check all wirings and connections... - Page 13 Dirty Condenser Clean condenser Improper condenser cooling Check for water flow Iced evaporator Defrost and reset temperature Refrigeration system restriction Call service Refrigerant leak Call service Undercharge or overcharge Call service Failed components Call service Improper cellar insulation & seal 7.
- Page 14 condensate c. Drain restricted c. Clean the drip tray and drain line Drain line restricted Check for drain 15. Condensate inside ducts Continually running not raise temperature setting stopping increase defrost Increase flow raise Too cold supply air temperature setting 16.
-
Page 15: Installer's Instructions
WINE~MATE split system is shipped as components and is ready for use only after a certified refrigeration technician has properly installed the system. Proper installation is critical. Vinotemp can only warrant the quality of the components. The installation and proper operation of the system must be warranted by the installer. - Page 16 Parts not included: Liquid line copper tubing Suction line copper tubing Water lines CAUTION Liquid and suction line locations may differ from that what is shown below, please check on the units for proper installations. To prepare rough-in, leave minimum 4” clearances for electrical NOTE wiring and refrigeration piping.
- Page 17 Fig. 4 WM-25~45SFCW Evaporator Unit Fig. 5 WM-250~450SCUR-WC Condensing Unit -16-...
- Page 18 Fig. 5 WM-Liquid Filter Fig. 6 WM-Liquid Indicator 2. Temperature Controller and Air Probe Location 1) The air probe shall be located in the wine cellar 5 ft above the floor or the air return area. 3. Evaporator Unit Location 1) The WM15~45SFCW evaporator units shall be installed for wall mount with the air supply on the top side and air return on the bottom side.
- Page 19 4. Condensing Unit Installation Condensing unit shall be elevated to avoid possible flooding and shaded from direct sun. The location shall not be subject to freezing temperatures. Water must be supplied to WM-250~450SCUR-WC at all times during operation, with the maximum outlet temperature of 120 °F. A sufficient amount of water must be provided for constant head pressure and proper cooling, but excessive water flow will cause the unit working inefficiently.
- Page 20 1) The piping starts from ➔ condensing unit’s receiver discharge valve ➔ liquid filter ➔ liquid indicator ➔ liquid line ➔ to evaporator unit’s liquid line connection (assembled with solenoid valve and expansion valve) ➔ suction line connection ➔ insulated suction line ➔ to condensing unit’s suction valve.
- Page 21 BACK POSITION FRONT POSITION MIDDLE POSITION Fig. 8 Base Valve Operation Back Position: Normal operation, manifold port is closed. Front Position: Storage operation, liquid or suction line connection is closed. Middle Position: Installation operation, all ports are open. NOTE The recommended initial charges are used for reference only, always use the superheat, subcooling and pressure readings to charge refrigerant properly.
- Page 22 Fig. 10 Water Regulating Valve 2) Checking pressure control settings Suction pressure setting: Cut out=5 psig; Cut in=25 psig; Differential=20 psig Head pressure setting: Cut out=230 psig; Cut in=150 psig; Differential=80 psig It is necessary to adjust the setting in the field to reach the correct cycle time. Fig.
- Page 23 Fig. 12 Fan Speed Control 4) The subcooling at the condensing unit shall be around 10°F. The charge may be complete when there are no more bubbles forming in the liquid indicator. 5) Head pressure is maintained constant but will vary with the water outlet temperature: 120 ~ 190 psig at the water outlet temperature 95 ~ 120 °F.
- Page 24 Complaint Possible Causes 1) Compressor may be bad 7) High suction pressure and low head pressure Zero superheat and zero subcooling 8) High suction pressure and low head 2) Expansion valve opened, too pressure much oil Low superheat and low subcooling 9) High suction pressure and high head 3) Overcharge pressure...
- Page 25 High superheat and high subcooling and suction lines connected wrong 13) Low suction pressure and high head 15) Liquid line restricted before pressure receiver High superheat and high subcooling 14) low to normal suction pressure and high 16) Condenser restricted head pressure Normal high...
-
Page 26: Electrical Wirings
11. Condensing Unit Troubleshooting Unit not running 1) Incorrect power supply 1) Check for proper voltage 2) Incorrect or loose wirings 2) Check wirings connections 3) Failed components 3) Check start relay, start capacitor, overload protector, compressor. 4) Low pressure switch shutting down the 4) Check for system restriction or low system refrigerant... - Page 27 Electrical Wiring Diagrams Hidden lines are the field wirings CAUTION Use minimum 14 gauge wires for power lines. If equipped with low ambient condition kit, use low ambient temperature wiring diagrams. A safety switch is always recommended for the condensing unit. Fig.
-
Page 28: Warranty
If the product is defective due to workmanship or materials, is removed within twelve months of the initial sale and is returned to VINOTEMP, in the original shipping carton, shipping prepaid, VINOTEMP will at its option, repair or replace the product free of charge. - Page 29 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
