Vinotemp WINEMATE WM1500 SSW Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Vinotemp Manuals
  4. Air Conditioner
  5. WINEMATE WM1500 SSW
  6. Installation & operation manual
Vinotemp WINEMATE WM1500 SSW Installation & Operation Manual

Vinotemp WINEMATE WM1500 SSW Installation & Operation Manual

Winemate split system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WINEMATE Split System
Installation, Operation & Care Manual
V
i
n
o
t
e
m
V
i
n
o
t
e
m
w
w
WM1500 SSW
WM2500 SSW
p
I
n
t
e
r
n
a
t
i
o
p
I
n
t
e
r
n
a
t
i
o
w
w
.
v
i
n
o
t
e
m
p
.
c
w
w
.
v
i
n
o
t
e
m
p
.
c
n
a
l
C
o
r
p
.
n
a
l
C
o
r
p
.
o
m
o
m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINEMATE WM1500 SSW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vinotemp WINEMATE WM1500 SSW

Summary of Contents for Vinotemp WINEMATE WM1500 SSW

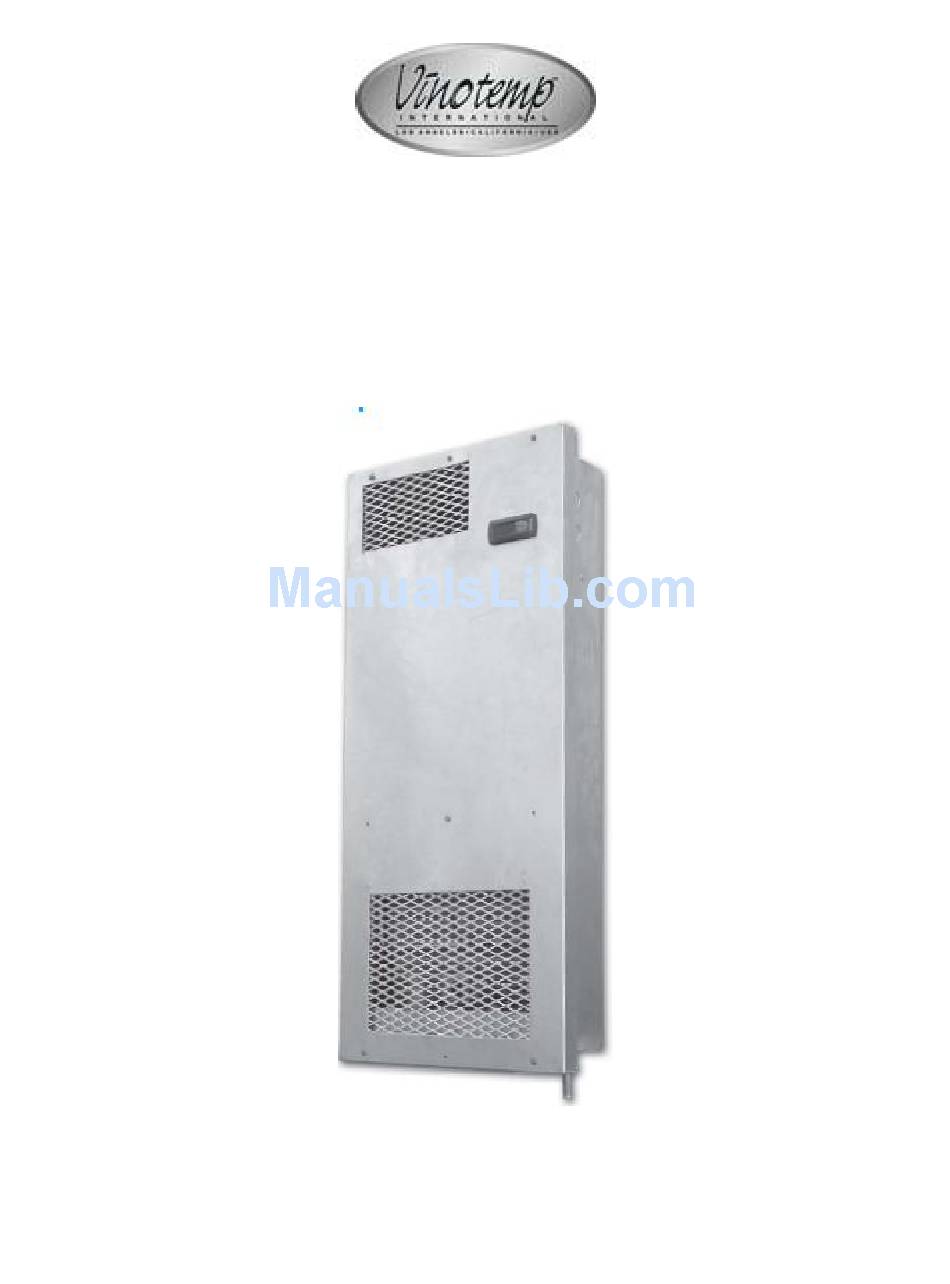

  • Page 1 WINEMATE Split System Installation, Operation & Care Manual WM1500 SSW WM2500 SSW...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information…...2 Feature Description…………………………….……………..3 Installation Instruction………………………………………..5 Use and Temperature Control……………………………….7 Care Guide……………………………………………………10 Troubleshooting……………………………………………..11 Customer Support……………………………………………13 Warranty……………………………………………………….14 - 1 -...

  • Page 3: Important Safety Information

    Important Safety Information • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 20 AMPCIRCUIT IS HIGHLY RECOMMENDED. - 2 -...

  • Page 4: Feature Description

    Feature Description • WineMate split cooling system is designed and used to provide a stable temperature between 52~62 environment. • The refrigerated space will maintain humidity of 50~70% RH even when the environment becomes dry and humid. • These temperatures and humilities are optimized for long term storage of wine, fur and tobacco.
  • Page 5 Evaporator Unit Condensing Unit - 4 -...

  • Page 6: Installation Instruction

    Installation Instruction Federal law requires that WINEMATE split cooling systems be installed by an EPA certified refrigeration technician. 1. Location • Place the condensing unit in a properly ventilated location. If it is not, heat exhausted by the condensing unit will build up and the cooling system will not operate properly.
  • Page 7 The condensing unit and unit cooler are connected by a liquid line and an insulated suction line that are supplied by the installer. These lines must be properly sized for the distance between the two units. After the units and the lines are installed, the system must be pressure tested.

  • Page 8: Use And Temperature Control

    Use & Temperature Control 1. Temperature Setting • Set the temperature at 55 • Set the temperature higher at very high ambient temperature. • On initial start-up, the time required to reach the desired temperature will vary, depending on the quantity of bottles, temperature setting and surrounding temperature.
  • Page 9 1.2 Front Panel Commands 2) Alarm Signals 2.1 Code Description 2.2 Alarm Recovery Probe alarms P1”, start a few seconds after the fault in the related probe; they automatically stop a few seconds after the probe restarts normal operation. Check connections before replacing the probe. Temperature alarms “HA”, “LA” automatically stop as soon as the temperature returns to normal value.
  • Page 10 1. Push the SET key for more than 3 seconds to change the Set point value; 2. The value of the set point will be displayed and the “°C” or “°F” LED starts blinking; 3. To change the Set value, push the o or n arrows within 10s. 4.

  • Page 11: Care Guide

    In general, always unplug system or disconnect power while doing care. 1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Unplug the system or disconnect power. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty.

  • Page 12: Troubleshooting

    This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes 1. Unit not running a. Power cord unplugged b. No power to unit c. Temperature setting high d.
  • Page 13 g. Low voltage h. Operating 60 Hz unit at 50Hz Sealed system problem Undercharge or overcharge 7. House circuit tripping a. Incorrect fuse or breaker b. Incorrect wirings c. Failed components 8. Noisy operation a. Mounting area not firm b. Loose parts c.

  • Page 14: Customer Support

    Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 13 -...

  • Page 15: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
  • Page 16 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.

This manual is also suitable for:

Winemate wm2500 ssw

Table of Contents
