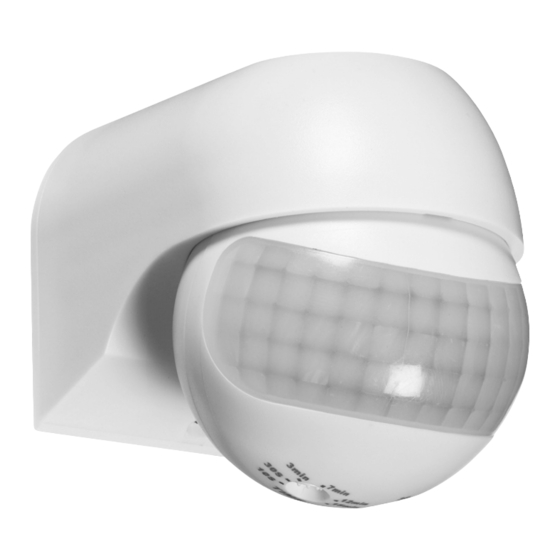

- Page 1 INSTALLATION & MAINTENANCE MANUAL OS0014 & OS0014B 230 V 50Hz...
- Page 2 GENERAL INSTRUCTIONS These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: OS0014, OS0014B SAFETY • Installation of this sensor should only be carried out by a qualified electrician or competent person to the latest Building and current IEE Wiring Regulations (BS7671) •...
- Page 3 the wiring diagram (Live (brown), Neutral (blue) and Switched Live (A)) (L) Live (brown) (N) Neutral (blue) (A) Red Load/ luminaire • Please see Fig 3 for sensor adjustments • Replace back cover Fig 2 • Switch on power supply and check for correct operation or adjustments SENSOR SETUP and check for correct operation SENSOR SETUP Time Lux SENSOR SETUP Min 10sec Max 15min Time Lux 3lx...
- Page 4 If this product should fail within its warranty period it should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected.
- Page 5 ML Accessories Limited LU5 5TA SBOCT16_V2 www.mlaccessories.co.uk...
