Side connections

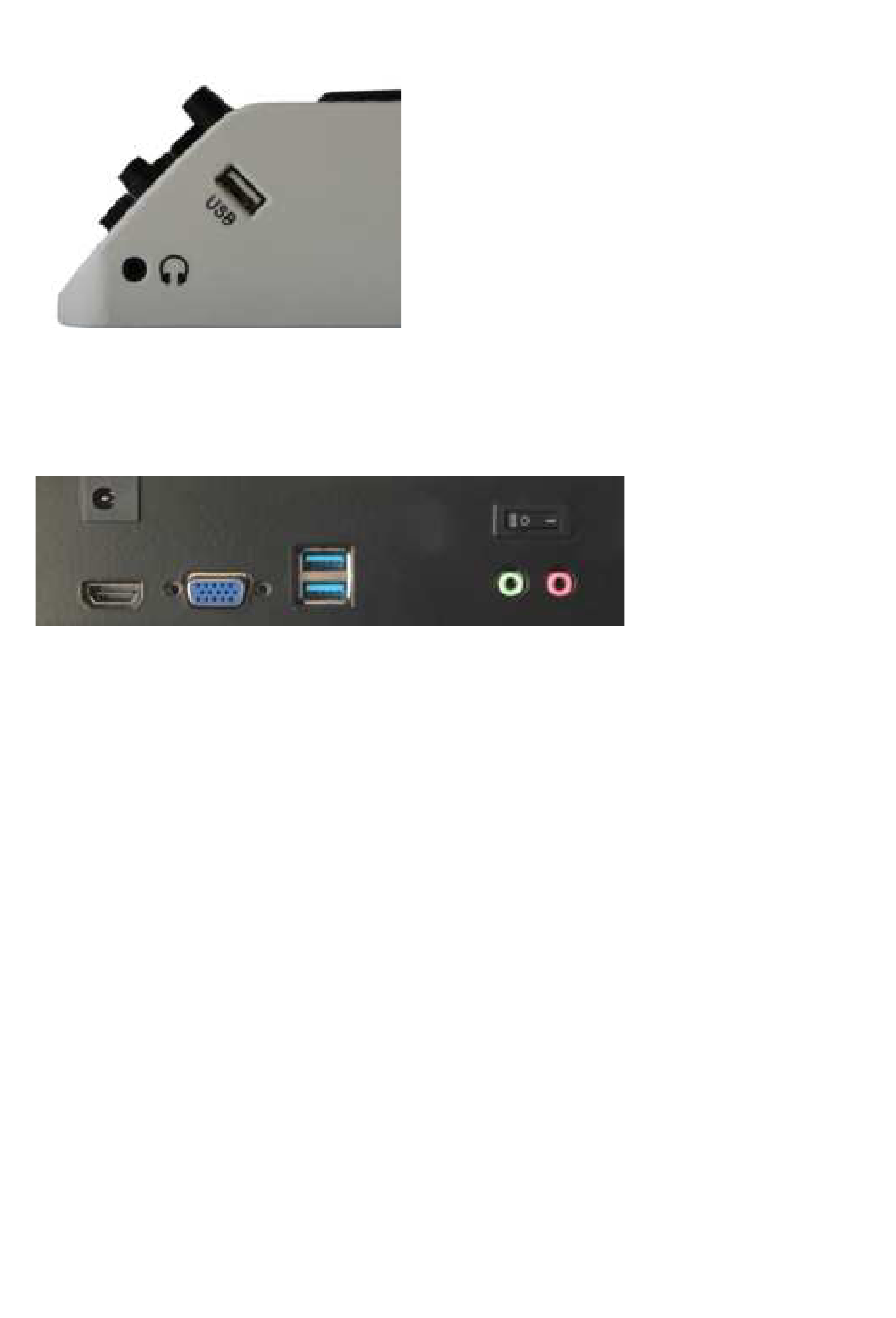

Figure 3: Right side view
At the front right side there is a rectangular slotted hole with a USB2 connection. The
headphone connection is located at the lower right side and is detected as a round hole.

Rear connections

Figure 4: Rear view
The power adapter input is located at the upper left side and is detected as a rectangular
box with a small hole to connect the power adapter output plug.
Below the power plug is a HDMI connection for an external monitor. To the right of the HDMI
connector is a VGA connector. While it is present on the board, it has no function and hence
cannot be used to connect a monitor to it. In the middle are 2 additional USB connections.
These could be used for a USB mouse to control the font size when using a VGA or LCD
monitor.
At the lower right side there are 2 round connections. At the left is the green audio line-
output. Use this line-output for external audio equipment only, do not use the headphone
with this connector. The pink connection has no function, it is part of the integrated PC
board and is reserved for possible future upgrades.
At the upper right side, above the two audio outputs, there is a switch to turn the LED lights
next to the camera on or off. This way, the lights can be turned off to reduce reflections for
better text recognition quality when reading glossy paper.
