Summary of Contents for Rehan i-Reader 2

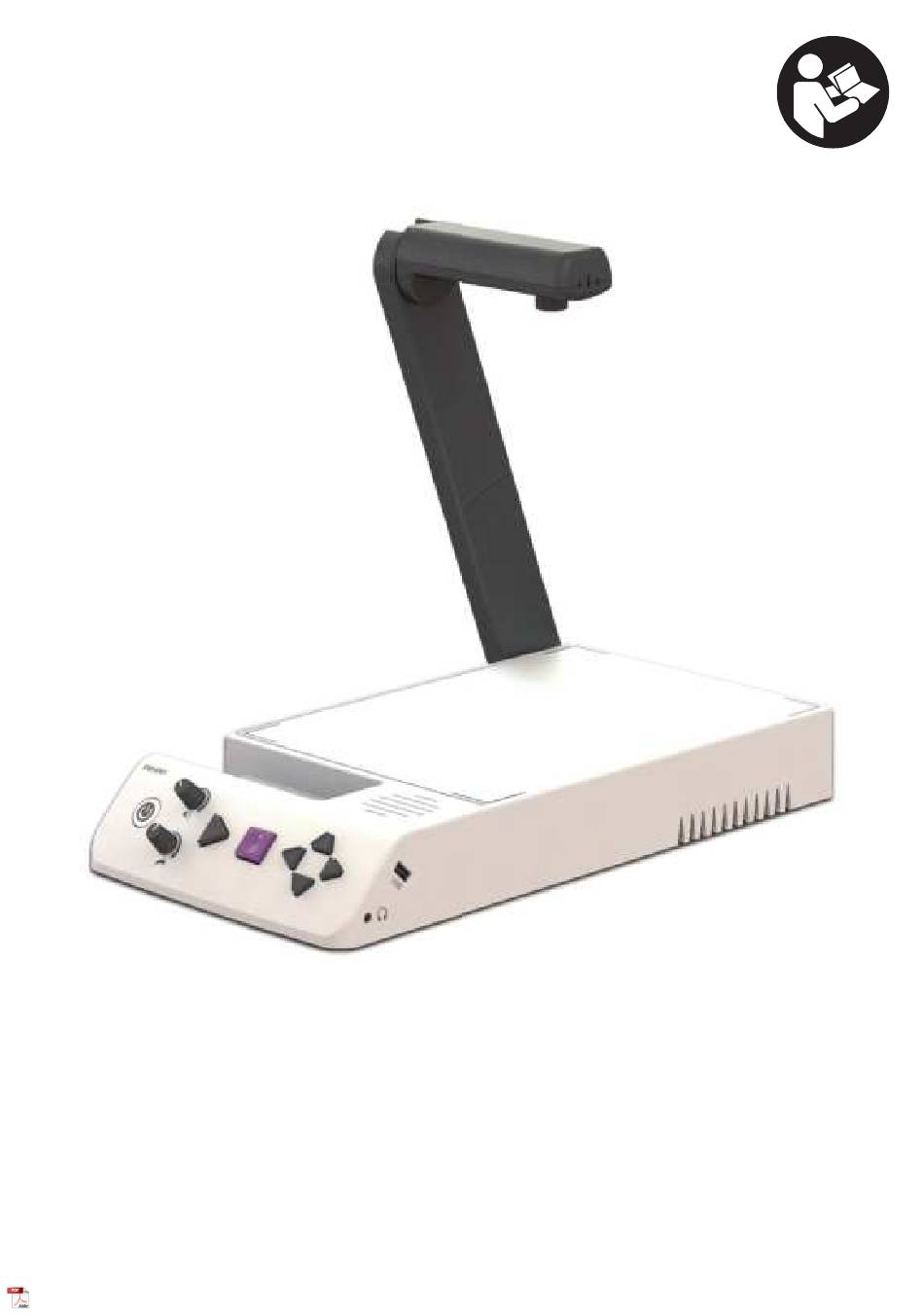

- Page 1 2 USER MANUAL...
-
Page 2: Table Of Contents
Read this manual carefully before using the i-Reader 2. Keep the user manual for future reference. Table of contents 1 Foreword........................4 2 Intended purpose and patient population ..............4 3 Package contents......................4 4 Safety ..........................5 5 Overview and description .................... 6 Device overview ...................... - Page 3 19 Supplier information ....................18 20 Manufacturer information................... 18 This document concerns the original general user manual, has been prepared by and is commissioned by Rehan Electronics Ltd. The i-Reader 2 product name is a trademark of Rehan Electronics Ltd. i-Reader 2...
-
Page 4: Foreword

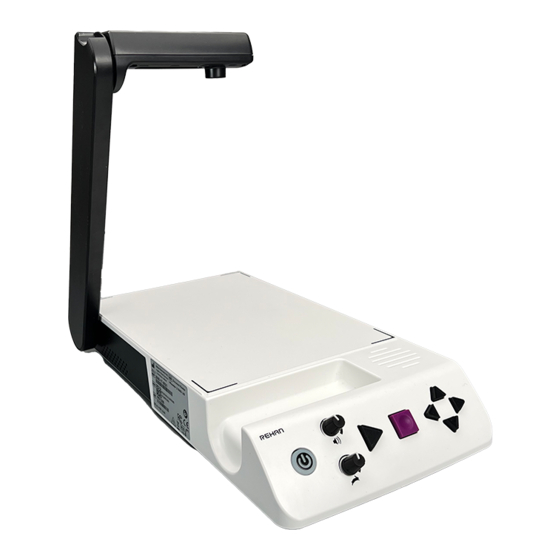

The i-Reader 2 is a text-to-speech device incorporating many languages with selectable male and female voices. The i-Reader 2 comes with a built-in battery as standard, so you can use it on the go as easily as you use it at home. -
Page 5: Safety
40 °C / 41°F and 104°F. • The i-Reader 2 requires little to no maintenance. If you want to clean the outside of the device, only use a soft dry cloth. Never use water, alcohol, acetone or other cleaning agents . Cleaning can only be done when the adapter is unplugged. -
Page 6: Overview And Description
Figure 2: Front view All user controls are positioned at the front of the device. The functions of these buttons vary as a result of the mode the device is in. Read this manual for the functionality of the user controls. i-Reader 2... -
Page 7: Side Connections
At the upper right side, above the two audio outputs, there is a switch to turn the LED lights next to the camera on or off. This way, the lights can be turned off to reduce reflections for better text recognition quality when reading glossy paper. i-Reader 2... -
Page 8: Rechargeable Battery
ON/OFF button until a 4-tone sound is audible. The integrated battery will be automatically charged. The i-Reader 2 will start, and a ticking clock signal is audible. When the device is ready it will read aloud the first-use instructions and safety notice. -
Page 9: General Controls
General controls Turning the i-Reader 2 on and off At the left of the control panel is the ON/OFF button. Press the button until an audible tone is heard. This will switch the device on or off. Change the volume To the right of the on/off button you will find 2 turn knobs. -
Page 10: Start Mode
Start mode The Start mode is the mode the i-Reader 2 starts in when you turn the device on. In this mode you can have the following controls: Scan document Switch on the device and put the camera in reading position. Align your document with the document placement markers. -
Page 11: Read Aloud Mode
Read aloud mode When a document is scanned, the i-Reader 2 will process the text, text zones and language of the document. Once ready, it will start reading the text aloud. Pause/Play reading Press the PLAY button to pause/play reading the current document aloud. -
Page 12: Document Browser
Document browser The i-Reader 2 has the capability to capture documents and store them on the internal memory. It is possible to store up to 999 or 1Gb of documents. Each document gets a unique name with number assigned when they are saved to the internal storage. -
Page 13: External Media
Exporting document to external media Documents that are scanned by the i-Reader 2 are saved as .vdf files. This file type is proprietary and can’t be opened on a device other than an i-Reader 2. The i-Reader 2 can export documents as this .vdf file type or as a .txt file. -
Page 14: Menu
Battery saver In order to save energy, the i-Reader 2 switches off after 30 minutes of inactivity. To turn the Battery saver off and make sure the device stays on indefinitely, press the ON/OFF and PLAY buttons simultaneously. -
Page 15: Transport
ON/OFF button pressed for 10 seconds to turn the device off. If you try to turn the i-Reader 2 on and the ON/OFF button lights up RED for 2 seconds or does not light up at all, the battery is empty. Connect the adapter and let the device charge for a few minutes before turning the i-Reader 2 on again. -
Page 16: Warranty
This product is covered by the warranty provisions of your supplier. For more information about these provisions, contact your supplier. Regulations The i-Reader 2 complies with CE according to the following guidelines: • Class 1 medical device, no essential performance. -
Page 17: Technical Information
Technical information Specifications Product name: i-Reader 2 Dimensions (l × w × h): 42.5 × 24.5 × 7 cm 16.73 × 9.65 × 2.76 inch Weight: 2950 grams 6.5 lbs Battery: Internal Li-ion battery 14.8V, min. 5100mAh Regulated 12V output... -
Page 18: Supplier Information
Rehan Electronics Ltd. Aughrim Road, Carnew Country Wicklow, Y14 NY60 Republic of Ireland Phone: +353 (0) 53 9426742 Fax: +353 (0) 53 9426051 technical@rehanelectronics.ie www.rehanelectronics.com...
