5
Overview and description
Device overview

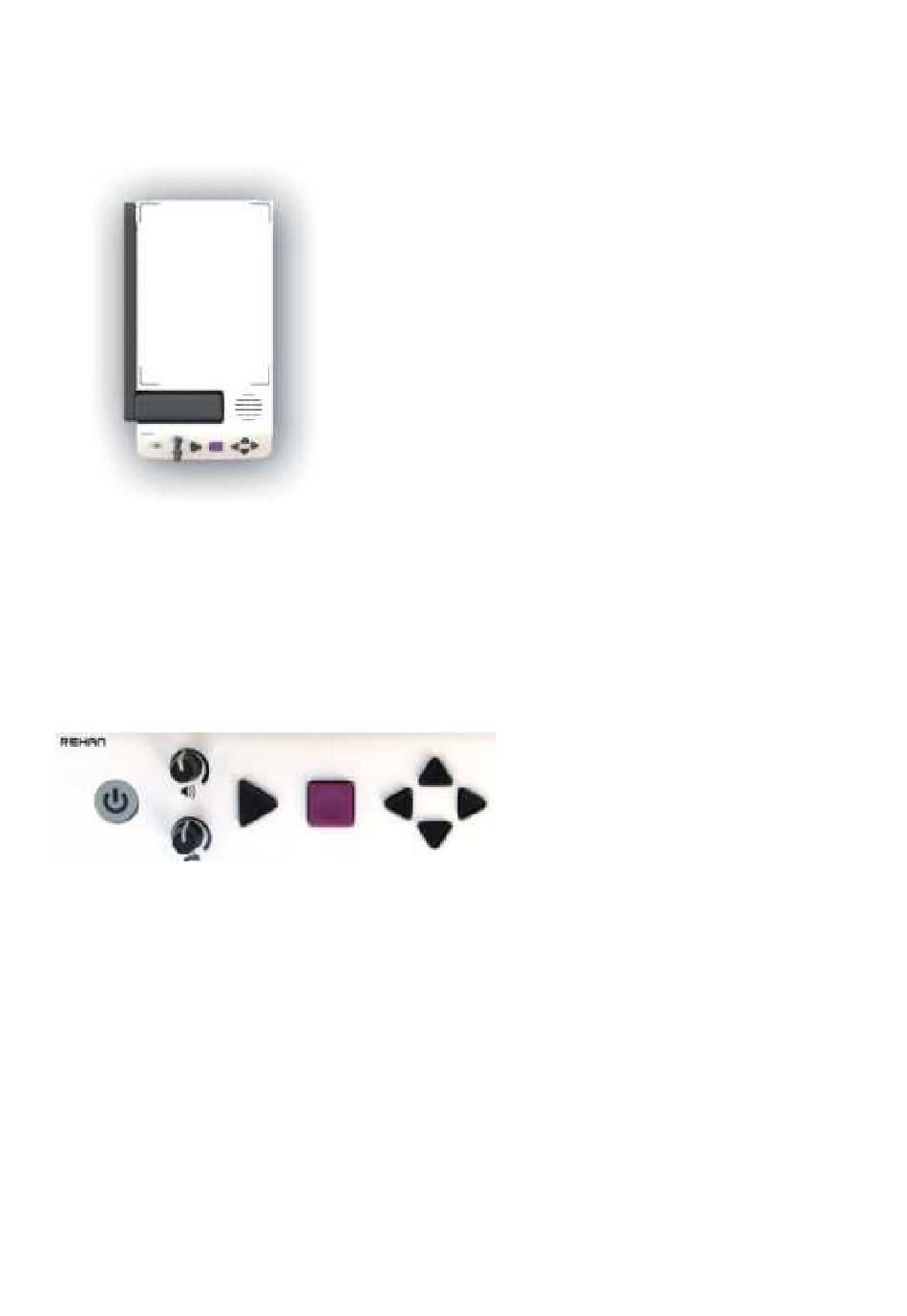

Figure 1: Top view
The scanning camera with integrated LED lights is positioned into the device when it is not
in use or in transport position. The camera arm is located at the left side of the device and
must be lifted to bring it into reading position. The speaker is located at the bottom right
side. There are tactile document placement markers at the top left side and on the bottom
side of the camera area to align your document.
Control panel
Figure 2: Front view
All user controls are positioned at the front of the device. The functions of these buttons
vary as a result of the mode the device is in. Read this manual for the functionality of the
user controls.
6
