Esatto EHPD80 User Manual

Esatto EHPD80 User Manual

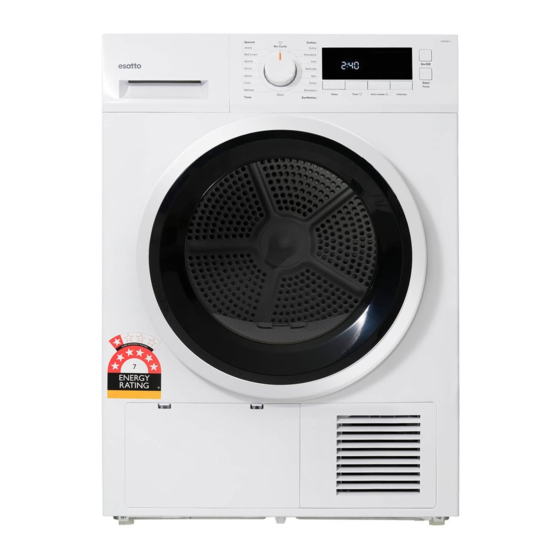

8kg heat pump
Hide thumbs Also See for EHPD80:

Advertisement

Product:
8kg Heat Pump Dryer
everything you
need is in this
user manual
Version:
V1.1 0222
Model Code/s:
EHPD80
Online:
esatto.house

Advertisement

loading
Need help?

Need help?

Do you have a question about the EHPD80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Esatto EHPD80

  • Page 1 Product: Model Code/s: 8kg Heat Pump Dryer EHPD80 everything you need is in this user manual Version: Online: V1.1 0222 esatto.house...
  • Page 2 User Manual everything you need...
  • Page 3: Table Of Contents

    Contents Page 5 Page 6 Welcome Safety Warnings Page 8 Page 9 Your Dryer Installation Page 10 Page 11 Control Panel Operating Instructions Page 15 Page 17 Cleaning & Technical Maintenance Specifications Page 18 Page 20 Troubleshooting Purchase Details...
  • Page 4 User Manual THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK...
  • Page 5 Australia 3121 to ensure optimum performance. — Telephone Again, thank you for choosing an esatto appliance and we look forward to being of 1300 11 4357 service to you. Kind Regards, The Residentia Team...
  • Page 6 User Manual Safety Instructions DRYER CARE SYMBOLS IMPORTANT! Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain CAUTION: RISK OF FIRE! the symbols as follows: To prevent any damages to your and others’ life or property, you have to follow the safety notes.
  • Page 7 EXPLOSION & FIRE DANGER Children of less than 3 years should be kept away unless continuously supervised. 26. If the appliance • Please do not dry the clothes with some flammable appear high temperature abnormally, please draw substances such as the coal oil, alcohol or there will be the mail plug immediately.
  • Page 8: Your Dryer

    INSTALLATION Product Description INSTALLATION User Manual Power cord Product Description Top board Your Dryer Power cord Product Description Top board Water container Control panel Power Cord Power cord Water container Top board Top Panel Drum Control panel Control Panel Door Drum Door filter Water container...
  • Page 9 Installation IMPORTANT! If the power cord is damaged, it must be replaced by Residentia Group or one of it’s authorised service representatives. Please contact 1300 11 HELP (4357) and ensure the appliance is completely disconnected from the power supply.
  • Page 10: Control Panel

    User Manual Control Panel YOUR CONTROL PANEL EHPD80 Cotton My Cycle Bed Linen Sports Iron Shirts Cool St rt P use Refresh Wool Time Synthetics Delay Time Intensity On/Off 2. Start/Pause 3. Additional Function Buttons OPERATION 4. LED Display Screen 5.
  • Page 11: Operating Instructions

    Operating Instructions BEFORE FIRST USE Leave it to stand for 2 hours after transporting. Before first use, please use some soft fabric to clean the inside drum. Put some clean rags into the drum 2. Plug the power, press On/Off 3.
  • Page 12 Quick Start Quick Start Quick Start Quick Start OPERATION OPERATION Note! Note! Note! Note! User Manual OPERATION OPERATION OPERATION OPERATION OPERATION OPERATION Before using, make sure the tumble dryer is installed correctly. Before using, make sure the tumble dryer is installed correctly. Before using, make sure the tumble dryer is installed correctly.
  • Page 13 USING THE ADDITIONAL FUNCTIONS DELAY FUNCTION This function is used for delaying the start of the drying program up to 24 hours. When the delayed program starts, the time starts to countdown on the display and the delay icon blinks.
  • Page 14 User Manual Operating Instructions (Continued) DRYING PROGRAMS TABLE PROGRAM MAX LOAD RECOMMENDED USE/ PROPERTIES DELAY TIME Extra For single or multi layered cotton laundry to be dried completely for immediate storage. Cotton Standard 8.0kg Iron For single layered cotton laundry to remain damp for ironing. For delicate laundry that is suitable for drying or laundry Delicate 1.0kg...
  • Page 15 MAINTENANCE NANCE esatto.house Cleaning and Care Empty the water container and Care Cleaning & Maintenance MAINTENANCE 1. Pull out and hold the water container ater container with two hands. ld the water container 2. Tilt the water container, pour out the CLEANING AND CARE condensate water into the basin.
  • Page 16 User Manual Cleaning & Maintenance (Continued) MAINTENANCE WARNING! • Disconnect the power cord before cleaning. • Clean the dryer with a clean damp cloth only. • Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts. •...
  • Page 17: Technical Specifications

    Technical Specifications Below outlines the technical specifications for your esatto Heat Pump Dryer. EHPD80 Model Size 595W � 650D � 845H (mm) 49kg Net Weight 800W Rated Input Power R290/150g Refrigerant/Amount 8.0kg Rated Capacity 220–240V~ Rated Voltage 50Hz Rated Frequency Note: The rated capacity is the maximum capacity to be dried at one time.
  • Page 18 User Manual Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: • Switch off all controls. • Switch the washing machine off at the power point or at the fuse box. • Call the Residentia Support Team on 1300 11 HELP (4357). Some minor faults can be fixed by referring to the instructions given in the Troubleshooting section below.
  • Page 19 ERROR MESSAGES AND SOLUTIONS WARNING! Never dismantle the dryer. INDICATION REASON SOLUTION "E32" displays Humidity sensor error. "E33" displays Temperature sensor error. Please contact the Residentia Group support "E82" displays PCB communication error. term on 1300 11 HELP (4357).
  • Page 20: Purchase Details

    User Manual Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO.
  • Page 21 Attach your receipt to this page...
  • Page 22 User Manual Warranty Information AUSTRALIA WARRANTY TERMS & CONDITIONS IN THIS WARRANTY LAUNDRY APPLIANCES ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the ‘ACL’...
  • Page 23 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area,...
  • Page 24 This page is intentionally left blank everything you need A RESIDENTIA GROUP INITIATIVE...
