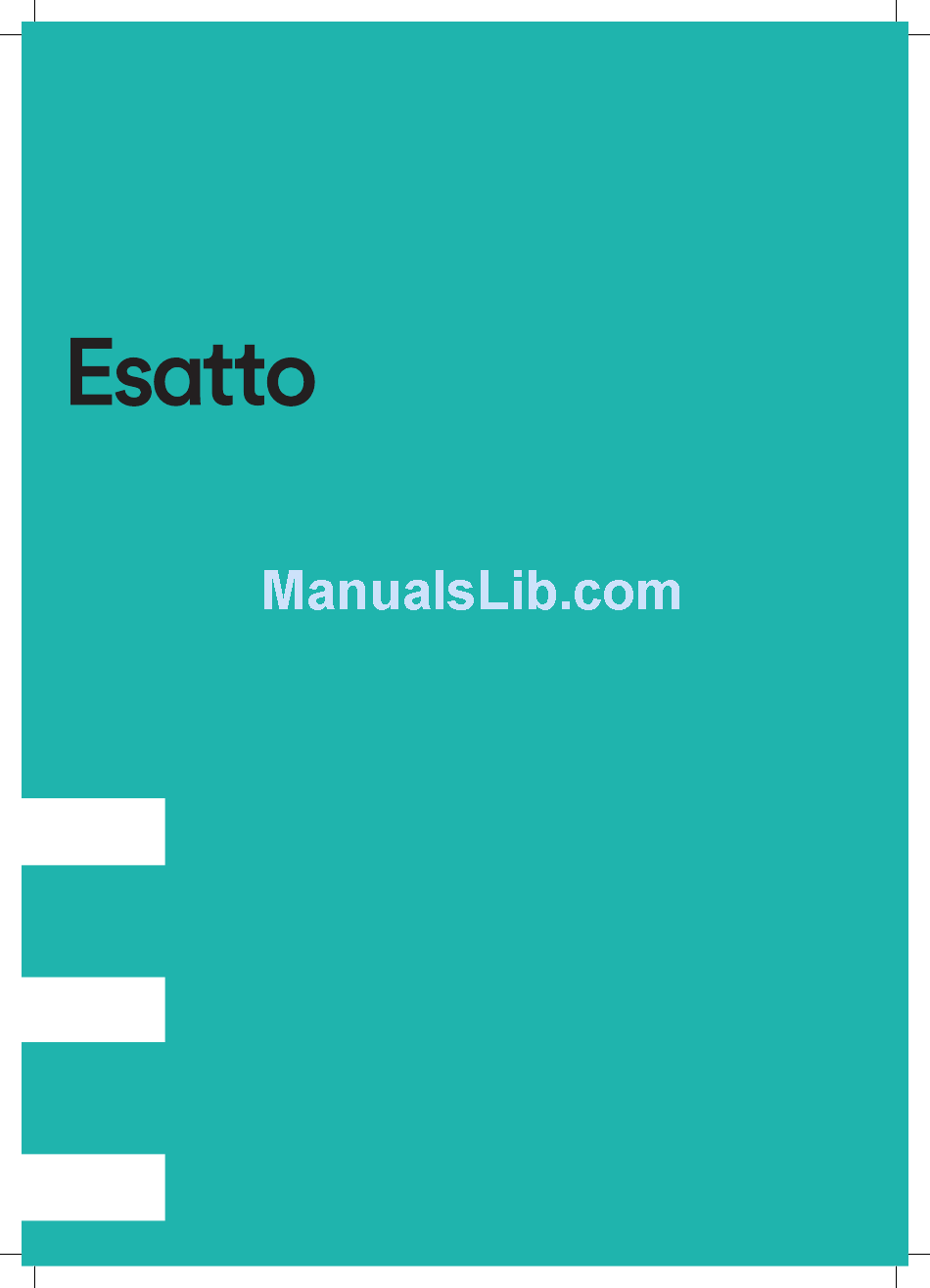

- Page 1 Product: Model Code/s: Condenser Dryer 7kg ECD7 Heat Pump Dryer 7kg EHPD7 User Manual Exactly what you need Online: esatto.house...
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an Esatto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team Postage.
-
Page 3: Table Of Contents
Contents Welcome Safety Installation Instructions Your Esatto Quick Start Dryer Guide Controls Operating Your Dryer Program Table Cleaning & Maintenance Troubleshooting Technical Data Purchase Details Warranty Information... -
Page 4: Safety Instructions
User Manual Safety Instructions DRY CARE SYMBOLS IMPORTANT! Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain To prevent any damages to your and others’ life or property, the symbols as follows: you have to follow the safety notes. - Page 5 27. The power wire shall be met IEC and must be able to substances such as the coal oil, alcohol or there will be the withstand the following current: explosion. → ECD7 → EHPD7 To ensure your and your family’s safety, please make improvement immediately if any power use at your...
- Page 6 User Manual Installation TRANSPORT ADVICE Move cautiously. Do not grasp any salient parts of machine. Before drying, thoroughly spin the laundry in washing The machine door can not be used as the handle for delivery. machine. High spin speed can reduce the drying time If the dryer can’t be transported erect, the dryer could be and save energy consumption.
-
Page 7: Your Esatto Dryer
Part description Part desc Your Esatto Dryer Cata Part Description Step 3: put t Control panel Container Door Power Cord Drum Quick start Lint Filter Air inlet Handle Maintenance cover Accessories The following parts are optional for specific models. - Page 8 User Manual Part description Catalogue Step 3: put the hose holder on the washing basin or any other sink. Part description Catalogue Step 3: put the hose holder on the washing basin or any other sink. 200cm Quick start 200cm 1.Check if the container and filters have been cleaned up Quick Start Guide...
-
Page 9: Controls
Controls ➀ ➁ ➂ ➃ ➄ ➅ PROGRAM SELECTION KNOB FUNCTION LED: → 3H,6H,9H,12H → CHILD LOCK → FILTER → FULL → ANTI-CREASE LED SPECIALTY FUNCTION BUTTONS: → DELAY → ANTI-CREASE → CHILD LOCK ON/OFF BUTTON START/PAUSE BUTTON WORKING STATE LED... - Page 10 User Manual Operating Your Dryer SELECTING THE PROGRAM SPECIALTY DRYING FUNCTION Press the On/Off button ,when the working state LED DELAY FUNCTION brighten up, rotate the program knob to select the desired program. Load your laundry and make sure the machine door is Select the Delay, or Anti-Crease functions for additional closed.
-
Page 11: Program Table
Program Table gramme table Weight Programme Application/Properties (max) 5.0kg To dry unknown material clothes automatically. Auto Auto For cottons and coloureds made of cotton or linen. 7.0kg Extra To dry cotton pieces of clothing. Drying level: extra dry. Cotton 7.0kg... - Page 12 User Manual Cleaning and routine maintenance Cleaning & Maintenance Cleaning a Empty the water container Wash air con -Leave the dry 1. Hold and pull out the water container -Residual wat with two hands; cloth under th 2. Tilt the water container, pour out the 1.Unlock th condensed water into basin;...
- Page 13 Cleaning and routine maintenance Wash air condenser (Only MDS70-C05/B08-AU(2)) (Only ECD7) -Leave the dryer to cool down. -Residual water may escape, place an absorbent cloth under the maintenance cover. 1.Unlock the maintenance cover. 2.Completely open maintenace cover. 3.Screw both locking levers towardas each other.
-
Page 14: Troubleshooting
User Manual MAINTENANCE Troubleshooting Malfunction display and solutions Preca Problem Solution Please read the issues below carefully and try all relevant steps. •The mains plug is inserted. If none of this helps, please contact us on 1300 11 4357 for further •Working state LED •Check the programme selected. -
Page 15: Technical Data
MAINTENANCE Technical Data Technical Specifications Model EHPD7 MDS70-CH05/B08-AU(6) ECD7 MDS70-C05/B08-AU(2) Parameter Dimension(L*W*H) 622*595*845(mm) 622*595*845(mm) +5°c ~ +35°c +5°c ~ +35°c Ambient temperature Rated input power 850W 2000W Rated voltage 220-240V~ 220-240V~ Rated frequency 50Hz 50Hz Refrigerant R134a Weight of product... - Page 16 User Manual Attach your receipt to this page...
- Page 17 Purchase Details For future reference, please record the following information The rating plate of your hob is located on the underneath which can be found on the rating plate and the date of of the appliance. Therefore please fit the duplicate data purchase which can be found on your sales invoice.
-
Page 18: Warranty Information
User Manual Warranty Information WARRANTY TERMS & CONDITIONS IN THIS WARRANTY WASHING MACHINES & CLOTHES DRYERS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the ‘ACL’... - Page 19 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area,...
