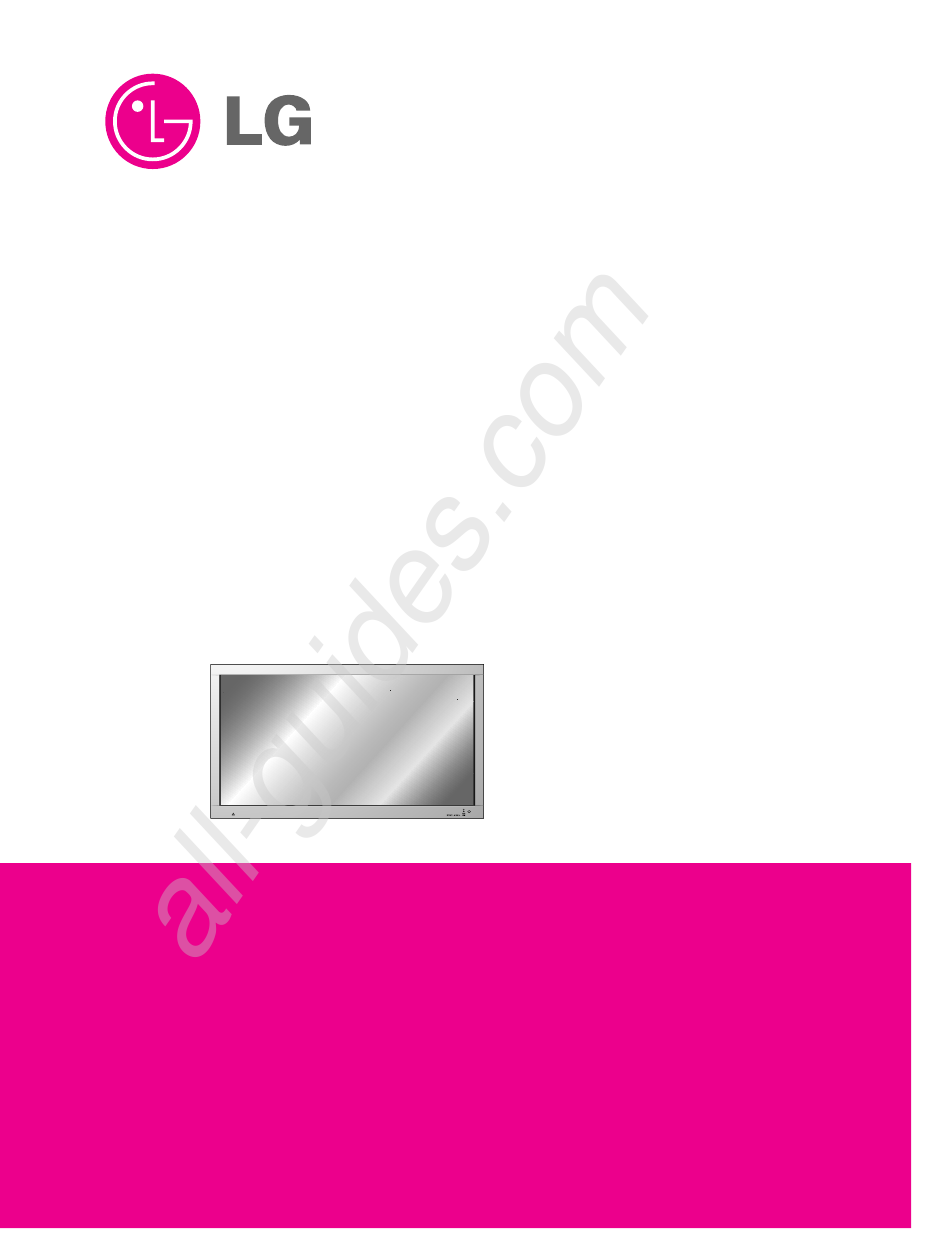

PLASMA MONITOR
SERVICE MANUAL
CHASSIS : NP-00KB
MODEL : MT/MZ-60PZ12/B
MODEL :
MT/MZ-60PZ14/B
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
