OPERATOR'S MANUAL
PORTABLE INVERTER GENERATOR
MODEL NUMBER
W01785
Rev Level:00
Record product information to reference when ordering parts or
obtaining warranty coverage.
P/N:317745454 Rev:00

Advertisement

loading
Need help?

Need help?

Do you have a question about the W01785 and is the answer not in the manual?

Questions and answers

Related Manuals for Firman W01785

Summary of Contents for Firman W01785

  • Page 1 OPERATOR’S MANUAL PORTABLE INVERTER GENERATOR MODEL NUMBER W01785 Rev Level:00 Record product information to reference when ordering parts or obtaining warranty coverage. P/N:317745454 Rev:00...
  • Page 2 NOTE: The FIRMAN W01785 inverter generator has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    Service - Warranty..............35 INTRODUCTION Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered generator set designed and tested to give you years of satisfactory service. This generator is designed to run only on unleaded gasoline.

  • Page 4: Introduction

    INTRODUCTION SIGNAL WORDS DANGER WARNING CAUTION NOTICE Indicates a hazard Indicates a hazard Indicates information Indicates a hazard which, if not avoided, considered Important, which, if not avoided, which, if not avoided, could result in minor or but not hazard-related. will result in death or could result in death moderate injury.
  • Page 5 NOTICE If you have questions about intended use, contact FIRMAN customer service. This inverter generator is designed to be used only with FIRMAN authorized parts. System Ground The generator neutral is floating, which means that the AC stator winding is isolated from the grounding fastener and the AC receptacle ground pins.
  • Page 6 INTRODUCTION 1. Only use grounded cords marked for outdoor use rated for your loads. To provide power using extension cords Minimum Gauge, Outdoor Rated Total Amperage Up to 50 FT (15m) Up to 13A Up to 15A Up to 20A Up to 30A 2.

  • Page 7: Features And Controls

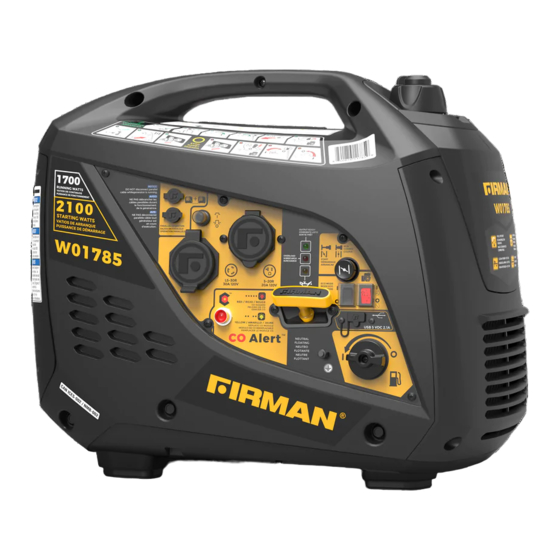

    FEATURES AND CONTROLS CONTROLS AND FEATURES Generator ⑫ ② ⑦ ③ ① ⑨ ⑩ ⑪ ⑤ ④ ⑧ ⑥ Carrying Handle 2- Fuel Lever Vent – Turn this valve to the “On” position to supply air to the tank. 3- Fuel Cap 4- Control Panel 5- Recoil Starter 6- Muffler/Spark Arrester...
  • Page 8 FEATURES AND CONTROLS ① ④ English Customer Service: 1-844-FIRMAN1...
  • Page 9 FEATURES AND CONTROLS English Customer Service: 1-844-FIRMAN1...
  • Page 10 FEATURES AND CONTROLS English Customer Service: 1-844-FIRMAN1...
  • Page 11 A maximum of 14.2 Amps current may be drawn from this receptacle. 3. Outlet Cover - Protect the receptacles from dust and debris. 4. Parallel Operation Outlets - These outlets are used for connecting two FIRMAN inverter generators for parallel operation. A FIRMAN parallel kit(optional equipment) is required for parallel operation.
  • Page 12 FEATURES AND CONTROLS 10. Economy Control Switch - The Economy Control switch can be activated in order to minimize fuel consumption and noise while operating the unit during times of reduced electrical output, allowing the engine speed to idle during periods of non-use. The engine speed returns to normal when an electrical load is connected.

  • Page 13: Operation

    OPERATION 1.Location DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas. •...
  • Page 14 OPERATION Reduce Risk of Fire WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury. • Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in.
  • Page 15 2. Oil and Gasoline Add Engine Oil We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-quality detergent oils (API SJ or higher) are acceptable. Do not use special additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the outdoor temperature range expected.
  • Page 16 Make sure the sump is completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected. Contact Firman customer service. Add Gasoline WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire resulting in death or serious injury.
  • Page 17 High altitude may cause hard starting, increased fuel consumption and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support.
  • Page 18 OPERATION 3.Starting the Generator 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place. 2. Move portable generator outdoors to safe operating location at least 20 ft. (6m) from any occupied spaces.
  • Page 19 OPERATION 7. Flip the engine switch to the "ON"(l) position. 8. Pull the starter cord slowly until resistance is felt and then pull rapidly to start the engine. 9. Push the choke knob to the “RUN” position. 10. Allow portable generator to run at no load for a few minutes to stabilize before plugging in any electrical devices.
  • Page 20 OPERATION 4. Connecting Electrical Loads This portable generator has been pretested and adjusted to handle its full capacity. The voltage is regulated using an automatic voltage regulator (AVR) . Readjusting the AVR will void warranty. WARNING! Generator voltage could cause electrical shock or burn resulting in death or serious injury.
  • Page 21 Call emergency services. You may have carbon monoxide poisoning. CO Alert fault occured*. Yellow See FIRMAN authorized service dealer. •• •• *Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning properly.
  • Page 22 OPERATION 5. Stopping the generator 1. Turn off and remove all electrical loads. Never stop the generator with electrical devices plugged in and turned on. Never stop the engine by moving the choke to the start position. Let the generator run at no-load for one minute to stabilize internal temperatures of the engine and generator.
  • Page 23 Any two FIRMAN inverter generators with parallel ports, including two FIRMAN inverters model W01785 can be paralleled to increase the total available electrical power to 3100 Watts. A FIRMAN Parallel kit (not included) is required for parallel operation. For Kit availability, call customer Service at 1-844-347-6261 or visit: www.firmanpowerequipment.com.

  • Page 24: Maintenance - Storage

    Maintenance - Storage MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every ITEM NOTES 100 hours operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. Check oil level. √ Engine Oil Replace.
  • Page 25 (g) Reinstall the maintenance cover and tighten the cover screws. (h) Dispose of used oil at an approved waste management facility. NOTICE We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high- quality detergent oils (API SJ or higher) are acceptable. See Oil and Gasoline...
  • Page 26 Maintenance - Storage Air Filter Maintenance (a) Remove the air cleaner cover and locate the air filter plastic cover. (b) Carefully remove foam air filter element and wash it with liquid detergent and water only. Squeeze dry in a clean cloth. Air Cleaner Cover Foam...
  • Page 27 Maintenance - Storage (d) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if damaged. (e) Adjust the electrode gap to 0.028 - 0.031 in. (0.7 - 0.8 mm). (f) Seat spark plug in position and thread by hand to prevent cross threading. (g) Tighten plug with provided wrench and put the spark plug boot back on spark plug.
  • Page 28 3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. 4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use only FIRMAN original equipment replacement parts. 5. Position the spark arrester in the muffler and attach with the screws.
  • Page 29 Maintenance - Storage Long Term Storage It is important to prevent gum deposits from forming in essential fuel system components such as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

  • Page 30: Troubleshooting- Specifications

    3. Low oil level. generator on level surface. 1. Contact authorized FIRMAN Engine shuts down and 1. CO system fault yellow CO fault light blinking. service facility. For all other issues, contact authorized dealer or Firman customer service. English Customer Service: 1-844-FIRMAN1...
  • Page 31 Troubleshooting – Specifications SPECIFICATIONS Model W01785 Starting Watts 2100 1700 Running Watts* Rated AC Voltage 120V Rated Fequency 60Hz Phase Single Voltage Regulator Digital Total Harmonic Distortion(THD) <3% Power Factor Alternator Type Magneto Inductor Engine FIRMAN Engine Type Single Cylinder, 4-Stroke OHV Air Cooled...
  • Page 32 PARTS DIAGRAM AND PART LIST W01785 PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...
  • Page 33 80cc ENGINE PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...

  • Page 34: Parts Diagrams - Parts Lists - Wiring Diagram

    Parts Diagrams - Parts Lists - Wiring Diagram W01785 Portable Generator Qty. Qty. NO. Part Number Description NO. Part Number Description 316465501 Engine Subassembly 317713525 Left Side Cover Assy 317723586 Oil Nozzle 317723526 Plug II 317713515 Screw M6×15 317723527 PlugI...
  • Page 35 Parts Diagrams - Parts Lists - Wiring Diagram FIRMAN 80cc Engine Qty. Qty. NO. Part Number Description NO. Part Number Description 317723500 Bolt M6×12 316715512 Air Shroud,cylinder 316715529 Guide,rope 316715511 Breather Tube 393713040 316715528 Case Comp.,Recoil Starter Clamping 317723555 316725508...
  • Page 36 Parts Diagrams - Parts Lists - Wiring Diagram Wiring Diagram English Customer Service: 1-844-FIRMAN1...

  • Page 37: Service - Warranty

    FIRMAN GENERATOR will register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase.
  • Page 38 Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 39 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 40 (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
  • Page 41 FIRMAN POWER EQUIPMENT 8716 W LUDLOW DR. SUITE #6 PEORIA, AZ 85381 All rights reserved. Any reprinting or unauthorized use 1-844-347-6261 without the written permission is expressly prohibited. WWW.FIRMANPOWEREQUIPMENT.COM P/N:317745454 Rev:00...
