Summary of Contents for Pyramis 3159

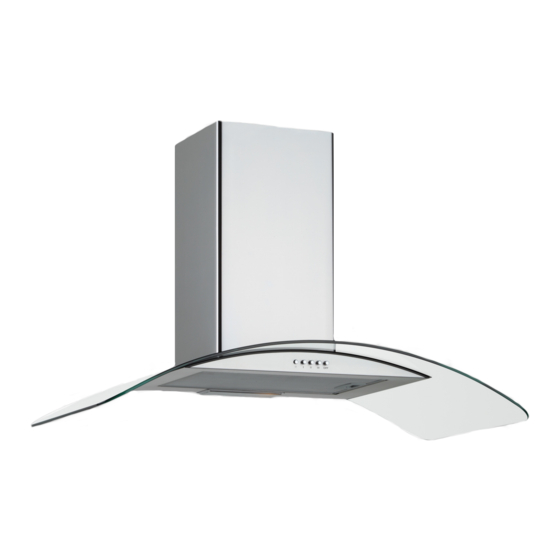

- Page 1 3159 HOOD USER GUIDE 3159 60 cm 3159 90 cm Read this manual prior to performing any task!
- Page 2 MANUFACTURER Merzifon OSB AMASYA, Silverline IMPORTER PUNTO INOX SRL VIA DEL COMMERCIO 586 ISOLA RIZZA 37050 IT 1, en_US 24.12.2018 3159 HOOD USER GUIDE...
-
Page 3: Table Of Contents
ASSEMBLY OF SHEET METAL FLUES........... 25 USE OF PRODUCT..................26 Using Push Button Product..............27 REPLACING THE LAMPS................. 28 17.1 Halogen Lamp Replacement............28 17.2 Plug Lamp Replacement..............28 AUTHORIZED SERVICE................30 TECHNICAL TABLE.................. 32 24.12.2018 3159 HOOD USER GUIDE... -
Page 4: Input
The figures in this guideline aim to vis- ually describe the actions. In these fig- ures only one model of the device is illustrated. However, all instructions or figures also represent other models. 24.12.2018 3159 HOOD USER GUIDE... -
Page 5: Technical Drawing
Technical Drawing Technical Drawing 24.12.2018 3159 HOOD USER GUIDE... -
Page 6: Warning And Safety Precautions
Filters not replaced in a cooker. In such cases, it might timely manner pose risk of fire due melt down and lead to fire. to accumulated grease deposits on Do not plug in the appliance before them. the installation. 24.12.2018 3159 HOOD USER GUIDE... - Page 7 It is because the hood could Since the packing materials could adversely affect the combustion, be dangerous, keep them away by discharging the ambient air. from children. 24.12.2018 3159 HOOD USER GUIDE...
-
Page 8: Lethal Risk, Danger Of Poisoning
1 24.12.2018 3159 HOOD USER GUIDE... - Page 9 LED lights are very bright and over 5kW (Wok) has the power may damage eyes (Risk group of two gas burners. 1). You must not look directly at running LED lights for longer than 100 seconds. 24.12.2018 3159 HOOD USER GUIDE...
- Page 10 NOTICE If the appliance is faulty or dam- ages, turn off the fuse or unplug the feeder cable of your appliance and call the authorized service. 24.12.2018 3159 HOOD USER GUIDE...
- Page 11 Never use aggressive and abrasive cleaning agents. There is a risk of damage due to condensate liquid backflow. Install the air exit canal with a small downward incli- nation (1° inclination) from the appli- ance. 24.12.2018 3159 HOOD USER GUIDE...
-
Page 12: Usage With And Without Carbon Filter
If exhaust air is discharged through the external wall, a tele- scopic wall safe must be used. 24.12.2018 3159 HOOD USER GUIDE... -
Page 13: Carbon Filter Replacement
Do not use the product without an Never wash the carbon filters. Keep oil filter. carbon filters away from children. 5.1 CARBON FILTER REPLACEMENT CARBON FILTER Fig. 5: CARBON FILTER The device you have bought is suitable for carbon-filter use. 24.12.2018 3159 HOOD USER GUIDE... -
Page 14: Cleaning And Preventive Maintenance
Clean the metal grease filters about every three Clean the aluminium oil filters periodi- months, under normal use condi- cally every 3 months. tions (1 to 2 hours a day). 24.12.2018 3159 HOOD USER GUIDE... -
Page 15: Washing In Dishwasher
Do not clean too dirty metal grease filters together with utensils in the dishwasher. Place the metal grease filters loosely and freely in the dish- washer. Metal grease filters must be placed in the dishwasher without jamming. 24.12.2018 3159 HOOD USER GUIDE... -
Page 16: Appliance Position
Fig. 7: LOCATION OF THE DEVICE When hood is installed, the product must have at least 65 cm clearance with the electricity cookers and 75 cm with cookers operating on gas or other fuels.Fig. 7 24.12.2018 3159 HOOD USER GUIDE... -
Page 17: Installation And Unpacking Of The Appliance
Check that your appliance is not deformed. Report the transport issues imme- diately to transport operator. Any faults encountered shall be reported to the dealer, too. Do not allow children to play the with packaging materials! 24.12.2018 3159 HOOD USER GUIDE... -
Page 18: Recommendations For Energy Saving
Use your product according to its normal speeds. Use at higher speed would cause an increase in the energy con- sumption. 24.12.2018 3159 HOOD USER GUIDE... -
Page 19: Content Of Package
External Flue 10- 3x 5.5x60 Wall Rack Screw 120mm Plastic Flue 11- 2x 3.9x22 Flue Connection Sheet Flue Connection Metallic Sheet Screw Operation Manual 12- 3.5x9.5 Flue Connection Screw Installatıon Scheme 13- Flue Flap (Option) 24.12.2018 3159 HOOD USER GUIDE... -
Page 20: Overview Of Hood
OVERVIEW OF hood OVERVIEW OF hood Fig. 9: OVERVIEW OF THE HOOD 1- Internal Flue 2- External Flue 3- Glass 4- Cooker Lighting 5- Control Panel 6- Filter 24.12.2018 3159 HOOD USER GUIDE... -
Page 21: Assembly Of Product
(area no. 1 ).Fig. 10(Fig. 10 Then bend the flap lightly to insert the other pin on the flap and insert the other pin to its socket (Fig. 10). 24.12.2018 3159 HOOD USER GUIDE... - Page 22 Assemble the cooker hood with the help of the assembly scheme.(/7) Affix the assembly pattern on the wall, at the specified height (See the min- imum and maximum distances intended for the worktop, in the assembly pat- tern). Perforate points A, B and C.(Fig. 11) 24.12.2018 3159 HOOD USER GUIDE...
- Page 23 Hang it on the wall with the hanging plate of the cooker hood through (A and B) points. Tighten A + B fixing screws on the wall, and completely secure the product at point C. 24.12.2018 3159 HOOD USER GUIDE...
-
Page 24: Air Exit Installation
Fig. 12: PLASTIC FLUE CONNEC- TION 1- 120 mm Flue Adapter 2- Body Attach the plastic flue (1) in the product body (2), and rotate it in the arrow direction (Fig. 12) Make the air connections of the product. 24.12.2018 3159 HOOD USER GUIDE... -
Page 25: Assembly Of Sheet Metal Flues
(Fig. 13) Fig. 13: ASSEMBLY OF SHEET METAL FUELS 1- Inner Flue 2- Flue Connection Plate Fixing Screws 3- Flue Connection Plate The outer and inner sheet metal flues are assembled one within the other (). 24.12.2018 3159 HOOD USER GUIDE... -
Page 26: Use Of Product
Display or (due to usage) every 2 or 3 weeks. To delete "C" signal after the filters are cleaned and replaced, press and hold ( ) button more than 3 secs (when 24.12.2018 3159 HOOD USER GUIDE... -
Page 27: Using Push Button Product
Product will run on 2nd speed level when this button is pressed. Product will run on 3rd speed level when this button is pressed. Press this button to turn on and off the lamp. 24.12.2018 3159 HOOD USER GUIDE... -
Page 28: Replacing The Lamps
L WARNING Disconnect the electrical supply of the hood. Leave the lamps to cool down first because they could burn your hands when they are hot. Fig. 16: Halogen lamp symbol 24.12.2018 3159 HOOD USER GUIDE... - Page 29 Fig. 18: Spark Plug Lamp Replace- ment Remove the aluminium cartridge filter. Remove the faulty bulb and replace with a new one with the same rating.Fig. 18 24.12.2018 3159 HOOD USER GUIDE...
-
Page 30: Authorized Service
If you use the hood without flue, make sure that the carbon filters are not older than 6 months. Be attentive to ventilate your kitchen adequately, in order to provide an airflow. If you are still not satisfied with the performance of the appliance, consult the authorized technical service. 24.12.2018 3159 HOOD USER GUIDE... - Page 31 In products that work with carbon It Does Not Discharge Check The filters, carbon filter must be Air (in flueless use) Carbon Filter. replaced once in every 3 months under normal conditions. 24.12.2018 3159 HOOD USER GUIDE...
-
Page 32: Technical Table
2014/35/EC (Regulation on Low Voltage Devices (LVD)) Directives. This device complies with the Directive on the Control of Waste Electrical and Electronic Equipment. Specifications of the device and this manual may be modified without prior notification. 24.12.2018 3159 HOOD USER GUIDE...
