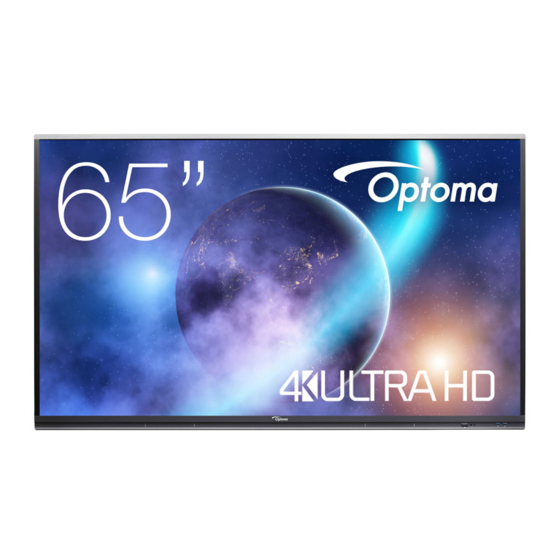

Optoma 5652RK User Manual

Hide thumbs Also See for 5652RK:
Table of Contents

Advertisement

Quick Links

Download this manual
Interactive Flat Panel
User manual

Advertisement

Table of Contents
loading

Related Manuals for Optoma 5652RK

Summary of Contents for Optoma 5652RK

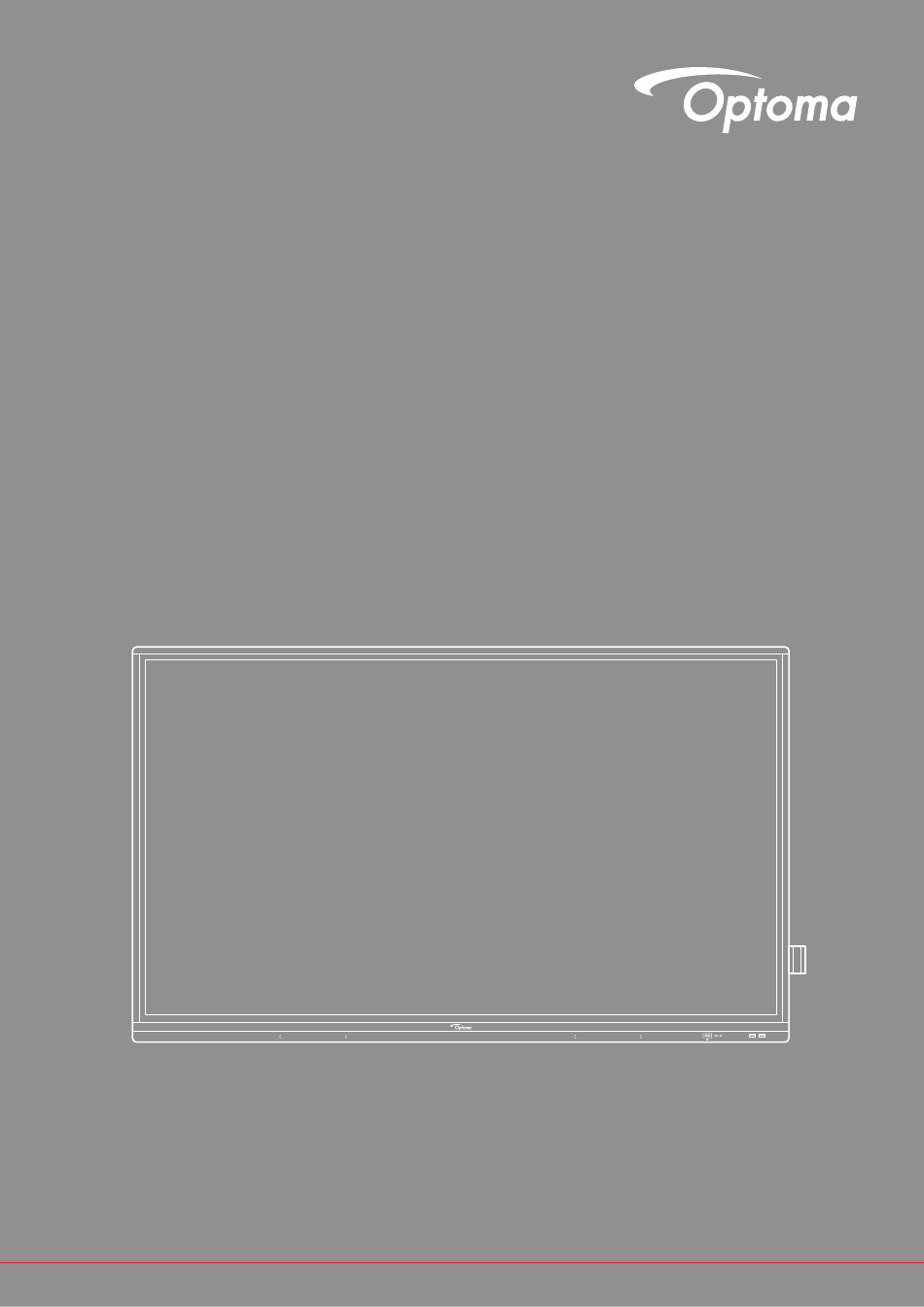

  • Page 1 Interactive Flat Panel User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................5 Safety Instructions ........................5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC Statement .......................... 6 FCC Warning ..........................6 Declaration of Conformity for EU Countries ................7 WEEE ............................7 ENERGY STAR ......................... 7 Low Blue Light and Eye Health ....................
  • Page 3 Playing Multimedia Files ...................... 83 Screen Lock..........................87 Browser ............................ 87 Optoma Marketplace ........................ 88 Keeper ............................89 Joan on TV ..........................90 Visualizer ..........................93 Other Software ......................... 94 Reactiv Suite ........................94 Optoma Management Suite (OMS) ..................95 English...
  • Page 4 RS232 RJ45 Control Connection ..................102 SET Command ........................103 GET Command ........................105 LED Indicator ........................... 107 Troubleshooting ........................108 Maintenance ..........................109 Cleaning the Screen ......................109 Clean the Front Frame ....................... 109 Optoma Global Offices ......................110 English...

  • Page 5: Safety

    ‡ Do not attempt to service the device yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the device for repair. ‡ Disconnect the power plug from AC outlet if the device is not being used for a long period of time.

  • Page 6: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2022 Disclaimer The information in this document is subject to change without notice.

  • Page 7: Declaration Of Conformity For Eu Countries

    Declaration of Conformity for EU Countries ‡ EMC Directive 2014/30/EU (Including amendments) ‡ Low Voltage Directive 2014/35/EU WEEE Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it. ENERGY STAR ENERGY STAR is a U.S.

  • Page 8: Introduction

    For detailed instructions, please scan the QR code or visit the URL: *The product images shown are for illustration purposes only and may not be an exact representation of the product. Optoma reserves the right to change product images and specifications at any time without notice. Quick Start Guide...

  • Page 9: Optional Accessories

    INTRODUCTION Optional Accessories Wi-Fi Dongle SI07B (Region optional) Stand Mount Wall Mount with PC Vesa Bracket (OWMFP01) Note: For WiFi dongle, it varies different regions. This is for reference. English...

  • Page 10: Product Overview

    INTRODUCTION Product Overview Front View Item Item Touch screen IR receiver Touch pen placements (x2) Light sensor Wi-Fi dongle slot for SI07B model only USB 3.0 ports (x2) Power button with LED indicator Touch pen holder English...

  • Page 11: Rear View

    INTRODUCTION Rear View SPDIF AUDIO IN RS232 AUDIO OUT Item Item Handles (x2) VGA port OPS slot Audio In port HDMI Out port LAN port (x2) USB 3.0 ports (x2) RS232 port Touch 1 USB port Audio Out jack HDMI 1/2/3 2.0 ports (x3) 20W speakers (x2) Touch 2 USB port Mounting holes for wall mount...

  • Page 12: Remote Control

    INTRODUCTION Remote Control Button Description Turn on/off the interactive flat panel (IFP). Power ( Turn off the sound temporarily. Mute ( ) Start Perform the same function as the Windows key on a computer keyboard. Perform the same function as the Space key on a computer keyboard. Space Perform the same function as the Alt and Tab keys on a computer keyboard.
  • Page 13 INTRODUCTION Button Description Perform the same function as the Alt and F4 keys on a computer keyboard. Pressing Alt+F4 both keys, you can close the current window. Numeric keys Numeric input keys Display Show the current input source and information. Repeat ( No function.

  • Page 14: Setup And Installation

    SETUP AND INSTALLATION Wall Mounting Installation Use only an Optoma-approved optional wall mount kit (available separately). Kit will include the following items: Screw (x4) Screw (x8) Screw (x2) Dual mounting brackets and wall mount Anchor (x8) Washer (x8) Wall Mount Specifications...
  • Page 15 SETUP AND INSTALLATION To mount the IFP on the wall, complete the following steps: Install the dual mounting brackets on the rear of the IFP. Then secure the brackets with four screws (A). Drill eight small holes on the mounting location and insert the anchors into the holes. Position the wall mount on the wall, then secure the wall mount with eight screws (B) through the washers into the installed anchors on the wall.
  • Page 16 SETUP AND INSTALLATION Align and hook the dual mounting brackets to the wall mount. Secure the dual mounting brackets and the wall mount with two screws (C). Note: ‡ The maximum wall mount kit load capacity:160kg (352lbs). ‡ The wall mount should be installed into concrete wall to ensure installation firmness. If concrete wall is not available, we recommend to use a stand instead.

  • Page 17: Installing An External Mini Computer

    SETUP AND INSTALLATION Installing an External Mini Computer Install the mini PC bracket on the rear side of the wall mount, then complete one of the following to install the mini computer: ‡ Install the screws onto the mini computer, then align and hook the mini computer to the mini PC bracket. ‡...

  • Page 18: Stand Mounting Installation (Optional)

    SETUP AND INSTALLATION Stand Mounting Installation (Optional) The stand mount kit includes the following items: Pen tray (x1) Wheel (x4) Screw (x16) Screw (x4) (x4) Washer (x4) Split Ring Lock Washer (x4) Stand pole (x2) Stand base (x1) Screw (x4) Washer (x4) (x4)
  • Page 19 SETUP AND INSTALLATION Flip the stand base so that you can see the screw holes for the wheel, then install the wheel onto its slot and secure it with four screws (J). Repeat the same procedure to install the remaining three wheels. Place the stand base on a stable surface, then install the stand pole onto its slot and secure both and G1).
  • Page 20 SETUP AND INSTALLATION Align the pen tray with the screw holes on the middle part of the poles, then secure the pen tray with four screws (H). Install the wall mount on the upper part of the poles, then insert the screws (K) through the screw holes from the rear side of the poles.

  • Page 21: Using The Remote Control

    SETUP AND INSTALLATION Using the Remote Control Installing/Replacing the Remote Control Batteries Two (2x) AAA size batteries are supplied for the remote control. IMPORTANT! Replace only with the same or equivalent type batteries. Remove the cover of the battery compartment. Insert the two batteries with correct polarity (+/-) as shown inside the battery compartment.

  • Page 22: Remote Control Operating Range

    SETUP AND INSTALLATION Remote Control Operating Range When using the remote control, make sure to point it within ±30° to the IR receiver on the IFP. The distance between the remote control and the IR sensor window should not be longer than 8 meters. ‡...

  • Page 23: Connections

    SETUP AND INSTALLATION Connections Connecting to Power Connect one end of the power cord to the AC-in socket on the IFP. Connect the other end of the power cord to a power outlet or a power supply. Set the Power switch to ON (I). The IFP will automatically enter standby mode. Connecting External Devices IMPORTANT! To use the touch screen function, make sure to connect one end of the USB cable to the USB...
  • Page 24 SETUP AND INSTALLATION VGA input connection Connect your computer to the IFP using a VGA cable. Note: ‡ For audio input, connect one end of an audio cable to the AUDIO IN jack on the IFP and the other end of the cable to the audio jack on your computer.
  • Page 25 SETUP AND INSTALLATION Audio output connection Connect your external speakers to the Audio-out port on the IFP. AUDIO OUT SPDIF connection Connect your audio equipment to the IFP using a SPDIF cable. SPDIF HDMI output connection Connect your projector to the HDMI out port on the IFP. HDMI OUT English...
  • Page 26 SETUP AND INSTALLATION USB connection Connect your USB peripheral device to the IFP using a USB cable. Note: ‡ For the USB flash drive connection, simply plug it into one of the available USB ports. ‡ USB 2.0 port is reserved for firmware upgrades and the USB quick-draw pen holder. RS232 connection Connect your computer to the IFP using a RS232 cable.
  • Page 27 SETUP AND INSTALLATION Wi-Fi connection For Wi-Fi connection, you need to install a Wi-Fi dongle to the Wi-Fi slot on the bottom of the IFP. Wi-Fi dongle can receive the signal in an area where there is a Wi-Fi network. To install the Wi-Fi dongle (model: SI07B), complete the following steps: Remove two (2) screws from the Wi-Fi slot bracket.
  • Page 28 SETUP AND INSTALLATION Touch pen holder connection To install a holder for the touch pen, complete the following steps: Attach the magnetic touch pen holder to the rear side of the screen. Connect the USB cable of the touch pen holder to an available USB port on the IFP. Note: If the touch pen holder is plugged into the USB 2.0 port then the pen holder trigger function can be used for multiple sources.

  • Page 29: Using The Device

    USING THE DEVICE Turning the Power On/Off Powering on Note: After the power cord is properly connected, make sure the Power switch is set to ON (I). Press the Power button to turn on the IFP. The LED indicator light turns white, indicating it is ready to use. Note: You can also press the button on the remote control to turn on the IFP.

  • Page 30: Setup Wizard

    USING THE DEVICE Setup Wizard The Setup Wizard will appear on the screen when you turn on your IFP for the first time. Note: This IFP is equipped with a touch-sensitive screen. You can simply tap the touch screen to operate your IFP. Select the language for the on-screen display (OSD) menu.
  • Page 31 Configure the date and time related settings. Select Next to continue. Read Optoma’s legal policies, including Terms and conditions of use, Privacy policy, Cookie policy, and Open source. Check the I agree to Terms and conditions, Privacy policy, Cookies policy and Open source radio button and then select Next to complete the setup.

  • Page 32: Basic Operations

    BASIC OPERATIONS Home Screen Overview Home screen is displayed every time you start the IFP. Sign in to Creative Board Wireless display verification code from Current date and time Apps shortcuts Creative Cast Pro Side toolbar Input sources Link to Reactiv OSD menu Apps list Wi-Fi connection status...

  • Page 33: Osd Menu

    BASIC OPERATIONS OSD Menu To open the OSD menu, do any of the following: ‡ On any screen, drag the bottom of the screen upwards. Press the Menu or Input button on the remote control. ‡ ‡ on the Home screen. Main menu Submenu Settings...

  • Page 34: Shortcut Menu

    Studies have shown that just as the ultra-violet rays can cause eye damage, the shortwave- length blue light rays from displays can cause eyestrain, retina damage, and affect vision over time. Optoma Low Blue Light is an eye protection feature that can reduce the blue light. IMPORTANT! For protecting your eyes against prolonged display use, we highly recommend you to do the following: ‡...

  • Page 35: Configuring The Image Settings

    BASIC OPERATIONS Configuring the Image Settings In the OSD menu, tap to open the Image menu, then complete the following steps: ‡ Tap Display Mode and select one of the available options: Presentation, Bright, Cinema, HDR, or User. Note: ‡ Image settings can only be adjusted in HDMI, VGA, OPS, and Type-C input.

  • Page 36: Configuring The Display Settings

    BASIC OPERATIONS Configuring the Display Settings In the OSD menu, tap to open the Display menu, then complete the following steps: ‡ Tap Aspect Ratio and select one of the available options: 16:9, 4:3, or PTP (Pixel To Pixel). Note: For 4K input, the aspect ratio will be locked to PTP.

  • Page 37: Configuring Audio Settings

    BASIC OPERATIONS Tap Automatic to automatically adjust the image to its optimized frequency, phase, and position. ‡ ‡ Drag the Frequency slider bar to adjust the vertical noise of the image. ‡ Drag the Phase slider bar to adjust the horizontal noise of the image. ‡...

  • Page 38: Viewing Device Information

    BASIC OPERATIONS Viewing Device Information In the OSD menu, tap to open the Information menu, then complete the following steps: ‡ Tap Display to view display mode, current input source, resolution, color depth, and color format. Tap About to view regulatory model name, serial number, firmware version, and Android version. ‡...

  • Page 39: Android Settings Menu

    BASIC OPERATIONS Android Settings Menu To open the Settings menu, tap on the Home screen. Note: Settings can be modified only in Android mode. Main menu Submenu Settings Note: ‡ To configure Android settings, simply touch the menu item on the screen and use the screen controls to adjust its value or set the setting.
  • Page 40 BASIC OPERATIONS If you prefer to use a customized wallpaper, follow the steps: a) In the Custom folder tap b) Select your preferred image from the local or external storage and tap Import. You can import up to 10 images. c) In the Custom folder tap on the image you wish to use as a wallpaper.

  • Page 41: Configuring Network Settings

    BASIC OPERATIONS - Tap or drag the app window to the right or upper corner of the screen to view the app in full screen mode. Note: When window is NOT in full screen, you can tap and hold on any of the 4 corners of a window until resizing arrow appears, then drag to the desired size and release.
  • Page 42 BASIC OPERATIONS ‡ Tap Bluetooth to enable Bluetooth and connect to other nearby Bluetooth devices. This interactive display supports Bluetooth version 5 and can connect for example to a Bluetooth keyboard, mouse, and speaker. Tap the following: - Device Name to enter a new device name. To confirm the modification, tap OK at the prompt. - In the list of Available device, select the device you want to connect to.

  • Page 43: Configuring Device Settings

    BASIC OPERATIONS Configuring Device Settings In the Settings menu, tap to open the Device menu, then complete the following steps: ‡ Tap HDMI out encryption setting to enable or disable encrypting HDMI out signal with HDCP. Note: If the connected monitor does not support HDCP, disable HDMI out encryption function. ‡...
  • Page 44 BASIC OPERATIONS Tap Apps to view apps information, clear apps data and cache, and force stop apps. ‡ Select an app in the list to force stop it (tap Force stop), view its storage and clear its data (tap Clear data) and cache (tap Clear cache), view app version and set permissions.

  • Page 45: Configuring Security Settings

    BASIC OPERATIONS Configuring Security Settings In the Settings menu, tap to open the Security menu, then complete the following steps: ‡ Tap Screen Lock Password to set screen lock password. Enter a 4-digit password twice at the prompt and then tap OK to confirm. Note: To remove the screen lock password, tap Clear Screen Lock Password (visible only if the password is set) and enter the current password.
  • Page 46 - Under Permissions, tap Unknown source and enable or disable installing third party software from an unknown source. - Under Permissions, tap Install app from marketplace and enable or disable installing third party software from Optoma Marketplace. 3rd party apps installation ‡...
  • Page 47 BASIC OPERATIONS Enabling or Disabling USB Wi-FI/USB Disk a) Press Input + 5 + 9 + 8 + 0 buttons on the remote control. The DEBUG MENU opens. b) Tap >>> next to the Advanced settings, then enter the Advanced Setting password at the prompt and tap Confirm.

  • Page 48: Configuring System Settings

    BASIC OPERATIONS Configuring System Settings In the Settings menu, tap to open the System menu, then complete the following steps: ‡ Tap Date and Time to configure date and time related settings. Tap any of the following: - Time Zone to select/change the time zone for your area. - Use 24-hour format (13:00) to enable or disable displaying time in 24-hour format.
  • Page 49 BASIC OPERATIONS - Timers ⇒ to set a startup and shutdown timer. To create a schedule, do the following: a) To enable startup timer and/or shutdown timer, select the radio button next to Startup timer and Shutdown timer. b) Set the time and select the day(s) when you want the IFP to follow this startup or shutdown schedule. c) Tap Add to save the timer.
  • Page 50 BASIC OPERATIONS - Wake on LAN to enable or disable remotely starting up the IFP over LAN. Note: Wake on LAN can’t work and will be gray out when Power Mode (Standby) is set to Active. ‡ Tap HDMI CEC to enable or disable any of the available options: Display on then player on, Display off then player off, Player on then display on, or Player off then display off.
  • Page 51 BASIC OPERATIONS - OTA (Over-The-Air) Software Upgrade to enable or disable upgrading software over Internet. Tap Auto to enable the system to check for firmware upgrades automatically every time the IFP is powered on and connected to the Internet. If the Auto option is disabled, the system will not check for firmware upgrades automatically.
  • Page 52 BASIC OPERATIONS Tap Legal to view Terms and Conditions of Use, Privacy policy, Cookie policy, and Open Source Library. ‡ English...

  • Page 53: Side Toolbar

    BASIC OPERATIONS Side Toolbar Tap > or < on the left or right side of the screen to open the side toolbar. Note: Drag > or < up or down on the screen to relocate it. Shortcut to the side toolbar Side toolbar To hide the toolbar, tap >...

  • Page 54: Viewing Recent Tasks

    BASIC OPERATIONS Viewing Recent Tasks Tap > or < ⇒ to view and manage all opened apps. ‡ Tap on the app you want to launch. ‡ To close the app, tap in the app window. - In multi-window mode, swipe the app window to the left or to the right or tap to close the app.

  • Page 55: Creative Board App

    BASIC OPERATIONS To use split screen, tap and hold on the desired app and then drag it to the left or to the right of Drag here to ‡ use split screen column. Note: Split screen is not supported in multi-window mode. Note: You can also view recently used apps in floating annotation toolbar.
  • Page 56 BASIC OPERATIONS Tap Create and use any of the activities described in the table below: Note: The floating board is home to many of the primary features found in the Creative Board app, which are detailed here. Item Description Tap and drag or long-tap on the screen to move the floating board to your preferred location on the screen.
  • Page 57 BASIC OPERATIONS Item Description Erase areas of your written texts or drawings. Select the eraser size and drag your fingers over the area you want to remove. Note: You can also use the palm of your hand to erase the item on the whiteboard. Eraser Select an object on the whiteboard.
  • Page 58 BASIC OPERATIONS Item Description Draw a geometric shape. Tap to select the desired 2D, 3D shape with several color options, use a ruler to measure distances and draw lines, or use a protractor to measure and draw angles. Geometric shape Tap any of the following tools: ‡...
  • Page 59 BASIC OPERATIONS Item Description Tap any of the following to share the file to other devices: ‡ QR Code to share the file with QR code. Share Note: Before scanning the QR code to download the file, make sure the IFP and your mobile device are connected to the same Wi-Fi network.
  • Page 60 BASIC OPERATIONS Item Description Undo Undo your last action. Redo Redo your last action. View and manage all pages that are involved in the current session. Tap any of the following: ‡ to open the previous or next page. ‡ Page number, for example 2/3 to open the page manager: Page manager on the left side to add a page to the left or on the right side to add a page to...
  • Page 61 BASIC OPERATIONS Item Description Sign in to Creative Board with your Creative Board account or with your Google account to create collaboration sessions. Sign in When signed in, tap to view account settings or tap to log out. Invite attendees to join the Google Classroom through the Creative Board. On the Attendees tab , tap and then select any of the following options:...

  • Page 62: Annotation App

    BASIC OPERATIONS Annotation App Tap > ⇒ to open the annotation app. In this mode, you can do the following: ‡ to write and draw on the screen. Note: You can change the pen color by tapping repeatedly. ‡ to highlight the item on the screen. Note: You can change the highlighter color by tapping repeatedly.

  • Page 63: Airshare

    BASIC OPERATIONS Airshare Tap > ⇒ to open Airshare. The online classroom access code and URL will be displayed on the screen. ‡ To display the connection QR code, tap To join the virtual classroom remotely, complete the following steps: Connect the IFP to an available network.
  • Page 64 BASIC OPERATIONS On the IFP, tap Enter to start the class session. To participate in the class, do the following: Launch the Creative Board app. Then use the following functions: a. Voter to enter the Voter interface. Select Single choice or Multiple choice to define the answer type. Tap Begin to start answering the question.
  • Page 65 BASIC OPERATIONS To close the answering session, tap Finish. The Answer statistics will be displayed on the screen. Tap the right answer(s) on the statistics screen. ‡ to save and export the result. ‡ to close the Answer statistics page. b.
  • Page 66 BASIC OPERATIONS When the function is activated, the person who taps Be fast first will get the right to answer. For example, if Amy first taps Be fast, then she will get the right to answer the question. ‡ Tap Reset to start the answering mode again. c.
  • Page 67 BASIC OPERATIONS d. Message Make sure the message function is enabled ⇒ On the mobile device, tap Message to switch to the Message screen, then enter your message in the comment text box and tap Send. The broadcast message will appear on the IFP screen. Note: ‡...

  • Page 68: Screen Recorder

    BASIC OPERATIONS Screen Recorder Tap > ⇒ to open screen recording utility. This utility helps you to record video from the IFP’s screen and connected camera screen (if enabled). Note: ‡ You can drag the recording utility to your preferred location on the screen. ‡...

  • Page 69: More Tools

    BASIC OPERATIONS More Tools Tap > ⇒ to access more tools such as Freeze, Stopwatch, Timer, Spotlight, ScreenLock, and Calculator. ‡ Tap Freeze to freeze the screen. Then tap to zoom in or tap to zoom out. To restore the screen to its original size, tap .

  • Page 70: Floating Annotation Toolbar

    BASIC OPERATIONS To customize More tools icons in the side toolbar, tap > ⇒ ⇒ Edit. Then tap next to the icon you want to remove from the side toolbar and tap next to the icon you want to add to the side toolbar. You can add up to 4 icons to the side toolbar.

  • Page 71: Using The Apps

    Optoma support in rectifying any issue which may result from the installation of third-party apps will be chargeable and may be limited.

  • Page 72: Creative Cast

    USING THE APPS Creative Cast Creative Cast Creative Cast to start wireless sharing and projection via Wi-Fi or LAN. IMPORTANT! ‡ The IFP and your mobile device/computer must be connected to the same Wi-Fi or LAN network. ‡ While in use, make sure that you have access to the Internet. Supported Operating Systems for Casting Collavision Senders Available Version...

  • Page 73: Mobile Device

    USING THE APPS Mobile Device When the setup guide screen appears, scan the QR code to download and install the Creative Cast app onto your mobile device. To connect to the IFP, complete the following steps: Note: The connection steps are desribed based on an iOS device. Launch the Creative Cast app.
  • Page 74 USING THE APPS Enter the Creative Cast verification code from the launcher screen to establish the connection. Tap any of the following: English...

  • Page 75: Computer

    USING THE APPS ‡ Mirroring to mirror your mobile device’s screen to the IFP. Remote View to mirror the IFP screen to your mobile device with annotation and image saving ‡ feature. ‡ Document to view and share documents. ‡ Photo to view and share photos.
  • Page 76 USING THE APPS ‡ To start screen casting from Chrome browser, enter your preferred user name (UserName), LoginCode (verification code on the launcher screen) and tap Login. Select what you want to share and then click Share. Note: ‡ If you want to share audio during screen casting, tap on the launcher screen.
  • Page 77 USING THE APPS To start screen casting from desktop app, download the Creative Cast to your computer. Launch the app and click on the device name. ‡ If the IFP is not visible in the Room List, input the IFP’s IP address manually to the Input IP address field.
  • Page 78 USING THE APPS Click any of the following: ‡ Mirroring to mirror your computer’s screen to the IFP. Remote View to mirror the IFP screen to your computer with annotation and image saving feature. ‡ ‡ PRO (Moderation Mode) to select up to 4 screens to display on the IFP. Enter the password (default: admin) and click Start.

  • Page 79: Creative Cast Settings

    USING THE APPS Select the screens to display. To exit the moderation mode, tap Leave Creative Cast Settings and then tap on any of the following icons to configure the Creative Cast launcher screen settings: ‡ Grouping to share the screen to other devices. ‡...

  • Page 80: File Manager

    USING THE APPS File Manager File Manager Tap File Manager to manage files and folders. Managing Files Select a storage location and browse for a file or folder you want to view then tap twice on a file or folder to open. The table below will help you navigate File Manager and its included features.
  • Page 81 USING THE APPS Item Description Select files and folders. When selected, tap any of the following: ‡ undo your last action. ‡ check/uncheck all items. ‡ cut and paste item(s). ‡ copy and paste item(s). ‡ delete item(s). ‡ rename an item. ‡...

  • Page 82: Cloud Storage

    USING THE APPS Cloud Storage Tap File Manager ⇒ Cloud Storage to create an account or use an existing account to access your cloud storage. To create an account: or Add account. Select the drive type. Follow on-screen instructions to create an account or sign in to your existing account. After successful login, you are prompted to set a security PIN.

  • Page 83: Playing Multimedia Files

    USING THE APPS To manage your cloud storage account(s) in the File Manager, tap any of the following: ‡ to add another cloud storage account. ‡ to lock the cloud storage account. ‡ to delete the cloud storage account. Note: Locking and deleting the cloud storage account in the File Manager will only prevent or remove access to that cloud storage in the File Manager and will not lock or delete the cloud storage in its original location, for example in Google.
  • Page 84 USING THE APPS Playing videos Select the video you want play and tap twice on it to start playback. During the playback tap on the screen to open the playback control toolbar. Then tap any of the following: Item Description List Display video thumbnails.
  • Page 85 USING THE APPS Playing music Select the audio track you want to play and tap twice on it to start playback. During playback tap on the screen to open the playback control toolbar. The table below explains the functions available on the playback control toolbar. Item Description List...
  • Page 86 USING THE APPS Viewing images Select the image you want to display and tap twice to open it on the screen. Tap on the screen to open the image control toolbar. The table below explains the functions available on the image control toolbar.

  • Page 87: Screen Lock

    USING THE APPS Screen Lock Screen Lock Tap Screen Lock to set the 4-digit pin code. Using the pin code, you can block the IFP from unauthorized use. To set the pin code for the first time, launch the Screen Lock app. Then tap Set password. The Advanced Settings ⇒...

  • Page 88: Optoma Marketplace

    Optoma Marketplace Optoma Marketplace Tap Optoma Marketplace to visit the built-in app store and to download and install other third-party apps to the IFP. Note: To install third-party apps, make sure the Install app from marketplace option is enabled in the Settings ⇒...

  • Page 89: Keeper

    USING THE APPS Keeper Keeper Tap Keeper to open the Keeper app and begin cleaning and optimizing the data on the IFP. ‡ For automatic cleaning of the memory, deleting temporary and junk files, tap One Key Optimize. ‡ For manual cleaning of the memory, tap Clean Memory .

  • Page 90: Joan On Tv

    USING THE APPS Joan on TV Joan on TV Tap Joan on TV to get the access PIN number needed to connect the IFP to the Joan Portal. To connect the IFP to the Joan Portal, complete the following steps: Open the web browser on your computer and enter http://portal.getjoan.com into the address bar.
  • Page 91 USING THE APPS Click Pair device now to pair with IFP. Or the “Let’s pair your device” page, select any of the pairing methods. For example, click PAIR DEVICE to pair with the IFP using the PIN number. Enter the PIN number that is displayed on the IFP at the prompt and click PAIR DEVICE. Enter the device name and select the calendar.
  • Page 92 USING THE APPS After successful connection, the IFP will display meeting room(s) schedule, meeting reminders, and meeting room reminders that are set in Joan Portal. English...

  • Page 93: Visualizer

    USING THE APPS Visualizer Visualizer Visualizer is an operation app for a document camera. If you connect a document camera device, tap Visualizer to set it up. To use Visualizer, complete the following steps: Connect a USB document camera to an available USB port on the IFP. Launch Visualizer app.

  • Page 94: Other Software

    USING THE APPS Other Software Reactiv Suite Reactiv Suite Reactiv SUITE is a digital workspace where multimedia content can be displayed, organised, manipulated, and annotated as naturally as paper. Present multiple types of non-linear content and seamlessly capture feedback without the extra clicks and micro-frustrations of traditional screen sharing tools. Even pin your camera and elevate your presence to stand out.

  • Page 95: Optoma Management Suite (Oms)

    To start using OMS over LAN, complete the following steps: Connect the IFP and your PC to the same LAN. Open the browser and download the OMS app to your PC from the Optoma web page: https://www.optomausa.com/product-details/optoma-management-suite#downloads Install OMS to your PC.
  • Page 96 USING THE APPS Click on Add ⇒ Device. Select Automatic Search and click Search to search for devices automatically. Note: If the device cannot be found automatically, then click Manual Search to search the device by the IP address or click Range Search to search the devices within the range of IP addresses. Select the device and click Add.

  • Page 97: Additional Information

    ADDITIONAL INFORMATION Dimensions 65-inch Unit: mm English...

  • Page 98: 75-Inch

    ADDITIONAL INFORMATION 75-inch Unit: mm English...

  • Page 99: 86-Inch

    ADDITIONAL INFORMATION 86-inch Unit: mm English...

  • Page 100: Supported Timing List

    ADDITIONAL INFORMATION Supported Timing List Clock Input Source Signal Timing Name Reference [MHz] [KHz] [Hz] HDMI1/2/3 (2.0) Type C 720x400 @70Hz 28.32 31.78 70.00 640x480 @60Hz VESA 25.18 37.92 59.94 640x480 @72Hz VESA 31.50 37.86 72.81 640x480 @75Hz VESA 31.50 37.50 75.00 800x600 @56Hz...
  • Page 101 ADDITIONAL INFORMATION Clock Input Source Signal Timing Name Reference [MHz] [KHz] [Hz] HDMI1/2/3 (2.0) Type C 1080i 59Hz CEA-861 74.17 33.71 59.94 1080i 50Hz CEA-861 74.25 28.12 50.00 1080p 60Hz CEA-861 148.25 67.50 60.00 1080p 59Hz CEA-861 148.35 67.44 59.94 1080p 50Hz CEA-861 148.50...

  • Page 102: Rs232 Protocol Function List

    ADDITIONAL INFORMATION RS232 Protocol Function List Note: IFP supports RS232 and RJ45 (port 23) control command. RS232 Pin Assignments Spec. Pin No. (from IFP side) RS232 RJ45 Control Connection RS232 Settings LAN Control Settings Baud Rate 9600 Machine IP Data Bits Port Parity None...

  • Page 103: Set Command

    ADDITIONAL INFORMATION SET Command Response Type Category Parameter Hex Code CMD Success Failed Power off ~xx00 n 7E 30 30 30 30 20 30 0d Power Power on ~xx00 n 7E 30 30 30 30 20 31 0d Restart ~xx00 n 7E 30 30 30 30 20 33 0d Eco.
  • Page 104 ADDITIONAL INFORMATION Response Type Category Parameter Hex Code CMD Success Failed Español 7E 30 30 37 30 20 35 0d Traditional n=13 7E 30 30 37 30 20 31 33 0d Chinese Simplified n=14 7E 30 30 37 30 20 31 34 0d Chinese Português 7E 30 30 37 30 20 36 0d...

  • Page 105: Get Command

    ADDITIONAL INFORMATION Response Type Category Parameter Hex Code CMD Success Failed Vol - n=18 7E 30 30 31 34 30 20 31 38 0d Remote UP n=10 7E 30 30 31 34 30 20 31 30 0d Remote DOWN n=14 7E 30 30 31 34 30 20 31 34 0d Remote LEFT n=11...
  • Page 106 ADDITIONAL INFORMATION Response Type Category Hex Code CMD Success Parameter Failed 7E 30 30 31 32 37 20 Aspect Ratio ~xx127 n 16:9 31 0D OK14 Presentation Bright Cinema 7E 30 30 31 32 33 20 Picture Mode ~xx123 n 31 0D User OK10...

  • Page 107: Led Indicator

    ADDITIONAL INFORMATION Response Type Category Hex Code CMD Success Parameter Failed Regulatory Requlatory 7E 30 30 31 35 31 20 model name ~xx151 n Oknnn (ex. SLUGRK) Model name 33 0d (will provide when kick off) Standby Mode INFO0 Warming up INFO1 System Auto...

  • Page 108: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your device, please refer to the following information. If a problem persists, please contact your local reseller or service center. No picture or sound. ‡ Make sure all signal and power connections are properly connected. ‡...

  • Page 109: Maintenance

    ADDITIONAL INFORMATION Maintenance Proper routine maintenance can help with early fault detection and keep the IFP looking like new. IMPORTANT! Before cleaning and performing any maintenance task, make sure to unplug the power cord from the power outlet to prevent electric shock. Cleaning the Screen ‡...

  • Page 110: Optoma Global Offices
