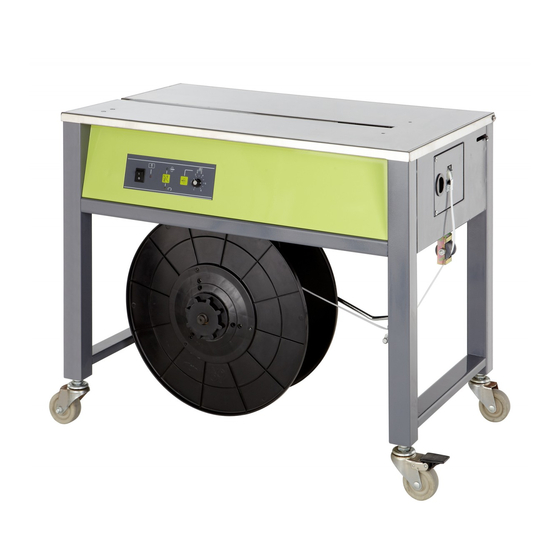

Semi-automatic polypropylene strapping machine
Hide thumbs Also See for EXS-206:
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com
SEMI-AUTOMATIC POLYPROPYLENE
STRAPPING MACHINE
OPERATION & MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXS-206 and is the answer not in the manual?

Questions and answers

Related Manuals for Extend EXS-206

Summary of Contents for Extend EXS-206

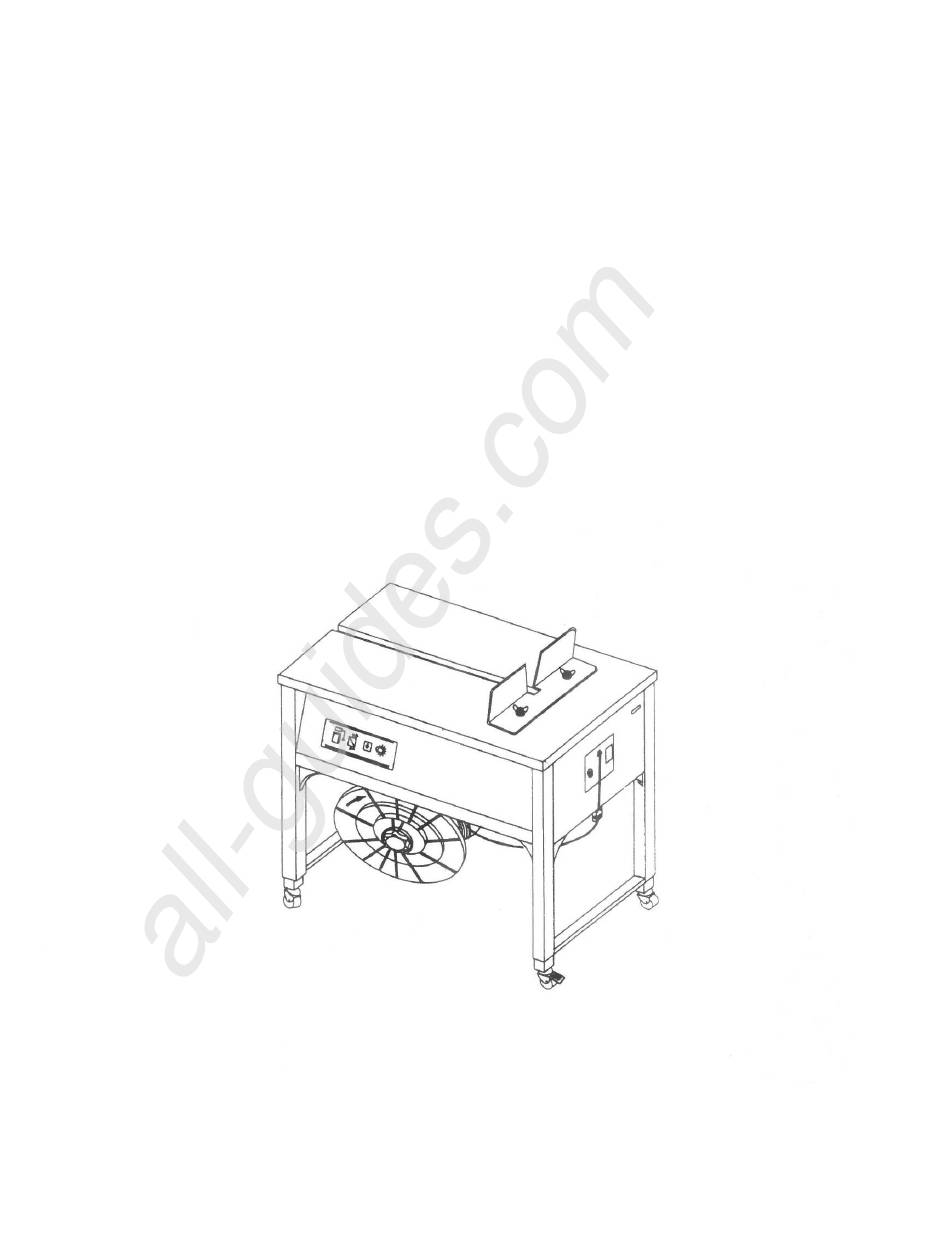

  • Page 1 All manuals and user guides at all-guides.com SEMI-AUTOMATIC POLYPROPYLENE STRAPPING MACHINE OPERATION & MAINTENANCE MANUAL...
  • Page 2 All manuals and user guides at all-guides.com SAFETY INSTRUCTIONS Read these safety instructions before operating or servicing your strapping machine. 1. Before operating the machine , pleases fit over voltage and under voltage protection to the machine . 2. Wear eye or face, and hand protection. Do not wear loose clothing. 3.
  • Page 3 All manuals and user guides at all-guides.com Specification DESCRIPTION REMARKS LENGTH 895mm DIMENSION WIDTH 565mm HEIGHT 740mm SEALING METHOD HEAT SEALED STRAP WIDTH 5-15mm MACHINE TENSION 5-50kg NET WEIGHT 100kg ACOUSTIC NOISE 65dB(A) Operating Requirements DESCRIPTION REMARKS AMBIENT TEMPERATURE 5~40°C RELATIVE HUMIDITY 35~85%RH INSTALLATION ALTITUDE...

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS Major components Introduction Exterior Machine Strapping Head Installation Operating Instructions Operating Adjustments Principles of Operation Service Adjustments and Clearances Maintenance Troubleshooting Parts list and Exploded views Electrical schematic...

  • Page 5: Major Components

    All manuals and user guides at all-guides.com MAJOR COMPONENTS In Fig 1.thru 4 the major components of the HOT KNIFE. The “Hot Knife” is machine and the strapping head are centrally located at the front of the shown in detail. strapping head Movement of the knife is controlled by a cam.

  • Page 6: Exterior Machine

    All manuals and user guides at all-guides.com EXTERIOR MACHINE STRAP TABLE TOP CHANNEL PACKAGE CONTROL STOP PANEL FIXED SWIVEL CASTER CASTER FIGURE1. MAJOR COMPONENTS, EXTERIOR ELECTRICAL COMPONENTS STRAPPING HEAD DISPENSER BRAKE DISPENSER ASSEMBLY FLANGE FIGURE2. MAJOR COMPONENTS, FRONT VIEW...
  • Page 7 All manuals and user guides at all-guides.com TENSION MOTOR ADJUST KNOB SLIP COIL OF CLUTCH STRAP ELECTRICAL PANEL DISPENSER BRAKE FIGURE 3. MAJOR COMPONENTS, TOP VIEW TOP COVER ENTRY WELDING EXIT GUIDE CLAMP HOLDING GUIDE FEED TENSION GRIPPER GRIPPER ELECTROMAGNETIC WHEEL WHEEL CLUTCH...

  • Page 8: Installation

    All manuals and user guides at all-guides.com INSTALLATION SPARE PARTS Installation of the machine, requires that the machine be uncrated, placed in it’s 1 104G001 Micro switch, heavy(LS-1) proper position and secured in place 1 2201210020 Tension spring, short once strap of the proper size is loaded 1 2201011022 Tension spring, long and the power cord is plugged into the...

  • Page 9: Operating Instructions

    All manuals and user guides at all-guides.com OPERATING INSTRUCTIONS OPERATOR’S CONTROLS MOTOR STOP TIME DIP-SWITCH ADJUSTMENT The motor stop time adjustment on your machine allows the Control Panel. The control panel is located on the user to adjust the motor stop time. Please follow the steps left-hand side of the front panel of the machine.
  • Page 10 For 200mm inner coil diameter, position 2 holes on To operate the EXS-206, proceed as follow: the Reel center claw ( Item 6 ) to #1 and #3 holes of Push the power switch to the “NO” position and the Plastic Flange A (Item 7).

  • Page 11: Operating Adjustments

    All manuals and user guides at all-guides.com OPERATING ADJUSTMENTS ADJUSTING TENSION If tension adjustment is required, proceed as follows: Loosen the locking knob at the right hand end of the machine. Turn the knurled knob, located at the rear of the machine, clockwise to increase tension, counterclockwise to decrease tension.

  • Page 12: Principles Of Operation

    All manuals and user guides at all-guides.com PRINCIPLES OF OPERATION GENERL 1. NEUTRAL POSITION. When the strap is The strapping cycle can be divided into three initially threaded through the machine. It distinct operations: enters the head under the strap guide and a.
  • Page 13 All manuals and user guides at all-guides.com 2. ENCIRCLING PACKAGE; TRIPPING LS1. Grip and tension is initiated by the operator who encircles the package with the strap and inserts the strap end into the slot of the upper strap guide on the right-hand end of the machine.
  • Page 14 All manuals and user guides at all-guides.com 3. TENSION. When LS1 is closed, the electromagnetic clutch energizes and the cam shaft rotates approximately 45 degrees. This small amount of shaft rotation is controlled by LS3, mounted at the right-hand end of the cam shaft. When LS3 closes it de-energizes the electromagnetic clutch and the end gripper will have been moved upward to...
  • Page 15 All manuals and user guides at all-guides.com 4. HOLDING GRIPPER RISES; HOT-KNIFE MOVES INWARD. Momentarily electron tension detector energizes the control circuit to energize the electromagnetic clutch and turn the cam shaft. As the cam shaft turns, the holding gripper rises to contain the other end of the strap beneath the anvil.
  • Page 16 All manuals and user guides at all-guides.com 5. STRAP IS CUT; WELD IS MADE. The welding clamp cuts the strap during it’s upward movement then pushes the upper surface of the lower strap against the lower surface of the hot-knife. It then pushes the hot-knife the lower surface of the upper strap.
  • Page 17 All manuals and user guides at all-guides.com 6. WELD IS RELEASED; HEAD RETURNS The cam shaft returns to the home TO HOME POSITION. position and closes LS3 and LS5. The hot-knife retracts and the welding clamp electromagnetic clutch pushes the two molten surfaces together, de-energized by LS3 while LS5 welding the strap.
  • Page 18 All manuals and user guides at all-guides.com ADJUSTMENTS CLEARANCES Anvil to ensure that anvil operates VERTICAL smoothly a minimum clearance between LOCATION OF the anvil and the left and right guides KEY ESTABLISHES must be maintained. To adjust, proceed HEAD IN HOME SWITCH as follows: POSITION...
  • Page 19 All manuals and user guides at all-guides.com WELDING HOLDING 4. If there is clearance at any point, CLAMP GRIPPER loosen locknuts (1) and (2) and adjust all ADJUSTMENT clearance out at points A, B and C. GRIPPER BRACKET 5. When set, tighten the locknuts. FEED AND TENSION ROLLERS.

  • Page 20: Maintenance

    All manuals and user guides at all-guides.com MAINTENANCE GENERAL. Periodic checks of all drive belts for replacement should be made to prevent worn cut or WARNING stretched belts which will affect tension. LUBRICATION. Make sure the machine is clean BEFORE SERVICING MACHINE before applying lubricants to the points shown in the Wear safety glasses with figure below.

  • Page 21: Troubleshooting

    All manuals and user guides at all-guides.com TROUBLESHOOTING SYMPTOM: Strap jams in strapping head while feeding. CAUSE REMEDY 1. Debris accumulation in feed/tension 1. Disassemble the roller assembly and roller area. remove debris. See Adjustment Section. Figure 24. SYMPTOM: Strap pulls from head before seal and cut-off.
  • Page 22 All manuals and user guides at all-guides.com...
  • Page 23 All manuals and user guides at all-guides.com TABLE OF CONTENTS TABLE OF CONTENS ---------------------------------------------------------------------------------- 1 FIG.1 WELDING COMPONENT ----------------------------------------------------------------- 2~3 FIG.2-1 DRIVE AND CAM ASSEMBLY --------------------------------------------------------- 4~5 FIG.3 STRAP FEED/TENDION ASSEMBLY ------------------------------------------------- 6~7 FIG.4-4 TENSION ADJUSTMENT AND SENSING ASSEMBLY-------------------------- 8~9 FIG.5 HOT--KNIF AND TENSION LEVER ASSEMBLY---------------------------------- 10~11 FIG.6-3C CABINET COMPONENTS----------------------------------------------------------------- 12~13...
  • Page 24 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 1 WELDING COMPONENTS FPS-500-010 Q'TY PART NO. DESCRIPTION 4-01010 END GRIPPER UNIT 4-01020 WELDING CLAMP UNIT 4-01030 HOLDING GRIPPER UNIT 4-01041 SEPARATING PLATE UNIT 4-01050 SEPARATING ARM UNIT 4-01000-110 Main body block 4-01000-120 Guide plate, right hand side 4-01000-130...
  • Page 25 All manuals and user guides at all-guides.com 116 128 113 117 WARNING All parts must be periodically inspected and replaced if worn or broken.Failure to do this can affect a tool's operation and present a safety hazard. FIGURE1.WELDING COMPONENTS...
  • Page 26 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 2 DRIVE AND CAM ASSEMBLIES FPS-500-021 Q'TY PART NO. DESCRIPTION 4-02010 REDUCTION GEAR UNIT 4-02021 CAM UNIT 4-02030 MOTOR FAN UNIT,FOR 50HZ 4-02031 MOTOR FAN UNIT,FOR 60HZ 4-02010-110 Pulley 4-02010-120 Reduction gear 4-02020-140 Cam shaft, M17*192...
  • Page 27 All manuals and user guides at all-guides.com 20.1 LS-5 LS-3 FIGURE 2. DRIVE AND CAM ASSEMBLIES...
  • Page 28 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 3 STRAP FEED/TENSION ASSEMBLY FPS-500-030 Q'TY PART NO. DESCRIPTION 4-03011 BEARING HOUSING, UPPER UNIT (ALUMINIUM) 4-03021 BEARING HOUSING, LOWER UNIT (ALUMINIUM) 4-03010-110 Roller shaft 15*85 4-03010-120 Roller shaft 15*66 4-03011-130 Bearing housing, upper (aluminium) 14.1 4-03010-140...
  • Page 29 All manuals and user guides at all-guides.com FIGURE 3.STRAP FEED/TENSION ASSSEMBLY 14.1 117 130 14.2 120 111...
  • Page 30 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 4 TENSION ADJUSTMENT AND SENSING ASSEMBLIES FPS-500-045 Q'TY PART NO. DESCRIPTION 4-04010 TIGHTNESS DIRECTOR UNIT 4-04031 TRANSMISSION BRACKET UNIT 4-04000-120 Spring guide 4-04010-130 Tightness adjustment cover 4-04010-140 Tightness adjustment sleeve 4-04010-150 Tightness adjustment nut 4-04010-160...
  • Page 31 All manuals and user guides at all-guides.com FIGURE 4. TENSION ADJUSTMENT AND SENSING ASSEMBLIES For refence only. See Figure8,item 15...
  • Page 32 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 5 HOT-KNIFE AND TENSION LEVER ASSEMBLIES Q'TY PART NO. DESCRIPTION FPS-500-050 4-05010 HEATER ARM UNIT 4-05020 HEATER HEAD UNIT 4-05030 TENSION LEVER UNIT 4-05040 STRAP GUIDE UNIT, ENTRY 4-05050 STRAP GUIDE UNIT, EXIT 4-05010-110 Heater arm side plate 4-05010-120...
  • Page 33 All manuals and user guides at all-guides.com SEE FIGURE 1, ITEM 11 107 109 SEE FIGURE 9-8 ITEM 16 POSITION REFERENCE ONLY.SEE FIGURE 2 FIGURE 5.HOT-KNIFE AND TENSION LEVER ASSEMBLIES...
  • Page 34 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 6-2C CABINET COMPONENTS FPS-503-062C Q'TY PART NO. DESCRIPTION 4-06010 PLASTIC ROLLER BRACKET UNIT 4-06200-112 Body 4-06200-121 Door 297E0010 Door magnet 4-06000-151 Plastic package stop 4-06201-160 Stainless steel top cover 229D16075CH-GY Wheel swivel 75mm 17.1 229E16075CH-GY...
  • Page 35 All manuals and user guides at all-guides.com OPTION OPTION 17-1 FIGURE 6-2C.CABINT COMPONENTS...
  • Page 36 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 8-2 DISPENSER ASSEMBLIES FPS-503-082 Q'TY PART NO. DESCRIPTION 4-08200 REEL BRAKE UNIT 4-08210 PLASTIC FLANGE UNIT 4-08000-110 4-08000-120 Plastic roller 4-08200-130 Roller frame 4-08200-140 Brake belt 4-08200-160 Belt pin 4-08200-170 Brake arm 4-08200-180 Belt holder plate...
  • Page 37 All manuals and user guides at all-guides.com PARTS LIST,FIGURE 9-5 ELECTRICAL COMPONENTS FPS-500-095 Q'TY PART NO. DESCRIPTION 4-09010 SMOKE FAN UNIT 4-09020 INSTANT HEATING TRANSFORMER UNIT,110V Option 4-09041-120 Switch holder 4-09010-132 Fan bracket 4-09010-143 Protect cover 4-09010-151 Protect cover bracket 4-09020-160 Instant heating cable 4-09020-170...
  • Page 38 All manuals and user guides at all-guides.com FIGURE 8-2.DISPENSER ASSEMBLY...
  • Page 39 All manuals and user guides at all-guides.com WARNING All parts must be periodically inspected and replaced if worn or broken.Failure to do this can affect a tool's operation and present a safety hazard. FIGURE 9-5.ELECTRICAL COMPONENTS...
  • Page 40 All manuals and user guides at all-guides.com PARTS LIST, FIGURE 10-2 CONTROL BOX ASSEMBLY FPS-500-102 Q'TY PART NO. DESCRIPTION 4-10200-110 Control box 4-10200-120 Control box cover PC-FP-30B01 Control PC board asse. FP-30B01 103B1122035 Transformer, 110V/22V 35VA 103B2322035 Transformer, 220-230V/22V 35VA 103B2422035 Transformer, 240V/22V 35VA 115N0630...
  • Page 41 All manuals and user guides at all-guides.com FIGURE10-2. CONTROL BOX ASSEMBLY...
  • Page 42 All manuals and user guides at all-guides.com...
  • Page 43 All manuals and user guides at all-guides.com...
