BGS technic 8688 Instruction Manual

SPECIFICATION

Pad Size:
Free Speed:
Working Pressure:
Avg. Air Consumption:
Air Inlet:
min. Hose Ø:
Weight:
Overall length:
Noise:
Vibration:

IMPORTANT SAFETY INFORMATION

WARNING!
Read and understand and follow all instructions and warnings before operating this tool.
Failure to do so may result in personal injury and/or property damage and will void warranty.
Oil tool before each use 4 to 5 drops of a good grade Air Tool Oil placed in
Use proper air pressure and CFM rating listed for this tool.
1. Be sure air is in OFF position when connecting tool to air supply.
2. Always wear approved eye protection when using tools.
3. Use only those accessories that are designed for use with tools.
4. Be sure to disconnect tool from air supply before changing accessories, performing service on
tool, and when not in use.
5. As with any tool, use common sense when operating. Do not wear loose clothing or
could become caught by moving parts, causing injury. Operate tool a safe distance from yourself
and others in the work area.
6. Follow air source manufacturers directions for connection of regulators, filters, and other
accessories to air source. Do not install quick couplers directly on tool as they put unnecessary
strain on the air inlet threads possibly causing them to wear out prematurely. Instead, install them
on a short length of air hose attached to the tool.
SW-Stahl und Werkzeugvertriebs GmbH
L e v e k r u s r e t S a r s s e 6 5
D 4 - 2 8 9 7 R e m s c h e d i

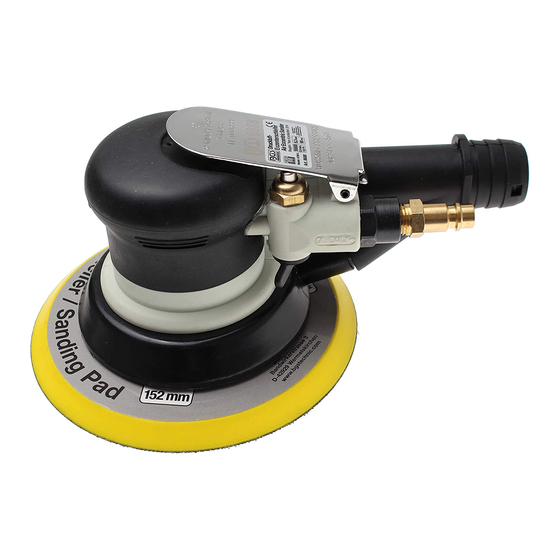

Air Eccentric Sander
152 mm (6")
10,000 rpm
6,3 Bar (90 psi)
142 L/min (5 CFM)
1/4"
10 mm (3/8")
1050 g
225 mm
LPA: 87dB(A) / LWA: 98dB(A)
ah = 8.5 m/s² / K= 1.5 m/s²
Tel. +49 (0) 2191 / 46438-0
F ax +49 (0) 2191 / 46438-40
- E M a : l i
the
If raising dust, wear a suitable mask.
n i o f @ s w s a t l h d . e
Art. 8688
air inlet is sufficient.
jewelry that
