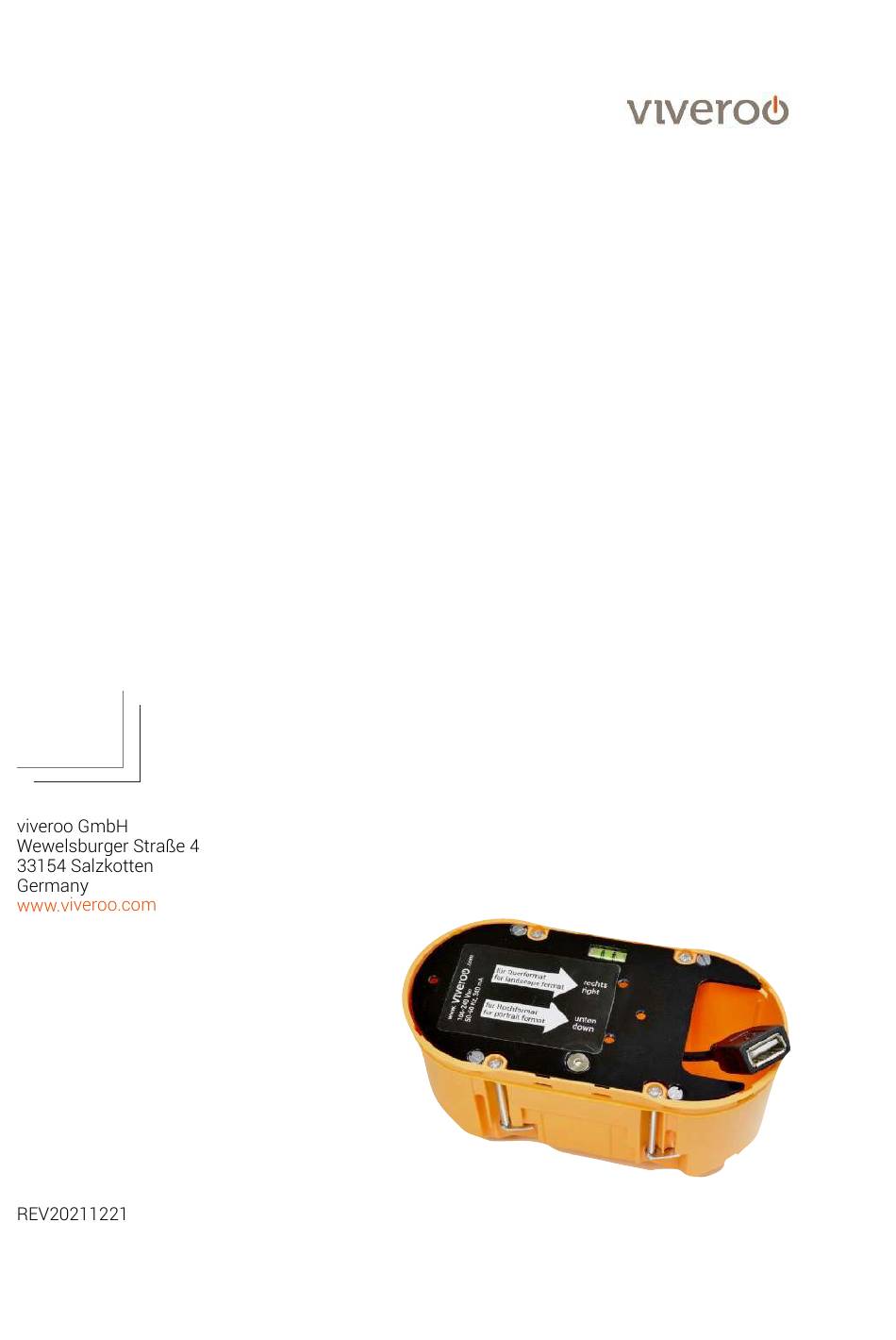

- Page 1 Installation guide MountingSet Inwall, free free...
-
Page 2: Safety Information
MountingSet. Please also read the free user manual completely before using your free. Please follow the instructions and recommendations to ensure proper use and maximum enjoyment. free and all free mounting sets are intended for use in enclosed and Safety dry living spaces. -
Page 3: Technical Data
Power consumption 12,5Watt - 18Watt, depending on iPad and power supply free may be removed from the power supply via the circuit breaker in Removal from the respective rooms. power supply Technical changes and mistakes are excepted. Apple, iPad and Lightning are registered trademarks of Apple Inc. - Page 4 The backside of the flush-mount box can be used as a template. The depth should be approximately 75mm. ! Important: This installation guide shows the installation process for a drywall. Here free is installed in landscape position. Step 2 Cut a hole for the cable in the flush-mount box. Use the diagonal surfaces of the box for the cut.
- Page 5 After completing installation, please make sure that the free is solidly secured to the wall. Now you can install free. Please see the corresponding user manual. Installation guide viveroo free, MountingSet Inwall and furniture, page of...
-
Page 6: Product Dimensions
Product dimensions See document „Technical Data“. Installation guide viveroo free, MountingSet Inwall and furniture, page of... -
Page 7: Technical Drawing
Measurements for other generation on previous page. The size of free varies depending on the iPad generation. Mounting plate is always the same, it allows you to change iPad generation easily. Installation guide viveroo free, MountingSet Inwall and furniture, page of... - Page 8 Installation guide MountingSet Furniture, free free Installation guide viveroo free, MountingSet Inwall and furniture, page of...
- Page 9 Please follow the instructions and recommendations to ensure proper use and maximum enjoyment. free and all free mounting sets are intended for use in enclosed and dry Safety living spaces. information The following conditions must be provided: - Ambient temperature: Usage: between 0°...
- Page 10 Europlug connections 5Vdc, 9Vdc or 12Vdc depending on iPad and USB connector free may be removed from the power supply via the circuit breaker in Removal from the respective rooms. power supply Technical changes and mistakes are excepted. Apple, iPad and Lightning are registered trademarks of Apple Inc.
- Page 11 4. Measurements for other generations on the following page. The size of free varies depending on the iPad generation. Mounting plate is always the same, it allows you to change iPad generation easily. Installation guide viveroo free, MountingSet Inwall and furniture, page...
- Page 12 Place the PoE adapter built into the bracket in the mounting box of the PoE mounting set. A PoE switch or an injector with the 802.3at standard is also required for the power supply. The assembly set PoE is installed according to steps 1 to 4 on page 4 of these instructions. Installation guide viveroo free, MountingSet Inwall and furniture, page...
