C-VUE 18, 26, 45 ASSEMBLY INSTRUCTIONS

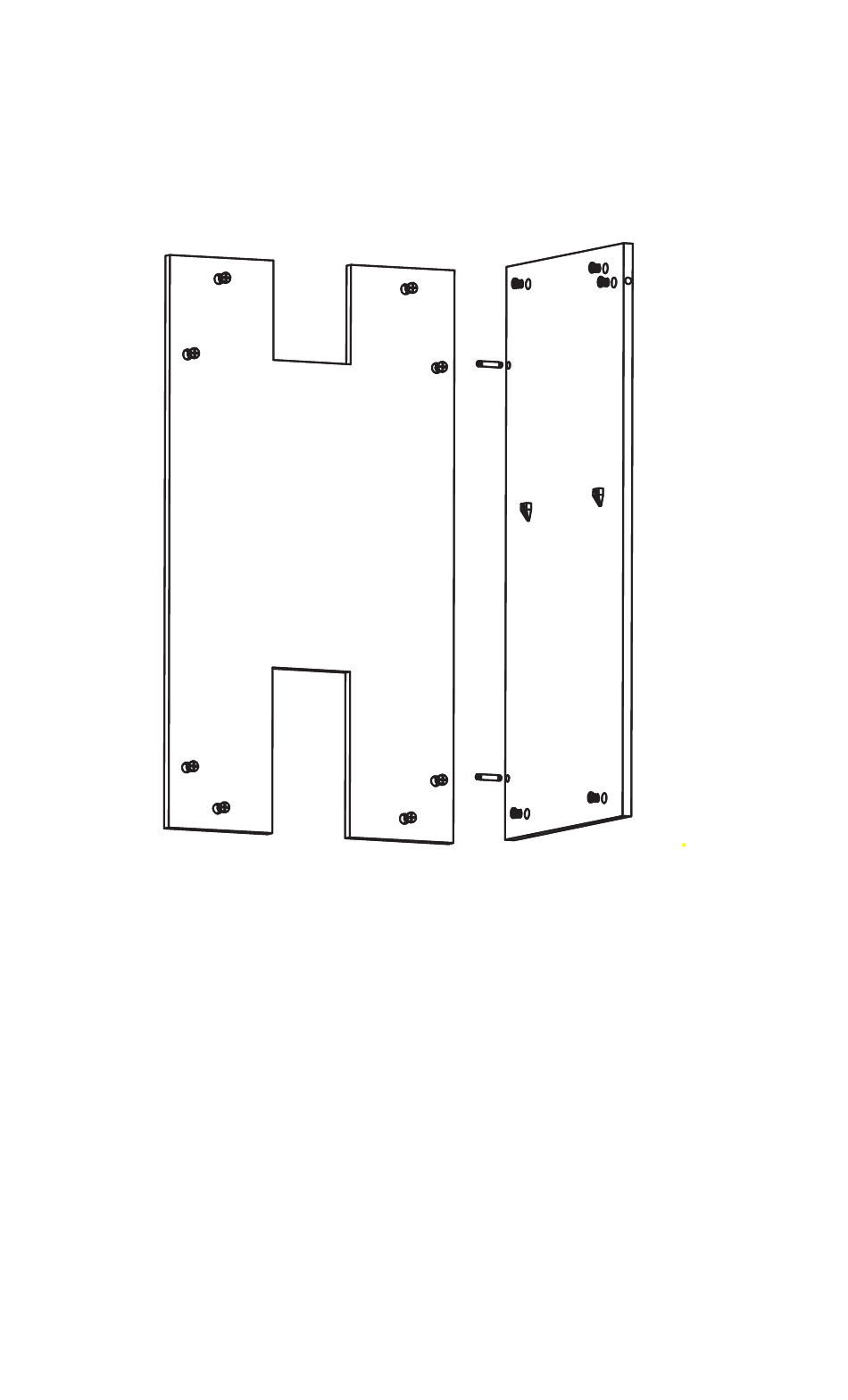

Step 1- Attaching Right Side Panel to Back Panel
[requires two (2) Camlocks and two (2) Camlock Screws]
• Insert two (2) Camlock Screws into the Right Side Panel.
• Be sure to screw in just until the threads are not visible, no more.
• Insert two (2) Camlocks into the Back Panel
• Attach Right Side Panel into the Back Panel
• Tighten Camlocks to secure the Right Side Panel to Back Panel.
• If cam will not engage during assembly, then you must unscrew the
camlock screw slightly until the head of the screw and engage with
cam.
