Thank you for purchasing this high quality Banlaw product. Please read through and understand
the information in this Product Data Sheet (PDS) BEFORE installation or operation of the product
to avoid potential health, safety and environment (HS&E) risks or property damage.

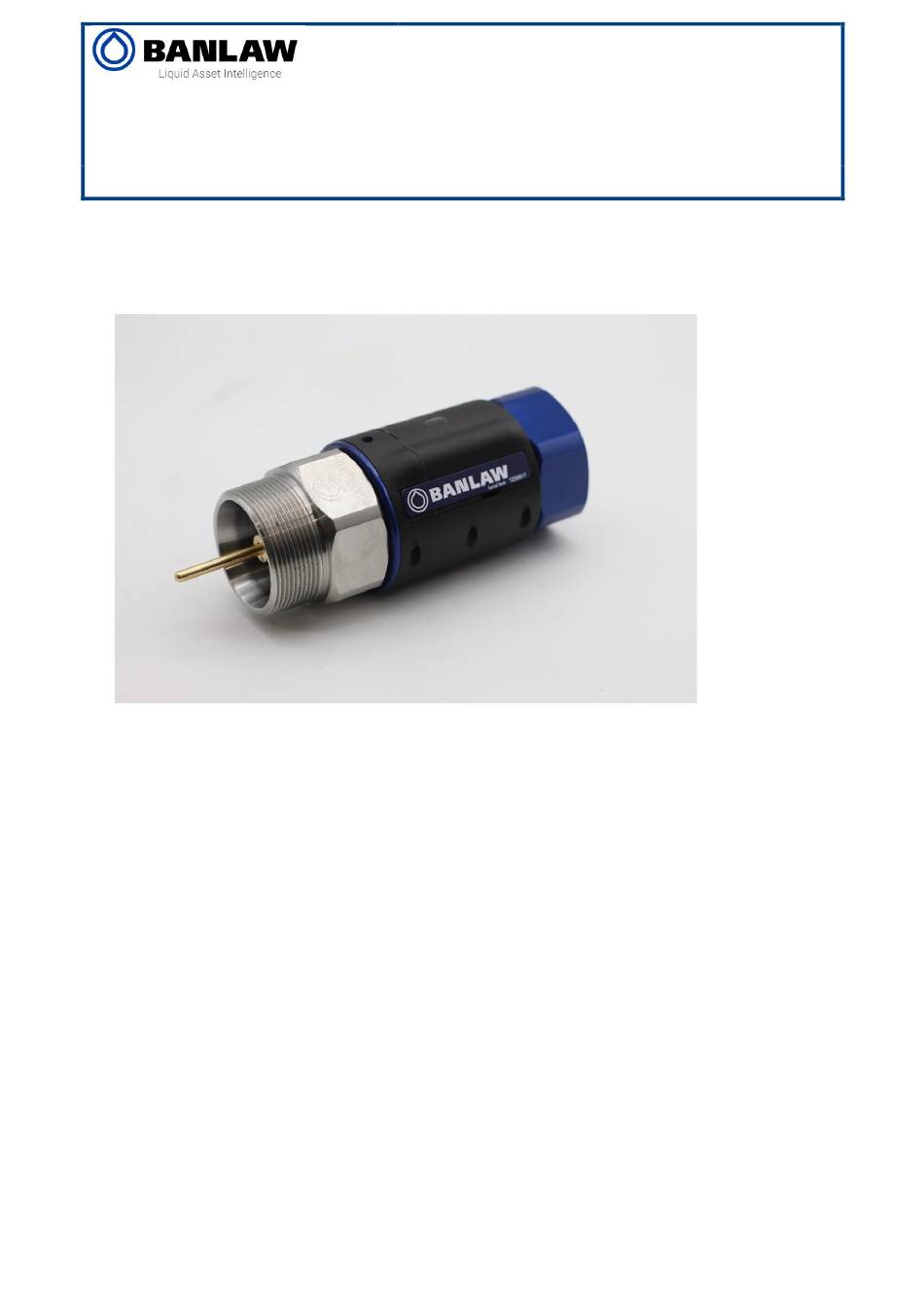

figure 1 Banlaw SecureFill Dry Break Auto ID Wireless Swivel (BRT34WSA)
1
PRODUCT DESCRIPTION
The Banlaw SecureFill Dry-Break Auto ID Wireless Swivel, hereafter referred to as the Wireless Swivel,
represents an innovative evolution of the Banlaw Dry Break "Auto ID" system. The use of wireless
technology provides the same fuel security as the wired FuelTrack Dry-Break Auto ID system with up
to twice the range of the wired Auto ID system.
The Wireless Swivel acts as a conventional swivel and an interface to the ID tag in the attached receiver. The
tag ID is communicated from the Wireless Swivel to the ResTrack System via the Wireless Controller HID. The
use of contact-based identification greatly improves reliability while maintaining security. The Wireless
Swivel is only compatible with Banlaw Auto ID Nozzles, Receivers, and the ResTrack Resource Management
System.
The Wireless Swivel is screwed into the nozzle and provides a rotating mechanical connection between the
hose and the nozzle. The Wireless Swivel detects the ID tag in the receiver and communicates the unique Tag
ID to the ResTrack System via the wireless gateway. The Contact-based identification between the swivel and
the Auto ID receiver greatly improves reliability and security and is fully compatible with previous generation
Banlaw Auto ID nozzles.
The Electronics module (BRTWSMA) on the swivel assembly can be replaced when necessary. The Wireless
Swivel is designed for Ultra-low power consumption for extended battery life.
Two LED's (green & red) on the Wireless Swivel communicate system status to the operator.
The Wireless swivel is compliant with design requirements for Explosive Atmospheres (Hazardous Zones -
ATEX).
Doc ID: PRH-FMG-76
Version: 1.0
Page 1 of 14
Please ensure you have the latest version of this document.
Advertisement
Related Manuals for BANLAW BRT33WSMA
Summary of Contents for BANLAW BRT33WSMA
- Page 1 The Banlaw SecureFill Dry-Break Auto ID Wireless Swivel, hereafter referred to as the Wireless Swivel, represents an innovative evolution of the Banlaw Dry Break “Auto ID” system. The use of wireless technology provides the same fuel security as the wired FuelTrack Dry-Break Auto ID system with up to twice the range of the wired Auto ID system.
- Page 2 BANLAW PRODUCT DATA SHEET PRODUCT NAME Operation The Wireless Swivel operates continuously and when not in use enters a sleep mode to conserve battery power. An internal accelerometer senses movement and wakes the swivel. The status of the Wireless Swivel can be determined from the two status LEDs visible through the LED status window, see Figure 2 below.
- Page 3 Statutory requirements, nor is this document meant to inform the end user of all such requirements that may apply to the use of this Banlaw system. The information within this Banlaw document was correct at the time of writing. End- users are responsible for obtaining and assessing any labels, documents or other...
- Page 4 BANLAW PRODUCT DATA SHEET PRODUCT NAME LOW FREQUENCY RECEIVER AND TRANSMITTER REGULATORY INFORMATION US - FCC Warning Statement FCC ID : 2A28Y-BRTWSMA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Specifications
BANLAW PRODUCT DATA SHEET PRODUCT NAME Australia and New Zealand Conformance Statement This product conforms to Australia and New Zealand Radio Requirements. SPECIFICATIONS Product Name SecureFill Dry Break Auto ID Wireless Swivel Display 2 status LEDs Weight 1.25 Kg RF Frequency... - Page 6 BANLAW PRODUCT DATA SHEET PRODUCT NAME CONFIGURATION The Wireless Swivel requires no configuration prior to installation. Wireless Swivel - Advanced Controller Registration Step Figure Attach the Wireless Swivel to a FuelTrack nozzle. The LED should blink red. (This indicates the swivel is powered) Attach the nozzle to the receiver (see Blue arrow).
- Page 7 BANLAW PRODUCT DATA SHEET PRODUCT NAME Step Figure Enter a Supervisor (Level 2) Pin number. Select “Done” then “Next”. Select the nozzle that the Wireless Swivel is to control. In this case it will be nozzle 1. Select “Next” The Wireless Swivel’s serial number is shown on the list.
- Page 8 BANLAW PRODUCT DATA SHEET PRODUCT NAME Step Figure Attach the nozzle to the receiver (see Blue arrow). The LED will blink green. If the LED is still red actuate the nozzle handle. (This connects the swivel to the nozzle Auto ID button).
- Page 9 BANLAW PRODUCT DATA SHEET PRODUCT NAME Step Figure Xpress starts searching for 3 seconds Wireless swivel, battery %, and tag are displayed. Note: If the required number is not displayed refer to the troubleshooting guide. Doc ID: PRH-FMG-76 Version: 1.0 Page 9 of 14 Please ensure you have the latest version of this document.
- Page 10 BANLAW PRODUCT DATA SHEET PRODUCT NAME Step Figure Verify that swivel ID matches the Serial Number on the Swivel housing and the Tag ID matches the ID on the receiver. If the swivel is not discovered, Wireless Swivel Management screen will look like on the screenshot.
- Page 11 BANLAW PRODUCT DATA SHEET PRODUCT NAME Step Figure • To add the discovered Wireless Swivel, type in nozzle number to be assigned and press “<“ button. • To remove the assigned Wireless Swivel from the nozzle, type in nozzle number and press “>” button.
- Page 12 Due to the numerous requirements that apply to a Banlaw product, the client shall liaise with Banlaw prior to the use of the product within an application that is deemed to be “uncommon”. The majority of Banlaw clients should already be familiar with Banlaw products, and the applications for which each product/system are suited.
-
Page 13: Maintenance
The maintenance options for the swivel are: Mechanical failure The Banlaw Steel Swivel is a non-serviceable item, and no attempt should be made to repair the Swivel. Should fuel leakage be detected from between the Swivel Body and Swivel Inner part, it is likely that the other components have worn sufficiently to cause the seal failure. -
Page 14: Troubleshooting
Banlaw makes no guarantees and assumes no liability for circumstances arising out of the accuracy and completeness of third-party product specifications included within this document. The verification, validation, and publishing of specifications for any product remain the responsibility of the product OEM.
