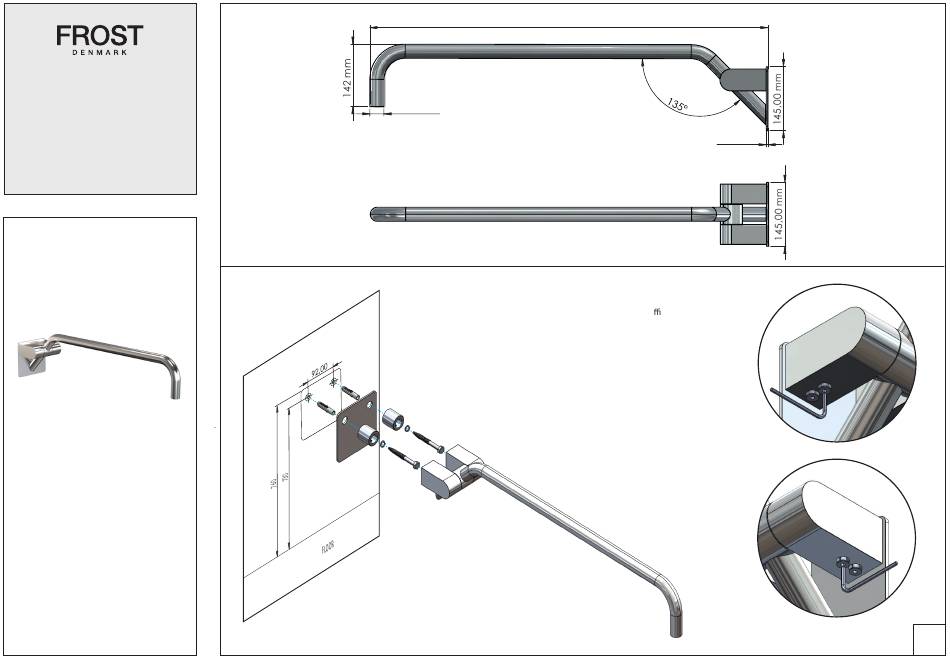

FROST NOVA2 CARE N1961 Fitting Instruction

Arm support

Advertisement

Quick Links

NOVA2 CARE
ARM SUPPORT
Fitting instruction
Montageanleitung
Monteringsvejledning
Monteringsvägledning
Montage hanleiding
Manuel de montage
N1961
Exclusion of liability
FROST accepts no liability whatsoever
for damage to persons or property that
occurs or has occurred as a result of
improper installation or maintenance,
particularly if the safety instructions
and other points to note listed are not
or have not been observed in full.
Warning and hazard notices
Improper mounting or use can lead to
accidents involving serious injuries.
784,00
32,00
mm
Before installing, the installer must ensure that the
material and strength of the wall are su cient.
FROST CARE products must be mounted on a solid or
reinforced wall.
Recommended installation height: 73 cm (bracket
holes). 76 cm (top of bracket)
Recommended user height: 80 cm (top of armrest)
If any other user height is required, simply position
the holes of the bracket 7 cm below the
required height.
mm
4,00
mm
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NOVA2 CARE N1961 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FROST NOVA2 CARE N1961

  • Page 1 Before installing, the installer must ensure that the N1961 material and strength of the wall are su cient. FROST CARE products must be mounted on a solid or reinforced wall. Recommended installation height: 73 cm (bracket holes). 76 cm (top of bracket)
  • Page 2 150 kg, following by a static overload test with 225 kg. We recommend all FROST CARE products are installed on a solid wall. Reinforcement should always be used if the wall is not stable. All tests are carried out on products mounted on a solid wall, thus we cannot guarantee the same performance and durability if this is not observed.
  • Page 3 ARM SUPPORT Bavne Allé 6E DK-8370 Hadsten +45 8761 0032 info@frost.dk www.frost.dk N1961 O1961 N1961-C N1961-GO N1961-B N1961-W Material: Stainless steel, AISI 304 Design: Bønnelycke mdd M10 x 115 Ø14 x 75 Manufacturer: FROST A/S...
