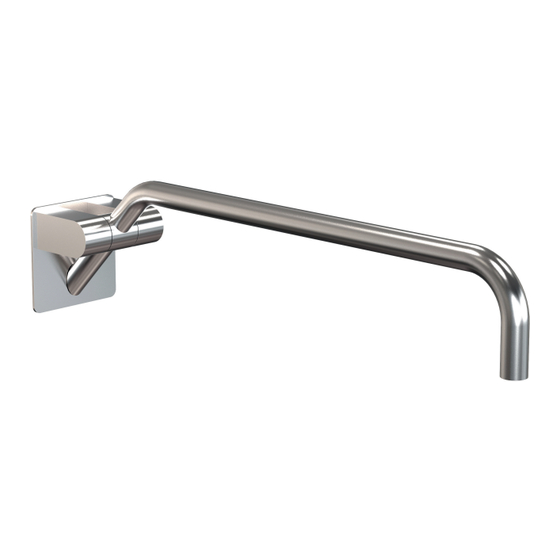

FROST NOVA2 Fitting Instruction

NOVA2 CARE
ARM SUPPORT
Fitting instruction
Montageanleitung
Monteringsvejledning
Monteringsvägledning
Montage hanleiding
Manuel de montage
N1961

Exclusion of liability

FROST accepts no liability whatsoever
for damage to persons or property that
occurs or has occurred as a result of
improper installation or maintenance,
particularly if the safety instructions
and other points to note listed are not
or have not been observed in full.

Warning and hazard notices

Improper mounting or use can lead to
accidents involving serious injuries.

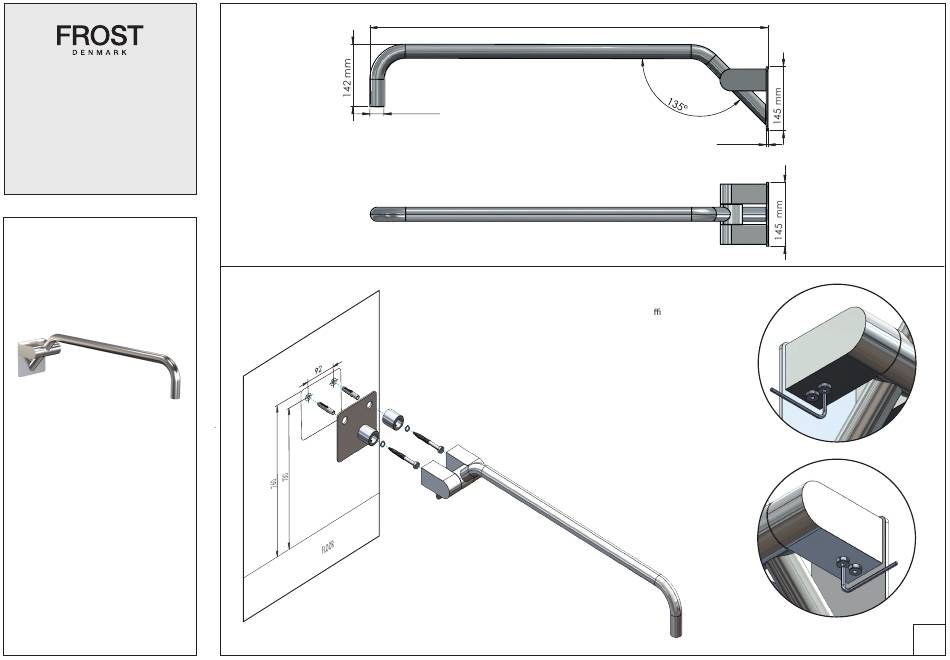

782
mm
32
mm
Before installing, the installer must ensure that the
material and strength of the wall are su cient.
FROST CARE products must be mounted on a solid or
reinforced wall.
Recommended installation height: 73 cm (bracket
holes). 76 cm (top of bracket)
Recommended user height: 80 cm (top of armrest)
If any other user height is required, simply position
the holes of the bracket 7 cm below the
required height.
4
mm
1
