AVProEdge AC-AEX-KIT Quick Start Manual

The AC-AEX-KIT is a basic solution for extending audio signals up to multichannel 5.1.
Featuring Bidirectional POC and capable of sending both analog and digital up to 100 me-
ters over traditional cat 5e and up to 130 meters over shielded cat 5e. The AEX also has a
Dual Play function, allowing simultaneous playback on both the analog and digital output,
regardless of input.

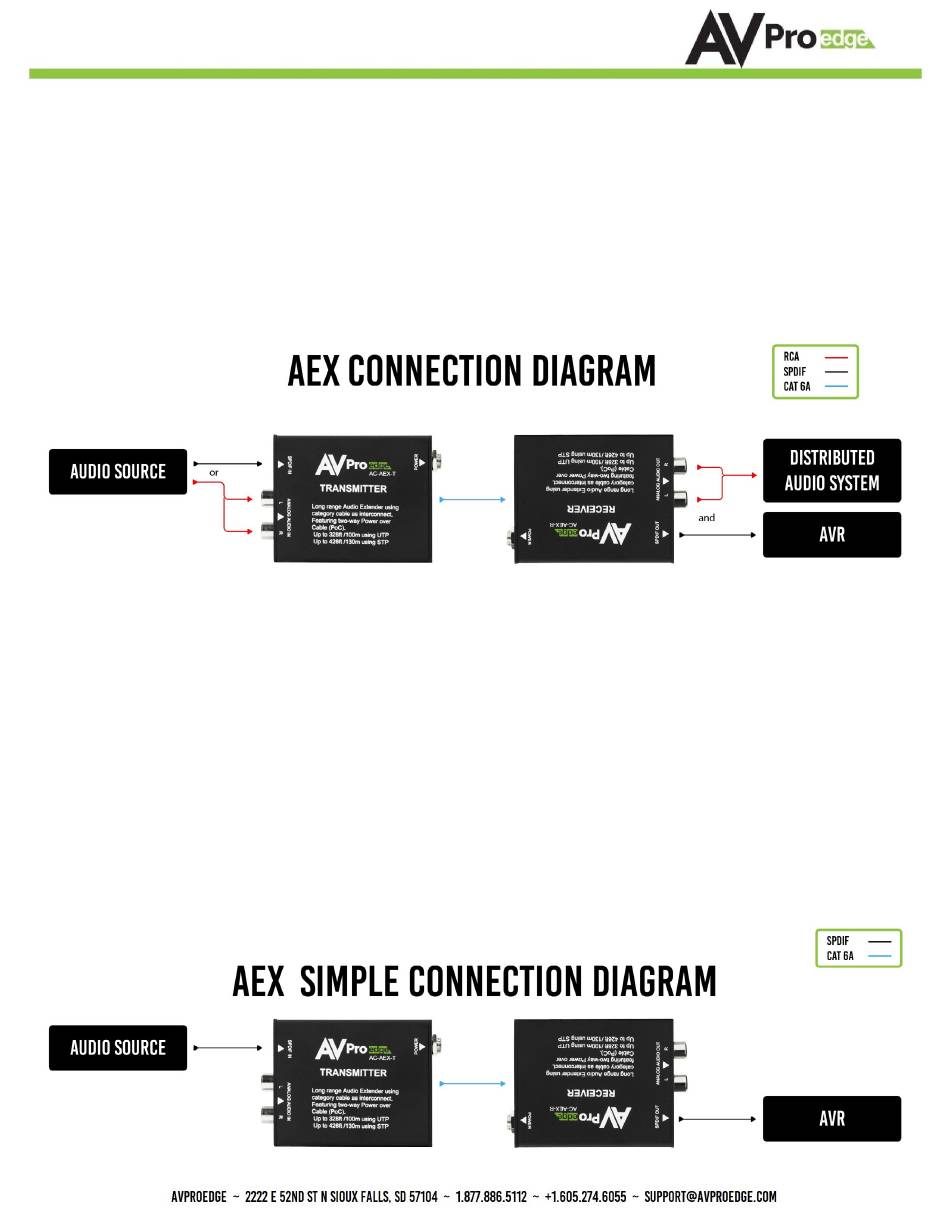

Setup

1. Connect the audio Input source to desired input on the AC-AEX-T.
2. Set the Input Source switch to the desired input on the AC-AEX-T.
3. Connect the AC-AEX-T to the AC-AEX-R using Cat 5e or better.
4. Connect the AC-AEX-R to PC or similar device using the desired audio output(s).
5. Connect power to preferred device to provide power to both devices.

Troubleshooting

- No Audio – Ensure Desired Input is selected.
- No Audio – Ensure multichannel audio does not exceed Dolby Digital 5.1.
- No POC – Try powering at other device. Ensure the Category run has not been damaged.
- No POC – Ensure distance does not exceed Cat Capabilities (100M UTP/130M STP).
AC-AEX-KIT
Quick Start Guide
1
