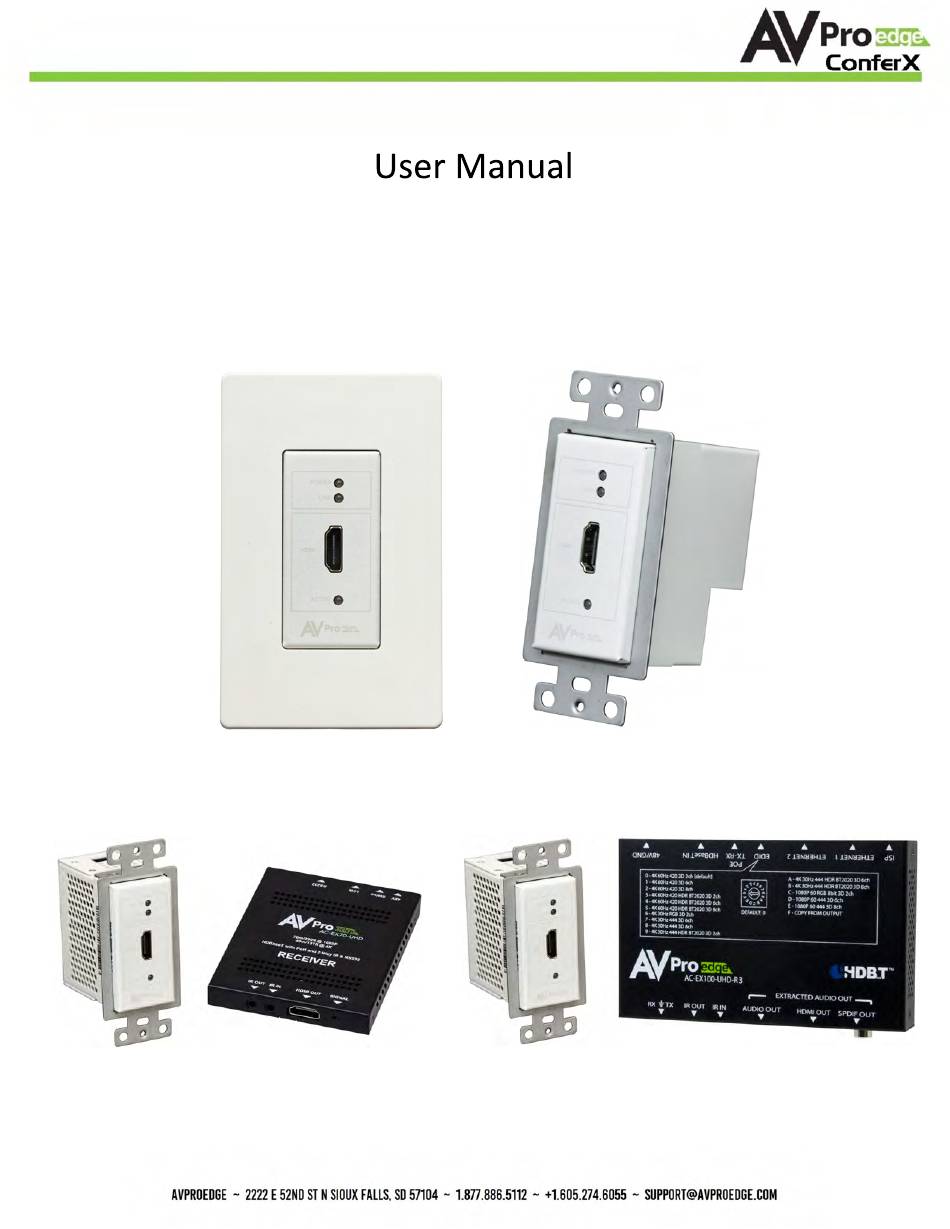

- Page 1 AC-CXWP-HDMO-T AC-CXWP-HDMO-T Single Gang, HDMI Wall plate AC-CXWP-HDMO-70KIT AC-CXWP-HDMO-100KIT Page 1...
- Page 2 AC-CXWP-HDMO-T Introduction This single gang, HDBaseT wall plate transmitter is apart of ConferX’s line of professional audio video products. Installing this sleek transmitter is a breeze as it’s built to fit in any standard single gang mug ring, but it’s sleek design is only the beginning. The AC- CXWP-HDMO-T is able to transmit an HDMI signal over CAT 6a for up to 100 meters when using 1080p, and up to 70 meters with working with 4K.
- Page 3 AC-CXWP-HDMO-T Specifications ■ Page 3...
- Page 4 AC-CXWP-HDMO-T What's in the Box? ■ AC-CXWP-HDMO-T • AC-CXWP-HDMO-T (Transmitter) • 3.5mm stereo plug to female DB9 for RS-232 to PC • 5v Power Supply (Mini USB) • 2 Mounting Screws • Decora Wall Plate Cover (White) AC-CXWP-HDMO-70KIT • AC-CXWP-HDMO-T (Transmitter) •...
- Page 5 AC-CXWP-HDMO-T Applications: This unit designed work flawlessly with VESA and traditional resolutions up to and including 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. VGA supports DCI 2K, 1080P, 1920x1200x60. In addition to its compact and robust design, transmits the digital signal up to 100 meters (328’) giving you ultimate flexibility, especially in large rooms like libraries or auditorium style rooms/classrooms.
- Page 6 AC-CXWP-HDMO-T Single Gang wall plate transmitter and No Compromises Features ■ • HDMI 2.0 Input • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support • HDR 4:2:2 12 Bit Support • HDCP 2.2 & Earlier Supported • 100M (330ft) on 1080P, Up to 70m (230ft) on 4K (Cat6a) •...
- Page 7 AC-CXWP-HDMO-T Powering the AC-CXWP-HDMO-T ■ There are 2 ways to power the unit: 1. Use a HDBaseT Receiver that provides up stream power. We recommend using the AC-EX100-UHD-R3. 2. If you will be using the unit directly into a NON PoE Provider (AVR, Projector, Display, or other HDBaseT receiver), you can power it using a 5V MINI USB Type power supply.
- Page 8 AC-CXWP-HDMO-T EDID DIAL ■ (Bottom of the Unit) Page 8...
-
Page 9: Mounting Options
AC-CXWP-HDMO-T Mounting Options ■ The AC-CXWP-HDMO-T has seemingly limitless mounting options. While it comes with the metal bracket to affix it to any Single or multi-gang Decora wall plate. The unique design with "Straight In" CAT RJ45 receptacle allows for unique mounting positions and low heat allows for side by side configurations. - Page 10 AC-CXWP-HDMO-T Sample Mounting Options ■ Multiple units: Due to the low heat design & straight in RJ45 receptacle, you can position up to 4 units together in a single wall box or mud ring. Allowing you to manage multiple display zones in a large hall, or you can route the signals to a matrix for even more control.
- Page 11 AC-CXWP-HDMO-T Sample Mounting Options ■ Podium: Mount in a podium or desk for convenient content sharing from the instructor/presenter. Page 11...
- Page 12 AC-CXWP-HDMO-T Notice AVProEdge reserves all the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this device to 6.
-
Page 13: Maintenance
AC-CXWP-HDMO-T Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 14: Warranty
AC-CXWP-HDMO-T Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... - Page 15 AC-CXWP-HDMO-T _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 15...
- Page 16 AC-CXWP-HDMO-T _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 16...
- Page 17 AC-CXWP-HDMO-T Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
