Summary of Contents for Moso SF8KTL

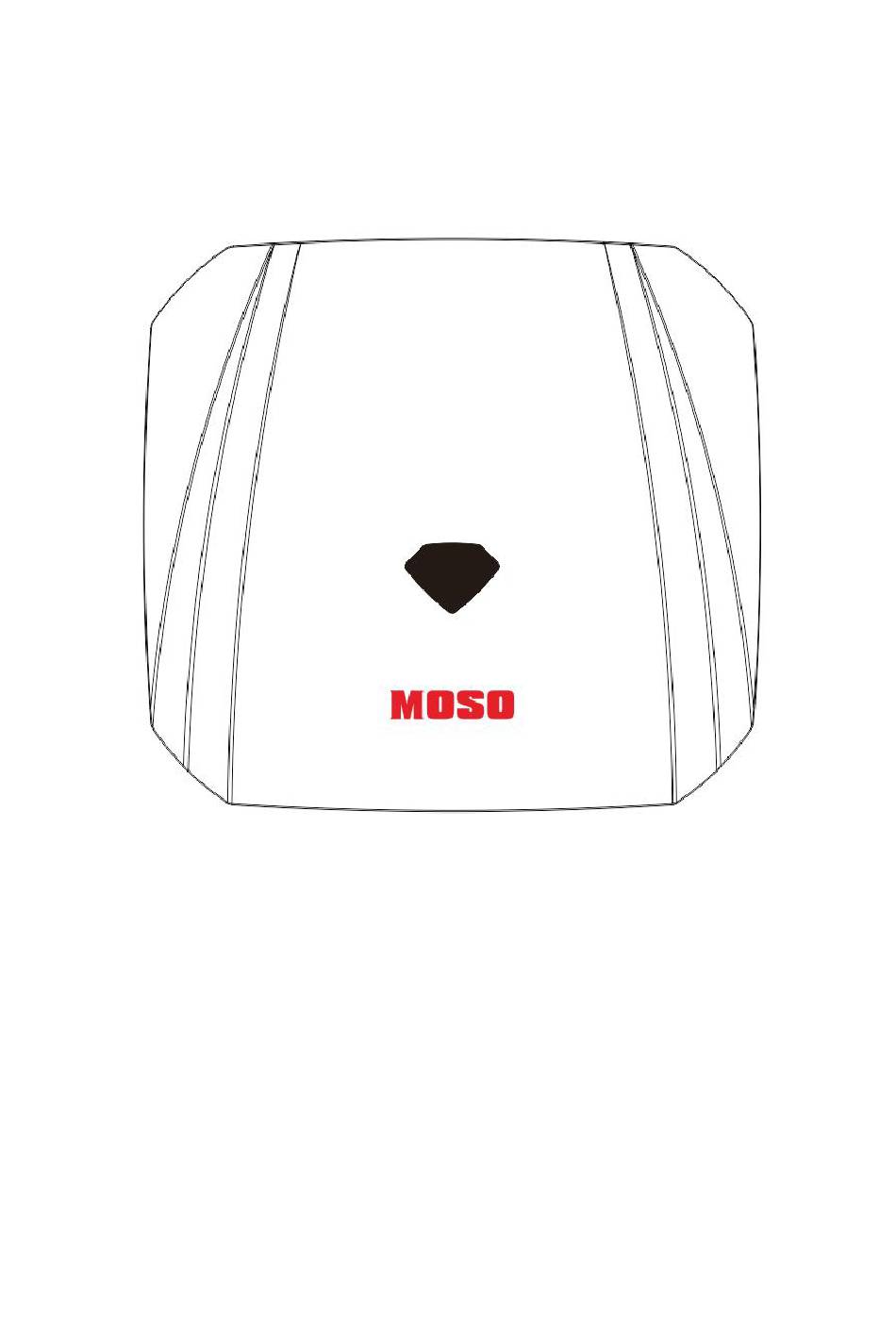

- Page 1 Solar Inverter SF8KTL...
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ................................1 1.1How to use this manual ............................1 1.2Validity ..................................1 1.3Target Group ................................1 2. SAFETY ................................... 2 2.1 Safety Instructions ............................. 2 2.2 Glossary Symbol ..............................2 3. PRODUCT INTRODUCTION ............................3 3.1 Overview .................................. 3 3.2 Type Label ................................ -
Page 5: Introduction
This manual describes the assembly, installation, commissioning and maintenance of the following inverters: SF6KTL SF7KTL SF8KTL 1.3Target Group This manual is for qualified personnel. Qualified personnel have received training and have demonstrated skills and knowledge in the construction and operation of this device. Qualified Personnel are trained to deal with the dangers and hazards involved in... -
Page 6: Safety
2. SAFETY Please read safety precautions in this manual carefully, if ignored, could result in serious injury or death. 2.1 Safety Instructions When using the product, please do remember the below information to avoid the fire, lightning or other personal injury: Ensure that input DC voltage is less than Max. -
Page 7: Product Introduction
3. PRODUCT INTRODUCTION 3.1 Overview SF8TL series 3.2 Type Label The type labels provide a unique identification of the inverter (The type of product, Device-specific characteristics, Certificates and approvals). The type labels are on the right-hand side of the enclosure. -
Page 8: Installation
4. INSTALLATION 4.1 Installation Process Installation Process of SF series，as shown in Figure 4-1。 Figure 4-1 Installation Flow chart Star Installation check Preparing Installation Tools Choose an installation location Moving inverter Installation the bracket Installation the inverter 4.2 Pre-installation check Table 4-1 Deliverables description Quantity Quantity... - Page 9 Figure 4-4 Hole positionsanddimensions(Unit :mm) Drill holes by using a hammer drill and install expansion bolts. 2. Align the bracket with hole positions, insert expansion bolts into the holes, and tighten the expansion bolts to a torque of 30 N.m using a torque wrench, as shown in Figure 4-5. Figure 4-5Securinga bracket 1、The hole in the wall 2、Plastic screw socket 3、Tapping screw Step 2Install the SF series...
-
Page 10: Electrical Connection
5.ELECTRICAL CONNECTION 5.1 Electrical connection process Electrical connection process of SF series as shown in Figure 5-1。 Figure 5-1 Electrical connection flowchart Connecting AC output Cables Start Connecting PGND Cables （PE） Connecting DC Input Cables 5.2 Connecting PGND Cables（PE） Good grounding for the SF series can help resist the impact of the surge voltage and improve the EMI performance. First connect the PGND cable before connecting the AC power cable, DC power cable, and communication cable. - Page 11 Connecting an AC output power cable (1) (unit: mm) Figure 5-4 Step 3 Insert AC output cable (L, N, PE) into the cable gland and the adapter, as shown in Figure 5-6. Connecting an AC output power cable (2) Figure 5-5 Step 4 Loosen the screws inside the coupling nut holes using a screwdriver, insert the core wires into corresponding holes, and tighten the screws, as shown in Figure 5-6.
-
Page 12: Connecting Dc Input Power Cables
5.4 Connecting DC Input Power Cables Before connecting the DC input cable, please make sure that the Inverter “DC SWITCH” in the “OFF” status, otherwise, the high voltage can bring about life threatening. Table 5-2 Recommended DC input cable specifications Conductor cross-section（mm2）... -
Page 13: Disconnect The Electrical Connections
1. Bayonet 5.5 Disconnect the electrical connections Step 1 Disconnect the circuit breaker between the inverter and the grid. Step 2 Ensure that the DC SWITCH is OFF. Step 3 Disconnect the RS485 communication cable. Step 4 Disconnect the DC input cable. Step 5 Disconnect the AC input cable. -
Page 14: System Operation
6. SYSTEM OPERATION 6.1 Operating mode SF series has three working mode: standby mode, operating mode, off mode. 6.2 Powering on the SF series After ensure that electrical connections have been completed correctly, run the operation of power-on, then turn on the inverter. Step 1Check that the SF series is installed on the wall correctly and securely. -
Page 15: Ac Output
A.2 AC Output Model SF6KTL SF7TL SF8TL Rated Output Power 6000W 7000W 8000W Max AC Output Power 6600W 7700W 8000W Max Output Current Output Voltage 220/230/240 VAC 220/230/240 VAC 220/230/240 VAC Grid Frequency 50/60Hz 50/60Hz 50/60Hz Power Factor(cosΦ) 0.8Lead…0.8Lag 0.8Lead…0.8Lag 0.8Lead…0.8Lag Harmonics <3%...
