Unilamp SABER/1 Quick Start Manual

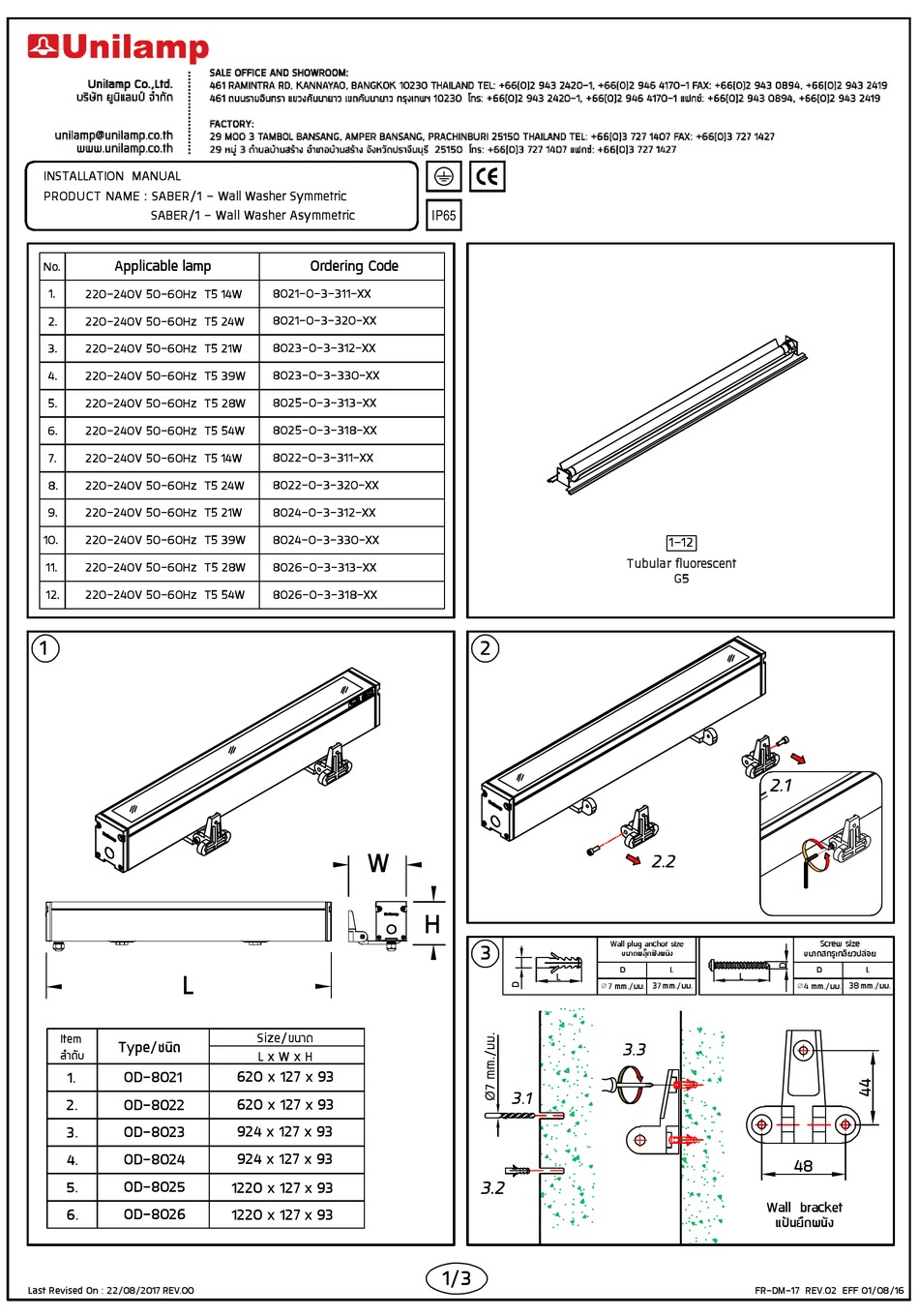

INSTALLATION MANUAL

PRODUCT NAME : SABER/1 - Wall Washer Symmetric
SABER/1 - Wall Washer Asymmetric

Applicable lamp

No.
1. 220-240V 50-60Hz T5 14W
2. 220-240V 50-60Hz T5 24W
3. 220-240V 50-60Hz T5 21W
4. 220-240V 50-60Hz T5 39W
5. 220-240V 50-60Hz T5 28W
6. 220-240V 50-60Hz T5 54W
7. 220-240V 50-60Hz T5 14W
8. 220-240V 50-60Hz T5 24W
9. 220-240V 50-60Hz T5 21W
10. 220-240V 50-60Hz T5 39W
11. 220-240V 50-60Hz T5 28W
12. 220-240V 50-60Hz T5 54W
1
L
Item
Type/ชนิ ด
ลํ า ดั บ
OD-8021
1.
OD-8022
2.
OD-8023
3.
4. OD-8024
5. OD-8025
OD-8026
6.
Last Revised On : 22/08/2017 REV.00
Ordering Code
8021-0-3-311-XX
8021-0-3-320-XX
8023-0-3-312-XX
8023-0-3-330-XX
8025-0-3-313-XX
8025-0-3-318-XX
8022-0-3-311-XX
8022-0-3-320-XX
8024-0-3-312-XX
8024-0-3-330-XX
8026-0-3-313-XX
8026-0-3-318-XX
W
Size/ขนาด
L x W x H
620 x 127 x 93
620 x 127 x 93
924 x 127 x 93
924 x 127 x 93
1220 x 127 x 93
1220 x 127 x 93
IP65
2
H
3
L
3.1
3.2
1/3
1-12
Tubular fluorescent
G5
2.1
2.2
Wall plug anchor size
ขนาดพลุ  ก ฝ ง ผนั ง
D L
L
∅
7 mm./มม. 37 mm./มม.
3.3
Wall bracket
FR-DM-17 REV.02 EFF 01/08/16
Screw size
ขนาดสกรู เ กลี ย วปล อ ย
D L
∅
4 mm./มม. 38 mm./มม.
48
แป น ยึ ด ผนั ง
