Unilamp Maxi CORE OD-4102 Installation Manual

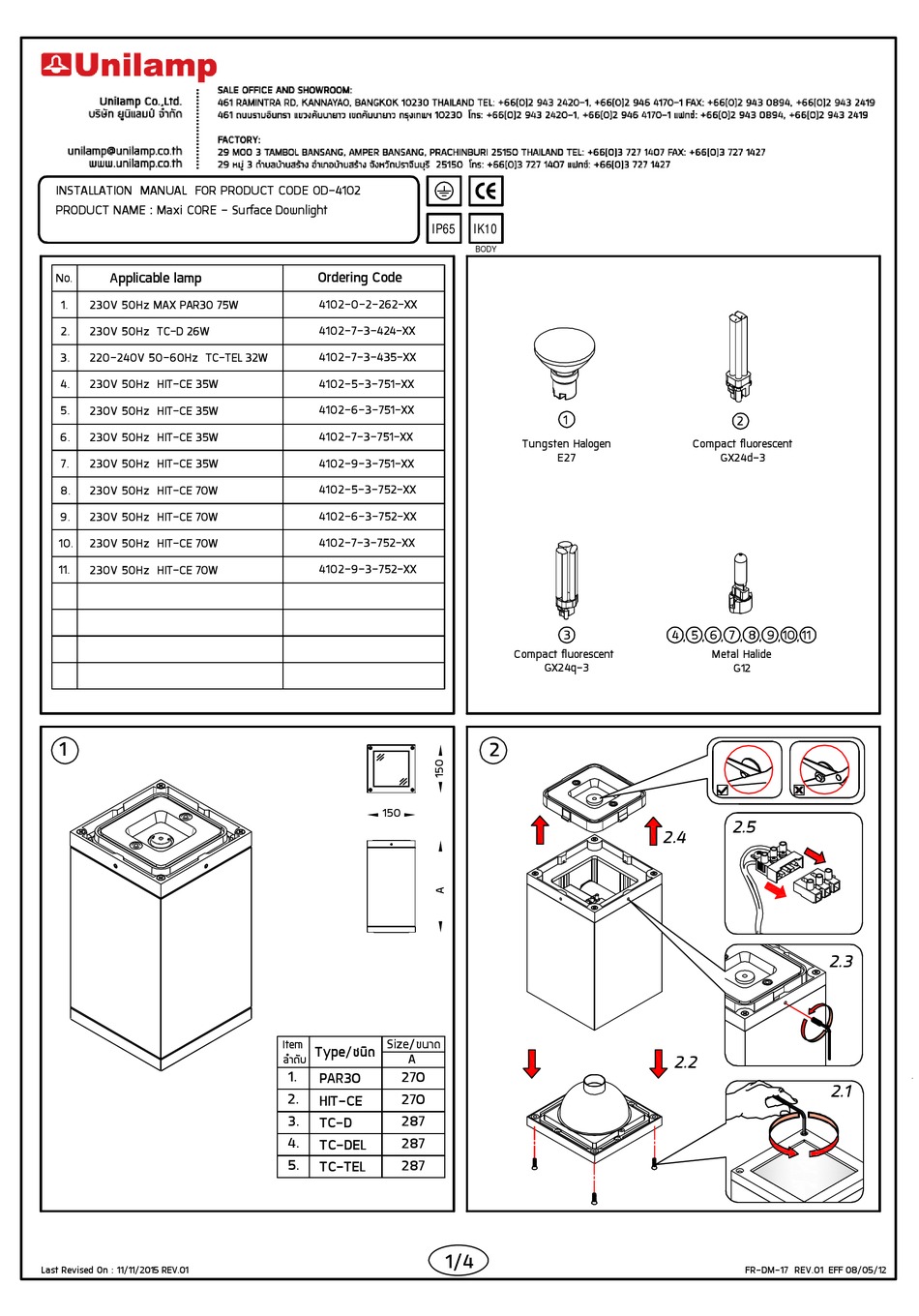

INSTALLATION MANUAL FOR PRODUCT CODE OD-4102

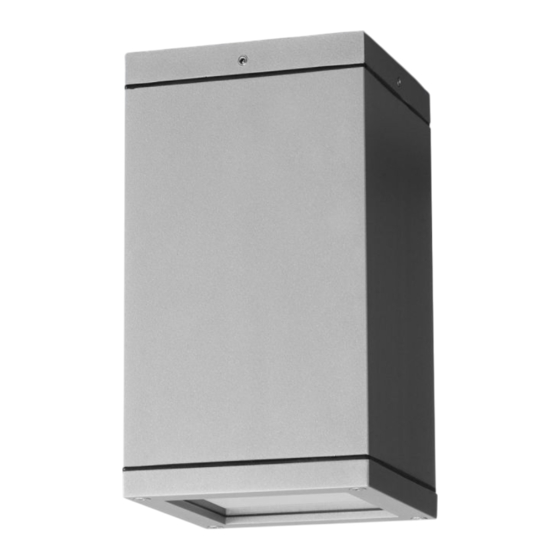

PRODUCT NAME : Maxi CORE - Surface Downlight
Applicable lamp
No.
1. 230V 50Hz MAX PAR30 75W
2. 230V 50Hz TC-D 26W
3. 220-240V 50-60Hz TC-TEL 32W
4. 230V 50Hz HIT-CE 35W
5. 230V 50Hz HIT-CE 35W
6. 230V 50Hz HIT-CE 35W
7. 230V 50Hz HIT-CE 35W
8. 230V 50Hz HIT-CE 70W
9. 230V 50Hz HIT-CE 70W
10. 230V 50Hz HIT-CE 70W
11.
230V 50Hz HIT-CE 70W
1
Last Revised On : 11/11/2015 REV.01
IP65
Ordering Code
4102-0-2-262-XX
4102-7-3-424-XX
4102-7-3-435-XX
4102-5-3-751-XX
4102-6-3-751-XX
4102-7-3-751-XX
4102-9-3-751-XX
4102-5-3-752-XX
4102-6-3-752-XX
4102-7-3-752-XX
4102-9-3-752-XX
150
Size/ขนาด
Item
Type/ชนิ ด
A
ลํ า ดั บ
1. 270
PAR30
2. 270
HIT-CE
3.
287
TC-D
4.
287
TC-DEL
5.
287
TC-TEL
1/4
IK10
BODY
1
Tungsten Halogen
E27
3
Compact fluorescent
GX24q-3
2
2
Compact fluorescent
GX24d-3
4 5 , 6 , 7 , 8 , 9 10 , 11 ,
,
Metal Halide
G12
2.5
2.4
2.3
2.2
2.1
FR-DM-17 REV.01 EFF 08/05/12
