Unilamp Maxi CORE Installation Manual

INSTALLATION MANUAL

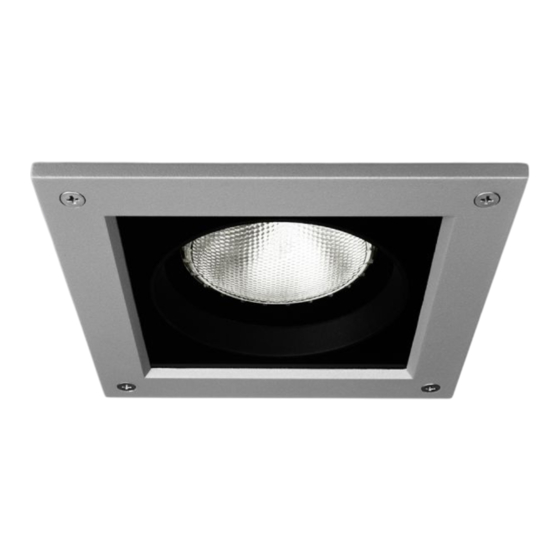

PRODUCT NAME : Maxi CORE - Recess Downlight / Frost Glass
Maxi CORE - Recess Downlight / Clear Glass
Applicable lamp
No.
1. 230V 50Hz MAX PAR30 75W
2. 220-240V 50Hz TC-TEL 32W
3. 230V 50Hz HIT-CE 35W
4. 230V 50Hz HIT-CE 70W
5. 230V 50Hz HIT-CE 35W
6. 230V 50Hz HIT-CE 70W
7. 230V 50Hz HIT-CE 35W
8. 230V 50Hz HIT-CE 70W
9. 230V 50Hz HIT-CE 35W
10. 230V 50Hz HIT-CE 70W
1 1
Last Revised On : 14/11/2023 REV.04
IP65
Ordering Code
7321/7322-0-2-262-XX
7321/7322-7-3-435-XX
7321/7322-7-3-751-XX
7321/7322-7-3-752-XX
7322-5-3-751-XX
7322-5-3-752-XX
7322-6-3-751-XX
7322-6-3-752-XX
7322-9-3-751-XX
7322-9-3-752-XX
150
192
1/4
1
Compact fluorescent
Tungsten Halogen Reflector /
Led Retrofit Lamp
E27
2.5
2
2 3-10
Metal halide Lamp
GX24q-3 G12
2.1
2.2
2.3
2.4
