Summary of Contents for AJA OG-FiDO-12G Series

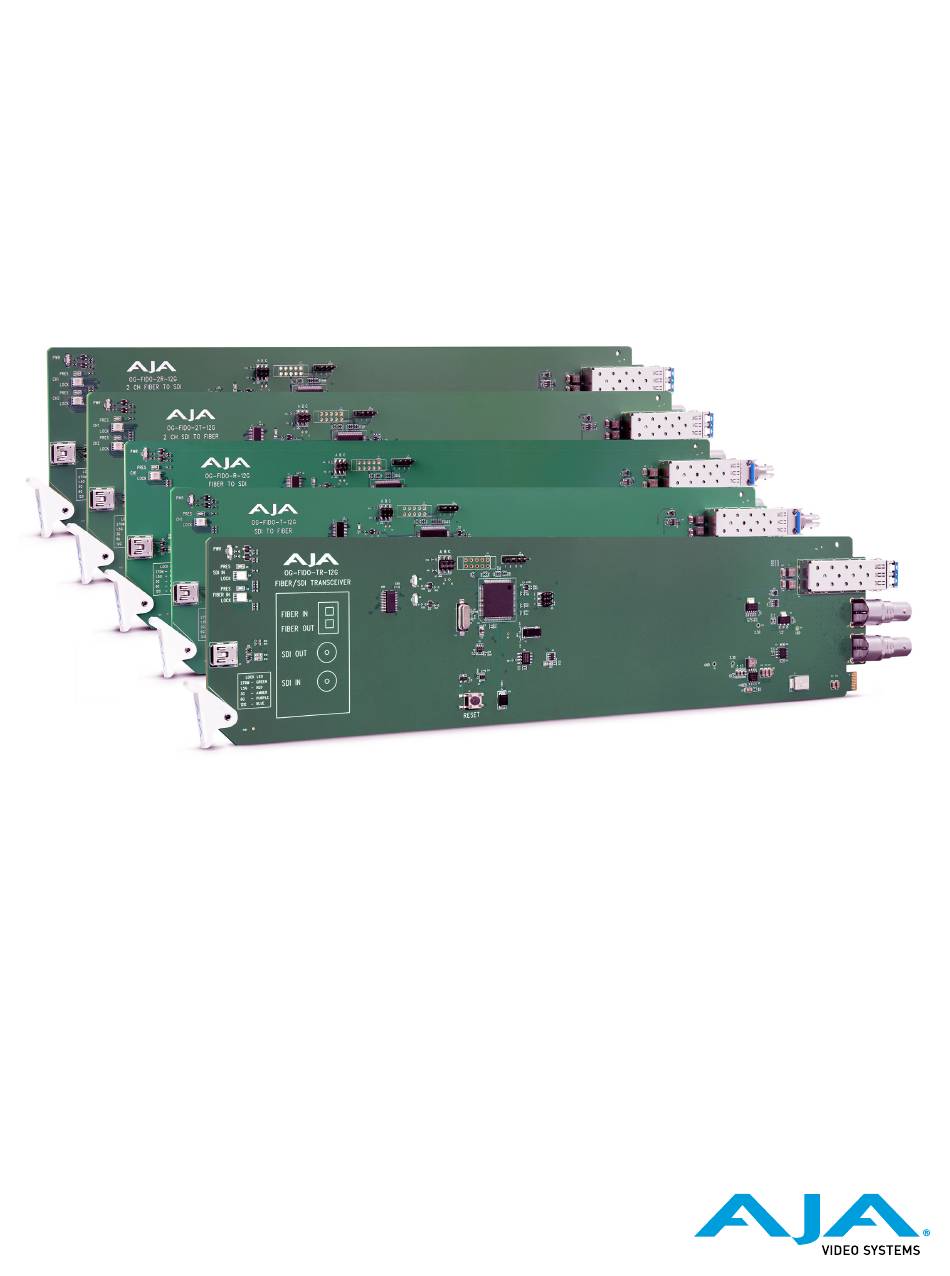

- Page 1 OG-FiDO-12G-Series openGear Card Installation and Operation Guide Version 3.2.1 Published April 14, 2022...
-
Page 2: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. -
Page 3: Table Of Contents
AJA ........12... -
Page 4: Chapter 1 - Og-Fido-12G-Series
NOTE: In order to allow direct fiber connection to the card, and avoid problematic optical couplers, AJA FiDO openGear cards have the SFP cage attached to the front card. This means that the card cannot be removed from the frame with the SFP module, cables, and/or BNC retaining nuts installed. -
Page 5: Features
• Remote Ethernet Monitoring and Firmware Updating through Ross DashBoard software • Appropriate Fiber SFP included • Rear I/O card included • Two slots required for each card • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames • Five year warranty OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 6: Connectors
• Yellow: a yellow DashBoard card state alarm is present. See DashBoard for more information. • Red: a red DashBoard card state alarm is present. See DashBoard for more information. Pres LED • Ch 1 signal present (green) • Ch 2 signal present (green) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... - Page 7 • Yellow: a yellow DashBoard card state alarm is present. See DashBoard for more information. • Red: a red DashBoard card state alarm is present. See DashBoard for more information. Pres LED • Ch 1 signal present (green) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 8: Block Diagram
Out 1 Optical 12G-SDI Equalize & Optical Fiber Reclock Transmitter Input 2 Out 2 OG-FiDO-2R-12G Optical 12G-SDI Optical Reclock Fiber Receiver Output 1 Input 1 Optical 12G-SDI Optical Fiber Reclock Output 2 Receiver Input 2 OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 9: Signal Indicators In The Dashboard Control System
NOTE: The description above for one SDI input and one fiber input applies only to the TR model. The other cards in this series are very similar in their behavior with respect to signal status indicators. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... - Page 10 NOTE: The description above for one SDI input and one fiber input applies only to the TR model. The other cards in this series are very similar in their behavior with respect to signal status indicators. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 11: User Controls
The OG-FiDO-12G-Series cards can be used right out of the box for many applications, since they are designed to recognize inputs and perform standard actions automatically. However, you can also remotely monitor the OG-FiDO-12G-Series through the DashBoard Control System for an openGear Frame. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 12: Dashboard Control System
Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA. Ross Video manufactures the frames, power supplies and network cards for openGear. AJA is a reseller of the openGear frames. -
Page 13: Unpacking
6. Ensure the Rear Card aligns with the desired card slot before tightening the screw. NOTE: To correctly orient the rear panel, make sure that the AJA logo is facing out. 7. Using a Phillips screwdriver, fasten the Rear Card to the frame back plane. -
Page 14: Front Og-Fido-12G-Series Card Installation
Figure 7. The card on the left is already fully inserted. The card on the right is not yet fully inserted, as indicated by the white plastic tab tilting forward. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... - Page 15 Figure 9. BNC Star Washer and Nut Installation 9. Insert the SFP fiber module into the socket until it clicks and locks. The lever handle is on the left (Figure 10). Figure 10. Fiber SFP Installation OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 16: Cabling
Figure 1 on page 6 Figure 2 on page 6 to identify the input and output signal connectors. NOTE: Keep the protective dust cap in the SFP module until the fiber cabling is actually connected to the module. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 17: Chapter 2 - Operation
• Ethernet connection between the controlling computer and the openGear frame NOTE: The openGear frame ships from AJA with the MFC-8322-S Frame Controller card for controlling the new AJA DashBoard cards. The openGear frame also supports the MFC-0G3-N Advanced Networking Frame Controller card, which can be used to control compatible OG cards. -
Page 18: Basic Tree View Of Frames And Cards
DashBoard. The yellow fields in this panel indicate that they are read-only. Parameter Controls The parameter controls panel on the right side of DashBoard shows the tabs and parameters that are configurable for the selected card. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 19: Card Tab Screen
Figure 13. OG-FiDO-12G-Series Card Tab Screen in DashBoard The Card tab screen indicates the basic information about the card itself such as the card name, hardware status, product, supplier, assembly, serial number, software version and other items. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 20: Signal Status Tab Screen
NOTE: The description above for one SDI input and one fiber input applies only to the TR model. The other cards in this series are very similar in their behavior with respect to signal status indicators. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 21: Sfp Tab Screen
The SFP fields report on the following aspects of the SFP: • Vendor Part Number • Vendor Name • RX Power (as applicable for the specific card) • TX Power (as applicable for the specific card) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 22: Setup Tab Screen
DashBoard Control System by following the steps below. To Upload New Software 1. Check the AJA website for new software for your OG-FiDO-12G-Series. If new software is found, download it and uncompress the file archive (zip). 2. Click the Upload button in the lower panel of the DashBoard Control System to open the Upload Software Wizard. - Page 23 4. Navigate to the location of the downloaded .bin file containing the software update. Select the .bin file, then select Open. The Upload Software Wizard window displays characteristics of the selected file for uploading. 5. Click Finish. The uploading process begins. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 24 6. When the progress bar indicates that the uploading is finished and status indicates "Complete," click OK. 7. To verify the version of software or firmware currently installed on your card, select the Card tab from the center panel of DashBoard. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 25: Rebooting
2. Click Yes. The message "Loading data, please wait. Refreshing device data" displays for a moment. The card will be offline for a few seconds. However, the video signal will not flicker or go black during a reboot. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... - Page 26 Figure 21. The OG-FiDO-12G-Series briefly pauses operations while rebooting 3. Following a Reboot operation, the board configuration will return to the settings that were in place at the time of rebooting. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 27: Appendix A - Specifications
• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 28: Og-Fido-T-12G-St
• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 29: Og-Fido-R-12G-St
• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% non-condensing • Operating Altitude: <3,000 meters (<10,000 feet) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 30: Og-Fido-2T-12G
• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 31: Og-Fido-2R-12G
• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... -
Page 32: Appendix B - Safety And Compliance
Community throughout this document: AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com... - Page 33 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 34 Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 35 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 36 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 37 Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 38 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
- Page 39 Avvertenza! I cavi a fibre ottiche emettono radiazioni invisibili all’occhio umano. Non guardare direttamente l’estremità di un cavo in fibra ottica attivo o il connettore in fibra su un OG-FiDO-2T-12G, OG-FiDO-TR-12G, OG-FiDO-T-12G-ST; questi modelli sono prodotti laser di classe 1. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
- Page 40 Aviso! Certifique-se que a fonte principal de energia elétrica está desconectada antes de instalar os módulos OG-FIDO-12G Series no bastidor ou antes de instalar e remover opções. Se o interruptor principal não existir, o cabo elétrico deste equipamento proporciona o meio de desconexão. A tomada elétrica deverá ser instalada perto do equipamento e deverá...
- Page 41 Cuidado! Para atender aos regulamentos de segurança para correntes de fuga, conecte as fontes duplas a circuitos elétricos separados. Attenzione! Per soddisfare le norme di sicurezza sulla corrente di perdita, collegare i doppi alimentatori a circuiti derivati separati. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 42: Warranty And Liability Information
AJA Video shall pay to return the product to Customer, but only if to a location within the country in which the AJA Video service center is located. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU. - Page 43 English and any non-English versions, the English version of this warranty will govern. This limited warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction, some of which are noted above. OG-FiDO-12G-Series openGear Card v3.2.1 www.aja.com...
-
Page 44: Index
Signal Status Tab Screen 20 Uploading New Software 22 Using 17 Installation 12 Cabling 16 Front Card Installation 14 openGear and AJA 12 Rebooting 25 Setup Tab Screen 22 SFP Tab Screen 21 Signal Indicators DashBoard Control System 9 Signal Status Tab Screen 20...
