Daikin RKM33NV2S Service Manual page 7

Si001272EC
Step

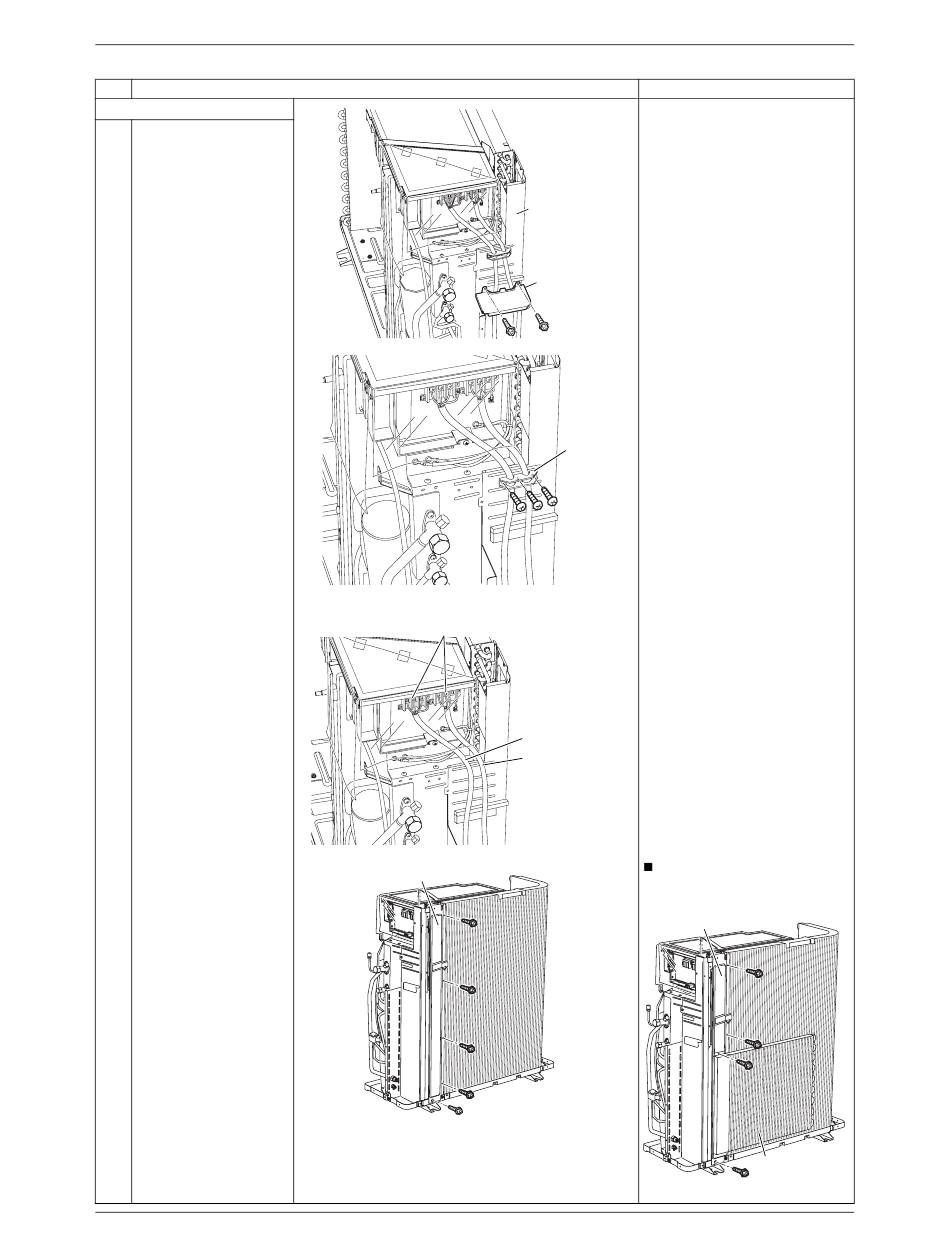

5. Remove the rear panel.
1 Remove the 2 screws
on the partition plate
(2).
2 Lift up slightly and
remove the partition
plate (2).
3 Remove the 3 screws,
and then the wire
fixture.
4 Remove the 7 screws
of the terminal block.
5 Detach the connecting
wire and the power
supply wire.
6
Remove the 5 screws.
Removal Procedure
All manuals and user guides at all-guides.com
Procedure
Terminal block
Rear panel
Rear panel
Partition
plate (2)
(R16720)
Wire
fixture
(R18882)
Connecting wire
Power supply wire
(R23987)
When the unit has an
auxiliary heat exchanger,
remove the 4 screws.
Rear panel
(R18043)
Outer Panels
Points
Auxiliary heat
exchanger
(R18883)
5
