Summary of Contents for Walkera R400

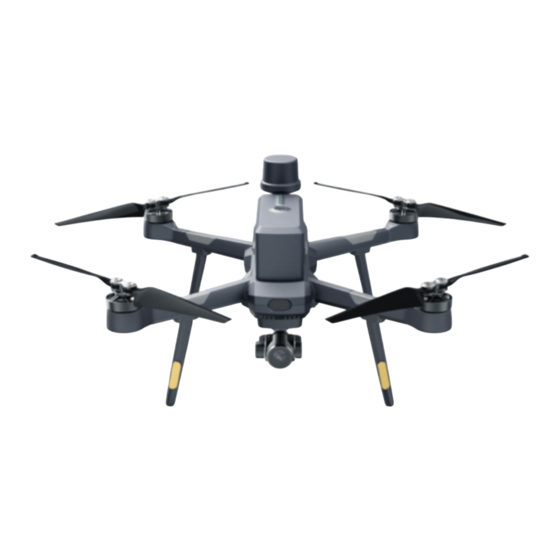

- Page 1 RTK positioning | 4K HD camera QUICK START GUIDE V1.0 June 30, 2021 www.walkera.com...
-
Page 3: Table Of Contents
2.0 Get to know your Remote Controller 3.0 Specifications 4.0 Attention Before Flight 5.0 Check Battery Levels 6.0 Charging 7.0 Download and install R400 APP 8.0 APP Interface Instructions 9-10 9.0 Prepare for Remote Controller 10.0 Prepare for Aircraft 11.0 Ready for Flight 11.1 Starting the aircraft &... - Page 4 * 1) To avoid property loss and personal injury caused by wrong operation, please read the manual carefully, upgrade the firmware and calibrate the related items by watching the tutorial video at www.walkera.com before using R400. 2) Rotating propellers can be dangerous. Do not start the motors when there are people nearby.
-
Page 5: Get To Know Your Remote Controller
3.0 Get to know your Remote Controller The remote control uses 2.4GHz & 5.8GHz dual-frequency long-distance digital encryption transmission technology, which can display high-definition images on mobile devices in real time through the R400 APP, and the folding bracket can stably place the mobile phone. -
Page 6: Specifications
R400 Walkera All Rights Reserved Quick Start Guide 3.0 Specifications Aircraft Symmetrical Motor Wheelbase 420mm Dimensions(L x W x H) 461× 461× 221mm Motor KV value 650rpm/V Continuous current 45A Propeller Specifications Diameter× pitch: 11× 4.5 inch Standard Take-off Weight 1.5kg... -
Page 7: Attention Before Flight
R400 Walkera All Rights Reserved Quick Start Guide Camera Sensor SONY : 1 / 2.7 inch CMOS; effective pixels 2 million Lens FOV86°; equivalent 24mm focal length; f/2.6 aperture Photographing Support 41 million pixels, 32 million pixels, 21 million pixels, 16 million pixels... -
Page 8: Check Battery Levels
R400 Walkera All Rights Reserved Quick Start Guide 5.0 Check Battery Levels Remote control: Press and hold the power switch for 2~ 3 seconds to turn on the remote control (repeat this operation to turn off the remote control), and check the battery level on the LCD display. -
Page 9: Download And Install R400 App
R400 APP download 8 .0 APP Interface Instructions On this interface, you can preview the real-time high-definition video and photos taken by the R400, and dynamically set the parameters of the aircraft, remote control, gimbal, and battery. 2.4G Pose Mode... -
Page 10: Prepare For Aircraft
R400 Walkera All Rights Reserved Quick Start Guide 17)Flight status parameters: 12)Setting: Click the icon“ ”to open the Setting menu, Distance(D): horizontal distance between aircraft and Normal setting, aircraft, remote control, gimbal and battery returning point. can be set. Height(H): vertical distance between aircraft and returning 13)Camera settings: Touch the “... -
Page 11: Ready For Flight
R400 Walkera All Rights Reserved Quick Start Guide When controlling the aircraft, be sure to keep the aircraft within the best communication range. Adjust the position or distance between the controller and the aircraft in time to ensure that the aircraft is always within the best communication range. -
Page 12: Connect The App
Quick Start Guide 11.2 Connect the APP 1) Click the "R400" icon on the main page of the remote control system. 2) Touch "Select Device";Click the device name that matches the device on board the aircraft; then click "Enter Connection". -
Page 13: Flight Control
R400 Walkera All Rights Reserved Quick Start Guide 12.0 Flight control Attentions: 1) Ensure that the satellite positioning signal has been received (check the RTK satellite positioning status in the APP). 2) O nly when “ Connected ” displays on the upper bar of the main interface of the APP, you can perform APP operation. - Page 14 R400 Walkera All Rights Reserved Quick Start Guide 12.4 Auto Landing When the aircraft' s flight mode is in positioning mode (the remote controller' s flight mode switch is at the midpoint "GPS"), turn the remote controller' s automatic take-off and landing switch "A" to the bottom, and the aircraft will land automatically. After landing on the ground, the motor automatically stops.
- Page 15 R400 Walkera All Rights Reserved Quick Start Guide 12.7 Route Flight and Route planning You can only enter the route flight and route planning interfaces when the aircraft is in GPS mode. Route flight (operate in APP map interface) Route planning (operate in APP map interface)
-
Page 16: Gimbal Control
R400 Walkera All Rights Reserved Quick Start Guide Horizontal distance between aircraft and Home point > 30m or < 30m Altitude difference from home point > 40m Horizontal distance between aircraft and Home point > 30m Descend vertically Altitude difference Elevate from home point <... -
Page 17: Camera Control
R400 Walkera All Rights Reserved Quick Start Guide Turn the right dial of the remote control to the right or left 0° + 40° Horiz o ntal angle (YAW ) Pose Mode 2.4G 03:58:45 Connected 4.30 m -40° 4.30 m Swipe left or right on the returned screen on the APP main interface. -
Page 18: End Flight
R400 Walkera All Rights Reserved Quick Start Guide Attention: 1) When video recording, it is not possible to switch the Auto mode and Manual mode; in the Auto mode,the exposure compensation(EV) can be adjusted only; in the Manual mode, the sensitivity(ISO)value and the exposure compensation(EV) can be adjusted, and the shutter speed(Expose)value cannot be adjusted. -
Page 19: Forward Obstacle Avoidance System
R400 Walkera All Rights Reserved Quick Start Guide 16.2 Forward obstacle avoidance system Turn on automatic obstacle avoidance operation First turn the flight mode switch "S" on the left side of the remote control to the midpoint (GPS mode) position, and then press the red arrow as shown in the figure to switch the obstacle avoidance function. - Page 20 R400 Walkera All Rights Reserved Quick Start Guide The remote control joystick mode and joystick calibration have been set at the factory. If you need to switch and calibrate, please refer to the following methods; Be sure to turn off the power of the aircraft or lock the motors before operation.
-
Page 21: Flight Battery Safety Guidelines
2) Never use non-walkera batteries. Go to www. walkera.com to purchase new batteries. Walkera takes no responsibility for any damage caused by non-walkera batteries. 3) Never use or charge swollen, leaky, or damaged batteries. If your batteries are abnormal,contact Walkera or a walkera authorized dealer for further assistance. - Page 22 R400 Walkera All Rights Reserved Quick Start Guide...
- Page 24 Manufacturer: Guangzhou Walkera Technology Co.,Ltd. Add: No.48 Wantai Rd, Taishi Industrial Park, Dongchong Town, Nansha Dist, Guangzhou, China.511453 Hotline: +86 20-84915115 This manual is subject to update without prior written notice. Please refer to Walkera official website for latest version.
