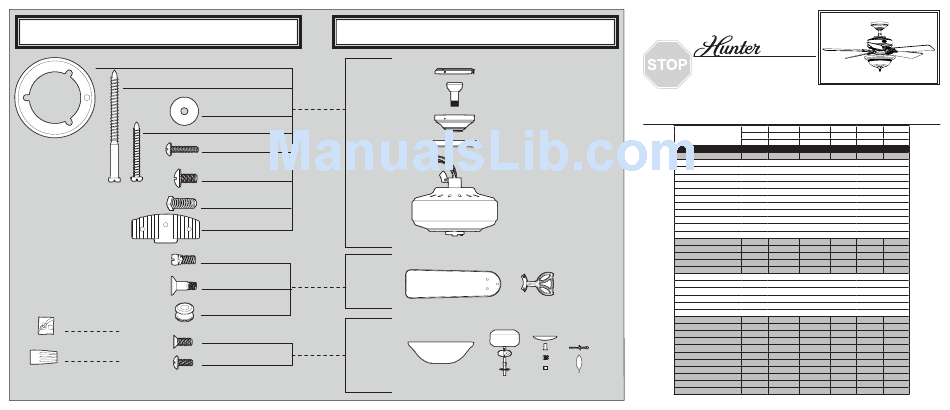

Hunter 28035 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
Low Profile
Washer
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Screw, Low
Profile
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Screw, Blade
Blade
Assembly
Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Switch
Housing
Screw,
Assembly
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 28035 28036

Parts List

Asm. Dwg. # 99156-01 99156-02
Finish Brushed Nickel Provencal Gold
Item Name Qnty
Hanger Bracket Assembly 1 96759-09 96759-26
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Wood Screw
Flat Washer
Screw, Low Profile
Switch Housing Assembly 1 99134-09 99134-26
Blade Iron Set 1 92803-07 92803-07
Blade Set 1 74296-55 74296-48
Light Kit Assembly 1 96942-02 96942-02
Hardware Kit 1 99156-00-860 99156-00-861
Screw, Blade Iron Armature
Rubber Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 07570-01 07570-01
Globe/Shade 1 84602-02 84602-01
Pull Chain 2 63756-43 63756-43
Pull Chain 1 63756-18 63756-18
Bottom Cap 1 64349-02 64349-02
Finial 1 64350-02 64350-02
Switch Housing Cover 1
73853-01 73853-01
Switch Housing Plug Button 1 73854-01 73854-01
Dummy Terminal, Male 1 08198-01 08198-01
Dummy Terminal, Female 1 08200-01 08200-01
Light bulb / Bulb 2 77646-04 77646-04
Hunter Fan Company • 7130 Goodlett Farms Pkwy #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-965 09-28-2009 •
28037 28038 28039
99156-03 99156-04 99156-05
New Bronze Estate Brass White
96759-30 96759-74 96759-03
99134-30 99134-74 98840-03
92803-07 92803-07 92803-07
75006-55 75516-90 74408-56
96942-02 96942-02 96942-02
99156-00-862 99156-00-863 99156-00-864
07570-01 07570-01 07570-01
84602-06 84602-07 84602-06
63756-43 63756-43 63756-43
63756-18 63756-18 63756-18
64349-02 64349-02 64349-02
64350-02 64350-02 64350-02
73853-01 73853-01 73853-01
73854-01 73854-01 73854-01
08198-01 08198-01 08198-01
08200-01 08200-01 08200-01
77646-04 77646-04 77646-04
2009
©
