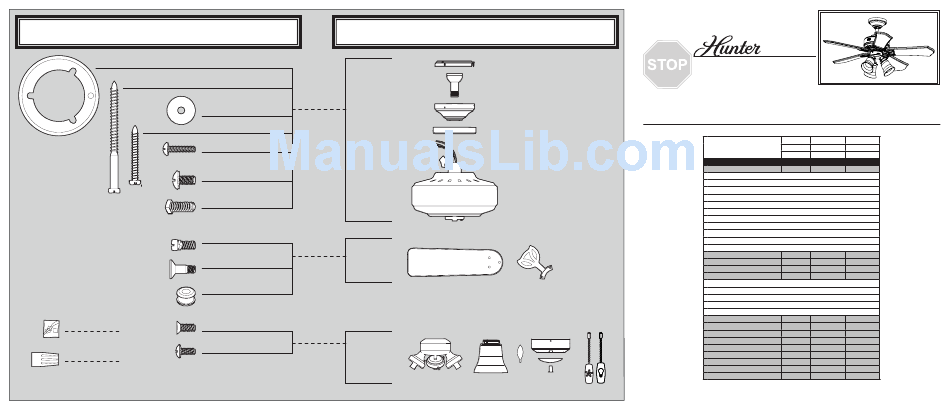

Hunter 28031 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 11
x 16
x 16
Balancing
x 1 x 3
Kit
x 3
Wire
x 4
Connector
Low Profile
Washer
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Locking Screw
Canopy Screw
Set Screw
Screw, Blade
Iron Armature
Screw, Blade Blade
Assembly Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Screw,
Switch
Machine, 6-32
Housing
Assembly
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 28032

Parts List

Asm. Dwg. # 99157-01
Finish Brushed Nickel
Item Name Qnty Part #
Hanging System Kit 1 96759-09
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Flat Washer
Mounting Isolator
Locking Screw
Switch/Housing Assembly 1 98940-09
Blade Iron Set 1 92803-07
Blade Set 1 G0253-26
Hardware Kit 1 99157-00-860
Screw, Blade Iron Armature
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 65666-03
Switch Housing Alternate 1 93598-02
Cap, Switch Housing 1 73853-01
Button Plug 1 73854-01
Light bulb / Bulb 3 77646-04
Pull Chain 2 63756-59
Fan Pull Chain Pendant 1 G0090-01
Light Pull Chain Pendant 1 G0091-01
Globe/Shade 3 77770-03
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-963 01-04-2011 •
28031
99157-02
New Bronze
Part #
96759-30
98940-30
92803-07
G0253-27
99157-00-861
65666-03
93598-02
73853-01
73854-01
77646-04
63756-59
G0090-01
G0091-01
77770-02
2011
©
