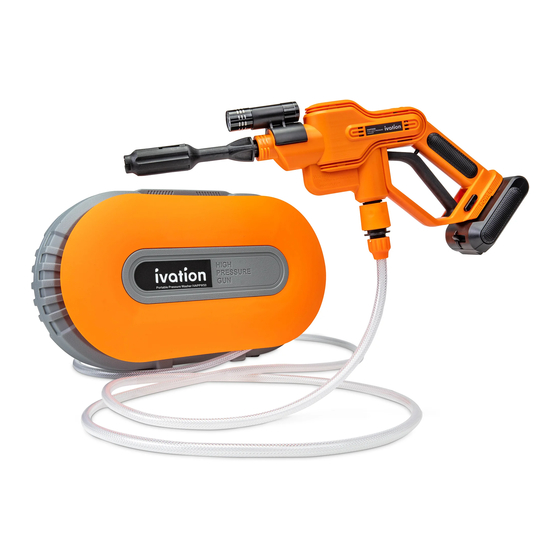

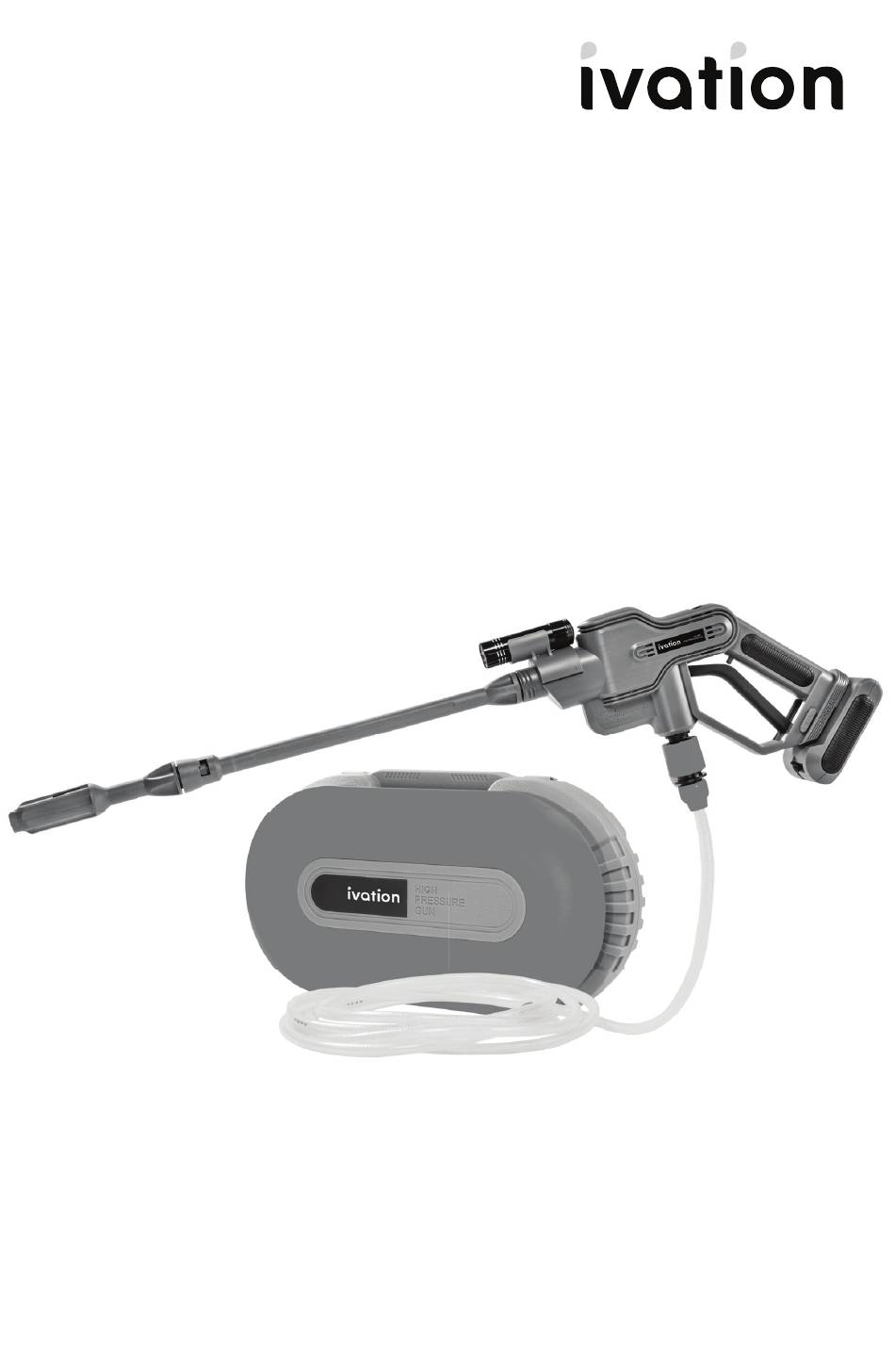

- Page 1 ® Portable High Pressure Washer SKU: IVAPPW50 User Guide...
-
Page 2: Introduction
Thank you for purchasing the Ivation® Portable High Pressure Washer. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 3: Table Of Contents
INTRODUCTION TABLE OF CONTENTS SAFETY PRECAUTIONS PACKAGE CONTENTS PRODUCT OVERVIEW ASSEMBLY INSTRUCTIONS OPERATING INSTRUCTIONS CARE & MAINTENANCE SPECIFICATIONS TROUBLESHOOTING WARRANTY GET IN TOUCH! TABLE OF CONTENTS... -
Page 4: Safety Precautions
WARNING! Please read and understand all safety precautions and operating instructions before operating this appliance. Improper usage of the product can result in damage to the product or serious injury to the user. • WARNING: CHOKING HAZARD – Small parts. This product contains small parts and is not suitable for children under 3 years old. -
Page 5: Package Contents
PACKAGE CONTENTS Motor base Suction hose Adjustable nozzle Detachable battery pack Extension spray rod Battery charger Flashlight attachment Washer case Flashlight holder User guide PRODUCT OVERVIEW / PACKAGE CONTENTS... -
Page 6: Assembly Instructions
Connecting the Adjustable Nozzle or Extension Spray Rod To attach the adjustable nozzle: 1. Connect the adjustable nozzle to the motor base. 2. Tighten the adjustable nozzle to lock it in place. To attach the extension spray rod: 1. Connect the extension spray rod to the motor base. 2. - Page 7 Connecting the Flashlight, Battery Pack, and Hose washer 1. Locate the flashlight holder and slide it on top of the until it snaps in place. 2. Open the casing of the flashlight attachment to reveal the battery compartment. 3. Place three (3) AAA batteries (not included) into the compartment. Then, close the casing.
- Page 8 6. Push down on the connector cover to reveal tabs on connector. Then, attach hose connector to the bottom of the motor base until it clicks in place. 7. Put the other end of the suction hose in any full water tank or reservoir. NOTE: This washer is commonly used with water, but can be used with other cleaning fluids that are not corrosive or caustic.
-
Page 9: Operating Instructions
Operating the Washer 1. Hold the washer firmly with one hand. Use the other hand to press and hold the UNLOCK/LOCK button. While the button is held, slowly squeeze down on the trigger to use the washer. 2. Turn the dial on the adjustable nozzle counterclockwise to get a straight stream spray. -
Page 10: Care & Maintenance
Draining Water from Washer 1. While the UNLOCK/LOCK button is held, slowly squeeze down on the trigger to use the washer. Then, take suction hose out of the water. 2. Continue to squeeze trigger to relieve pressure from nozzle. After a few seconds, release the trigger. -
Page 11: Specifications
SPECIFICATIONS Dimension: 18" x 8" x 3.8" (458 x 208 x 83 mm) Net weight: 4.2 lbs. (1.9 kg) Pressure: 200 – 290 psi (14 - 20 bar) Voltage: DC 20 V Motor power: 130 W Suction hose length: 16.4 ft. (5.0 m) Suction hose material: PVC Flow rate: 0.9 gal/min (3.5 L/min) Battery type: 20 V lithium battery... -
Page 12: Troubleshooting
SOLUTIONS PROBLEMS The pump will not start. • Check the battery pack is securely attached to the motor base. • Check the battery pack is low or out of power and needs to charge. The pump is running, • Air can get inside the hose & pump. If this is the case, power on the device and let it but there is no water. - Page 13 (f) A Product or part that has been modified to alter functionality or capability without the written permission of the Company; (g) Consumable parts, such as batteries, fuses, and bulbs; (h) Cosmetic damage; or (i) If any Ivation® Portable High Pressure Washer serial number has been removed or defaced. LIMITED WARRANTY...
-
Page 14: Warranty
This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country. The Company does not warrant that the operation of the Product will be uninterrupted or error-free. -
Page 15: Get In Touch
Contact Us! info@myivation.com 1-866-849-3049 IVATION is a trademark of C&A IP Holdings, LLC in the US, Canada, China, and the EU. All other products, brand names, company names, and logos are trademarks of their respective owners, used merely to identify their respective products, and are not meant to connote any sponsorship, endorsement, or approval.
