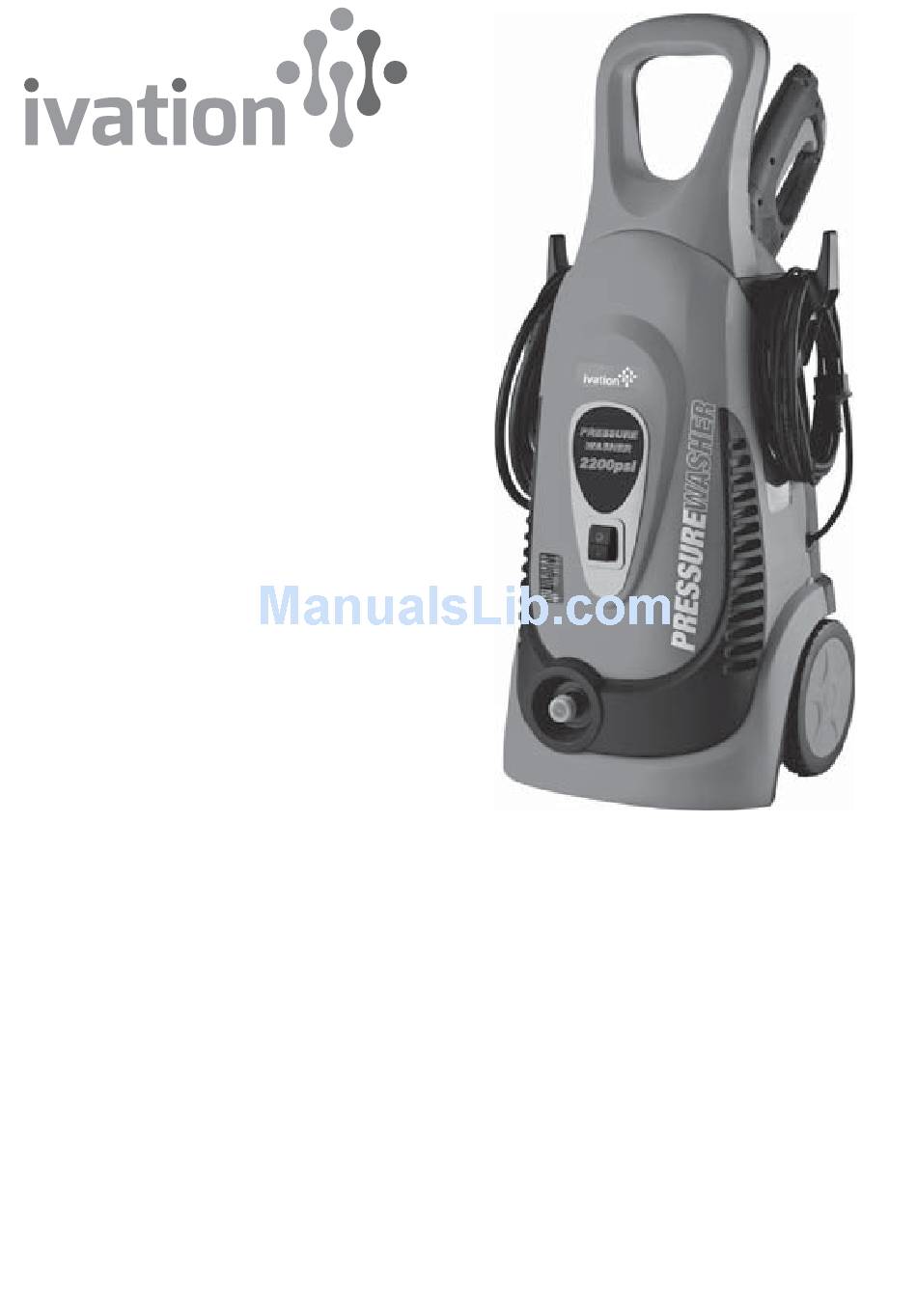

Pressure
Washer
User Guide
WARNING: READ THIS USER GUIDE BEFORE OPERATING THE UNIT.
The Ivation pressure washer removes loose paint, mold, grime, dust, mud, and
dirt. It can be used on vehicles and surfaces such as wood decking and concrete.
This User Guide is intended to provide you with guidelines to ensure that
operation of this product is safe and does not pose risk to the user. Any use that
does not conform to the guidelines described in this User Guide may void the
limited warranty.
Please read all directions before using the product and retain this guide
for reference.
This product is covered by a limited one-year warranty. Coverage is subject to
limits and exclusions. See warranty for details.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ivation IVA-9175L
Summary of Contents for Ivation IVA-9175L
- Page 1 User Guide WARNING: READ THIS USER GUIDE BEFORE OPERATING THE UNIT. The Ivation pressure washer removes loose paint, mold, grime, dust, mud, and dirt. It can be used on vehicles and surfaces such as wood decking and concrete. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user.
-
Page 2: Table Of Contents
Contents Parts ..........................3 Safety Precautions..................... 4 Basic Operation ......................6 Assembly........................7 Optional Filter......................10 Self-suction Function....................11 Troubleshooting Guide .....................12 Technical Data ......................14 Box Contents ......................14... -
Page 3: Parts
Parts 1 Spray Wand 2 Spray Gun Handle 3 High Pressure Hose 4 Holder 5 Power Cord 6 Housing 7 Power Switch 8 Input Water Filter 9 Water Input Hose (not included) 10 Turbo wand 11 Gun Plug Hole 12 Detergent Input 13 Basket 14 Onboard Nozzle Storage... -
Page 4: Safety Precautions
Safety Precautions Do not use the appliance with flammable or toxic liquids, or any products that are not compatible with the correct operation of this appliance. EXPLOSION OR POISONING HAZARD Do not direct the water jet toward the unit itself, electrical parts or equipment, or power outlets. - Page 5 Do not use the appliance after drinking alcohol, taking medication, or if you are tired and not alert. Do not direct water jet towards weakened or fragile structures. DAMAGE HAZARD Use only extension cords with waterproof plug and socket. Do not pull the power cord. WARNING! The intake water temperature must not exceed 104ºF/40ºC.
-
Page 6: Basic Operation
Basic Operation To Start Operation 1. Place the machine in its upright position on a flat, stable, level surface. 2. Check the water entry filter to make sure it is free of blockage. 3. If using detergent, use a product specifically designed for power washers. Use with the foaming nozzle ONLY. -
Page 7: Assembly
Assembly: Water supply Water inlet Switch Water oulet Recommended Process: (1) Hose to gun → (2) hose to water outlet → (3) water inlet hose to quick connector attaching to unit → 4) water inlet hose to tap → (5) spray wand to gun. - Page 8 Connect pressure hose to gun handle. Lock in place by sliding the switch on the bottom to the left as shown. To unlock, push the switch to the right as shown. To connect nozzle to high pressure hose: Pull down the metal collar on the hose. Insert the nozzle.
- Page 9 Unscrew the cap on the built-in tank and add detergent. Follow detergent manufacturer’s instructions. Connect the high pressure hose to the outlet port in the front of the unit by pushing the hose in and turning the screw collar to secure. Connect your garden hose to the water input port in the back of the unit.
-
Page 10: Optional Filter
Optional Filter Use if you have hard water and other water conditions. Please read the following instructions carefully. 1. Take filter out of bag, open the 2. Place the seal ring into the transparent tube and take the cap as shown and reconnect seal ring out. -
Page 11: Self-Suction Function
Self-suction Function This function permits the pressure washer to pump standing water from a well, tank, basin or other source, and will work when the water level is approximately 1 – 1.5m (39 – 59 inches) high. If the machine will not pump after 1 minute, turn it off and check if: The inlet hose is submerged The water level is less than 1.5m high... -
Page 12: Troubleshooting Guide
Troubleshooting Guide... - Page 13 Make sure you are using the (black) foam nozzle...
-
Page 14: Technical Data
Cleaning Pin 40° Nozzle Cord Holder Foam Nozzle Hose Holder Distributed by Made in China C & A Marketing Ivation is a trademark of 2 Bergen Turnpike C&A IP Holdings, LLC Ridgefield Park, NJ 07660 ©2015 All right reserved info@myivation.com...
