SERVICE MANUAL INTRODUCTION
This service manual helps with troubleshooting and diagnosing
malfunctions, completion of repairs, and return of the product to
proper operating condition. Read the complete instructions
contained within before initiating any repairs.
This guide is intended for use by Factory Certified Service. Wolf
Appliance, Inc. recommends that only Factory Certified Service
companies do repairs.
Warning and Caution product safety labels appear throughout
this manual. Product safety labels appear at the beginning of
some sections. Follow the instructions in the product safety
labels to avoid personal injury and/or product damage. The
sample safety labels explain the types of notices that appear in
this manual.
WARNING
States a hazard that may cause serious injury or
death if precautions are not followed.
CAUTION
Indicates minor injury or product damage may occur
if precautions are not followed.
IMPORTANT NOTE: Highlights especially important information.
TIP: Indicates additional, useful information.
Information and images contained herein are copyright of Wolf
Appliance, Inc. Neither this manual nor any information or
images contained herein may be copied or used in whole or in
part without the express written consent of Wolf Appliance, Inc.
©
Wolf Appliance, Inc., all rights reserved.

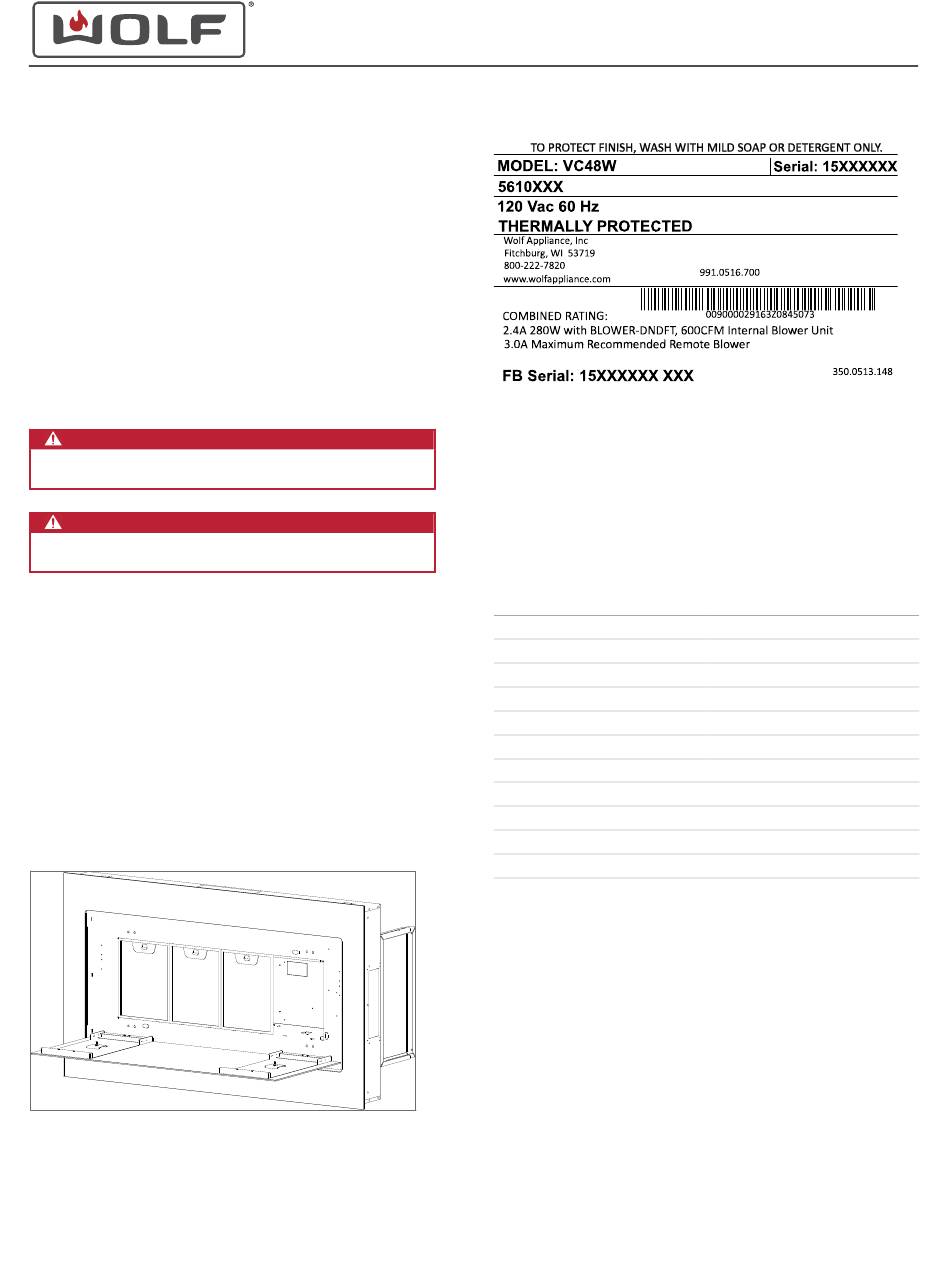

WOLF PRODUCT RATING PLATE INFORMATION
On Ceiling-Mounted Hoods, the rating plate is found behind the
rightmost filter. Open the center panel, and remove the filter.
Important information for each product is listed on the product
rating plate. Rating plates identify:
Model
Serial number
Electrical information
828149 REV. A
Product
Rating
Plate
MODEL DESCRIPTIONS AND SALES ACCESSORIES
For more details on individual model descriptions and a listing
of all compatible sales accessories, see the
Sales Accessory Reference Guide
V SERIES VENTILATION MODEL KEY
Model Character
ICB
V
C
I
U
W
24, 30, 36 or 48
B
G
S
W
PRODUCT USE AND CARE AND INSTALLATION GUIDES
Product use and care guides, installation guides, and other
product specifications are available in the
Specifications and Manuals Library
1
Ceiling-Mounted Hood
service.subzero.com
Wolf Product and
.
Description
International Designation
V Series Ventilation
Model Type Ceiling
Model Type Island
Model Type Under-Cabinet
Model Type Wall
Width (in inches)
Exterior: Black
Exterior: Glass
Exterior: Stainless Steel
Exterior: White Glass
Product
.
