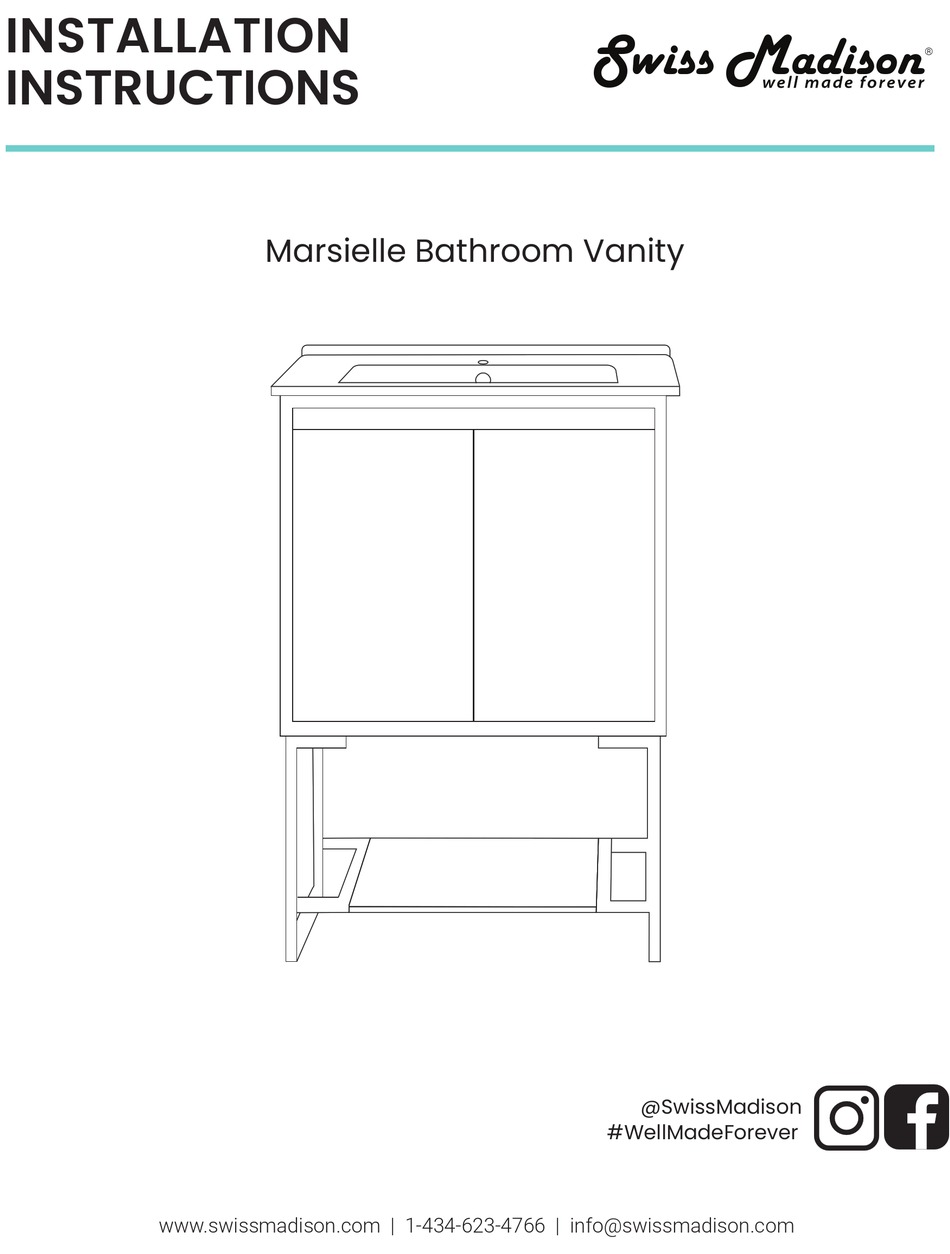

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Marsielle Bathroom Vanity @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Vanity. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 3 VANITY MODELS W” 24” D” 18 ¹⁄8” H” 35 ³⁄8” Collection Model - Color Marseille SM-BV142 - Oak D” x W” x H” ¹⁄8” x 24” x 35 ³⁄8” *Matching Drain *Matching Drain: SM-PD23 35 ¹³⁄16” 18 5⁄16” 35 ³⁄8” Marseille SM-BV143 - Oak 5⁄16”...
-
Page 4: Parts List
VANITY ROUGH DIMESIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Vanity. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional Read the complete instruction manual before beginning installation. -
Page 5: Installation Instructions
VANITY INSTALLATION INSTRUCTIONS Drawer Removal (if applicable) 1. Remove 2. Install 1. Remove Vanity and Sink from Box · Carefully remove vanity and sink from box. DO NOT use a box cutter to open box to avoid damaging the finish. NOTE: Drawings may not exactly define contour of product. - Page 6 VANITY INSTALLATION INSTRUCTIONS 2. Connect Base · Connect base and legs using screws and hardware shown below. 3. Mark Holes · Place base onto vanity and mark holes with a pencil. · Remove base and pre-drill on marked holes. — 5 —...
- Page 7 VANITY INSTALLATION INSTRUCTIONS 4. Attach Base · Attach base to vanity with screws using pre-drilled holes. 5. Secure Vanity to Wall · Carefully secure your vanity to your wall for added stability. NOTE: Two people are required for this step. 4 PCS STUDS —...
- Page 8 VANITY INSTALLATION INSTRUCTIONS 6. Hinge/Door Adjustment and Realignment · If adjustment or realignment is needed, follow the instructions provided in the following chart. Vertical 1. Loosen screws 2. Adjust hinge 3. Tighten screws adjustment Horizontal adjustment Door gap adjustment — 7 —...
- Page 9 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
