- Page 1 Precision 3260 Compact Setup and Specifications Regulatory Model: D16U Regulatory Type: D16U001 March 2022 Rev. A00...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
RAID (Redundant Array of Independent Disks)....................17 Power adapter..................................18 GPU—Integrated................................19 Multiple display support matrix............................19 GPU—Discrete.................................. 20 Multiple display support matrix............................20 Hardware security................................21 Environmental..................................21 Regulatory compliance..............................22 Operating and storage environment..........................22 Chapter 4: Getting help and contacting Dell................23 Contents... -
Page 4: Chapter 1: Set Up Your Computer
Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable. Set up your computer... - Page 5 NOTE: Alternatively, you can connect to a wireless network. 3. Connect the display. 4. Connect the power cable. Set up your computer...
- Page 6 5. Press the power button. Set up your computer...
- Page 7 6. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
- Page 8 For more information about using Dell Update, see the knowledge base article SLN305843 www.dell.com/support. Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 www.dell.com/support. Set up your computer...
-
Page 9: Chapter 2: Views Of Precision 3260 Compact

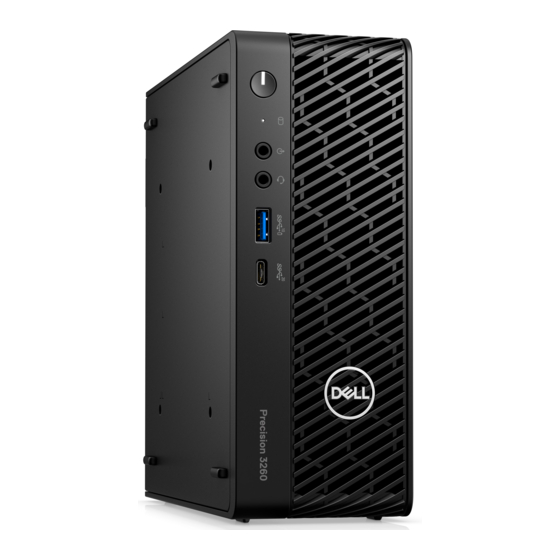

Views of Precision 3260 Compact Front 1. Power button (diagnostic indicator) 2. Hard-drive status indicator 3. Re-tasking line-out/line-in audio port 4. Universal audio jack 5. USB 3.2 Gen 2 port with PowerShare 6. USB 3.2 Gen 2x2 Capable Type-C port Views of Precision 3260 Compact... -
Page 10: Back
Back 1. Optional port (PS/2 Serial/HDMI 2.0b/Displayport 1.4a (HBR3)/VGA/USB Type-C with DisplayPort Alt mode) 2. Expansion card slot 3. DC-in cable clip 4. Kensignton secuirty-cable slot and padlock ring 5. Power adapter port 6. DisplayPort 1.4a (HBR2) 7. Service tag 8. -
Page 11: Left
Left 1. Four M4x10 screw posts for VESA mounting option. NOTE: The Dell Precision 3260 Compact Form Factor has screw holes 100 mmx100 mm apart. Views of Precision 3260 Compact... -
Page 12: Chapter 3: Specifications Of Precision 3260 Compact
The following table lists the details of the processors supported by your Precision 3260 Compact. NOTE: Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure that the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. -
Page 13: Chipset
Table 3. Processor (continued) Description Option one Option two Option three Option Four Option Five Processor speed 3.30 GHz to 4.30 3 GHz to 4.60 3.30 GHz to 4.80 2.10 GHz to 4.90 GHz 2.40 GHz to 5.10 GHz Processor cache 12 MB 18 MB 18 MB... -
Page 14: Memory
Memory The following table lists the memory specifications of your Precision 3260 Compact. Table 5. Memory specifications Description Values Memory slots Two-SoDIMM Memory type DDR5 Memory speed 4800 MHz Maximum memory configuration 64 GB Minimum memory configuration 8 GB Memory size per slot 8 GB, 16 GB, 32 GB Memory configurations supported ●... -
Page 15: External Ports
● One M.2 2230 slot for WiFi and Bluetooth card ● Two M.2 2230/2280 slots for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article 000144170 at www.dell.com/support. Specifications of Precision 3260 Compact... -
Page 16: Ethernet
Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Precision 3260 Compact. Table 9. Ethernet specifications Description Values Model number Intel i219-LM Transfer rate 10/100/1000 Mbps Wireless module The following table lists the Wireless Local Area Network (WLAN) modules supported on your Precision 3260 Compact. Table 10. -
Page 17: Storage
M.2 2280, Class 40 SSD, self-encrypting PCIe NVMe Gen3x4 Up to 1 TB drive RAID (Redundant Array of Independent Disks) For optimal performance when configuring drives as a RAID volume, Dell recommends drive models that are identical. Specifications of Precision 3260 Compact... -
Page 18: Power Adapter
NOTE: RAID is not supported on Intel Optane configurations. RAID 0 (Striped, Performance) volumes benefit from higher performance when drives are matched because the data is split across multiple drives: any IO operations with block sizes larger than the stripe size will split the IO and become constrained by the slowest of the drives. -
Page 19: Gpu-Integrated
Table 14. Power adapter specifications (continued) Description Option one Option two Storage 40°C to -40°C (104°F to -40°F) 40°C to -40°C (104°F to -40°F) CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Precision 3260 Compact. -
Page 20: Gpu-Discrete
GPU—Discrete The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Precision 3260 Compact. Table 17. GPU—Discrete Controller Memory size Memory type NVIDIA Quadro T400 (low profile) 2 GB GDDR6 NVIDIA Quadro T600 (low profile) 4 GB GDDR6 NVIDIA Quadro T1000 (low profile) -
Page 21: Hardware Security
Self-encrypting storage drives (Opal, FIPS) Trusted Platform Module TPM 2.0 China TPM Intel Secure Boot Intel Authenticate SafeBIOS: includes Dell Off-host BIOS Verification, BIOS Resilience, BIOS Recovery and additional BIOS Controls Environmental The following table lists the environmental specifications of your Precision 3260 Compact. -
Page 22: Regulatory Compliance
The following table lists the regulatory compliance of your Precision 3260 Compact. Table 21. Regulatory compliance Regulatory compliance Product Safety, EMC and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment Operating and storage environment This table lists the operating and storage specifications of your Precision 3260 Compact. -
Page 23: Chapter 4: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 23. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
