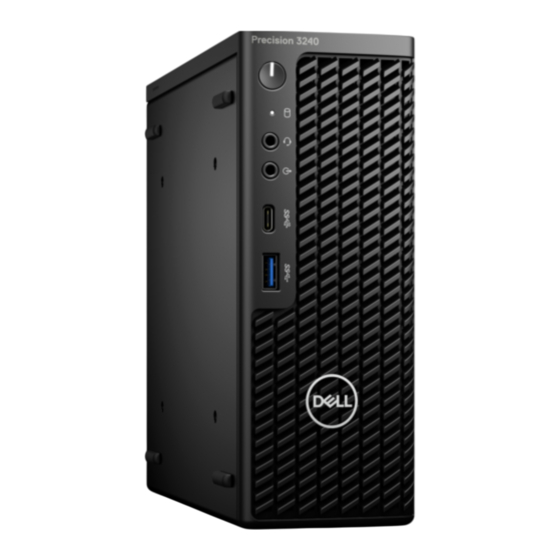

Dell Precision 3240 Compact Accessories Installation Manual

Hide thumbs Also See for Precision 3240 Compact:
Table of Contents

Advertisement

Quick Links

Precision 3240 Compact
Accessories Installation Guide
Regulatory Model: D16S
Regulatory Type: D16S001
August 2020
Rev. A00

Advertisement

Table of Contents
loading

Related Manuals for Dell Precision 3240 Compact

Summary of Contents for Dell Precision 3240 Compact

  • Page 1 Precision 3240 Compact Accessories Installation Guide Regulatory Model: D16S Regulatory Type: D16S001 August 2020 Rev. A00...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Chapter 1: Before you begin ......................4 Chapter 2: Precision Compact VESA sleeve mount................ 5 Chapter 3: Precision Compact Dual VESA sleeve mount..............7 Chapter 4: Dell monitor stand VESA mount.................. 12 Chapter 5: Dell A/C adapter sleeve mount................... 16 Under the desk................................... 16 On the monitor stand................................

  • Page 4: Chapter 1: Before You Begin

    Before you begin 1. Save and close all open files and exit all open applications. 2. Shut down your system: Click Start > Power > Shut down . NOTE: If you are using a Linux operating system, see the documentation of your operating system for shut-down instructions.

  • Page 5: Chapter 2: Precision Compact Vesa Sleeve Mount

    Precision Compact VESA sleeve mount To avoid clutter on your desk, you can use the Precision Compact VESA sleeve mount to secure the Precision 3240 compact system under the desk. 1. Follow the instructions in Before you begin. NOTE: Precision Compact VESA sleeve mount has holes for the screw mounts 100 mmx100 mm apart.
  • Page 6 6. Follow the instructions in After installing the accessory. Related-links: ● Precision Compact Dust Filter on page 22 ● Precision Compact Cable Cover on page 24 ● Dell A/C adapter sleeve mount on page 16 Precision Compact VESA sleeve mount...

  • Page 7: Chapter 3: Precision Compact Dual Vesa Sleeve Mount

    Precision Compact Dual VESA sleeve mount For flexible installation, you can use the Precision Compact Dual VESA sleeve mount to secure the Precision 3240 Compact system on a VESA compatible single or dual monitor arms. Precision compact dual VESA Sleeve mount supports the following monitor arms: ●...
  • Page 8 5. Slide the system into the VESA sleeve mount aligning the screw holes on the VESA sleeve mount with the screw holes on the system. NOTE: Ensure that the Dell logo on the system faces the same direction as the ∆ (triangle icon) on the VESA sleeve mount. 6. Tighten the thumbscrew to secure the system to the VESA sleeve mount.
  • Page 9 7. Align the screw holes on the VESA adapter plate with the screw holes on the VESA sleeve mount. 8. Use the four M4x10 screws to secure the VESA adapter plate to the VESA sleeve mount. NOTE: Ensure the ∆ (triangle icon) the VESA adapter plate and the ∆ (triangle icon) on the VESA sleeve mount are aligned.
  • Page 10 9. Lift the monitor and insert the slots on the VESA bracket into the hooks on the monitor arm until you hear a click. 10. Tighten the single M4x10 screw on the monitor arm to secure the dual VESA sleeve mount to the monitor arm. Precision Compact Dual VESA sleeve mount...
  • Page 11 11. Follow the instructions in After installing the accessory. Related-links: ● Precision Compact Dust Filter on page 22 ● Precision Compact Cable Cover on page 24 Precision Compact Dual VESA sleeve mount...

  • Page 12: Chapter 4: Dell Monitor Stand Vesa Mount

    Dell monitor stand VESA mount For flexible installation, you can use the Dell monitor stand VESA mount to secure the Precision 3240 Compact system on the Dell VESA monitor stand. 1. Follow the instructions in Before you begin. 2. Place the monitor stand base extender on the base of the monitor stand.
  • Page 13 6. Align the slot on the Dell monitor stand VESA mount with the cable management slot on the Dell monitor stand. Dell monitor stand VESA mount...
  • Page 14 7. Install the socket [1] from the monitor side into the cable management slot. 8. Use the plug [2] from the system side and turn the plug knob to secure the Dell monitor stand VESA mount to the monitor stand.
  • Page 15 10. Follow the instructions in After installing the accessory. Related-links: ● Precision Compact Dust Filter on page 22 ● Precision Compact Cable Cover on page 24 ● Dell A/C adapter sleeve mount on page 16 Dell monitor stand VESA mount...

  • Page 16: Chapter 5: Dell A/C Adapter Sleeve Mount

    Dell A/C adapter sleeve mount To avoid clutter on your desk and for flexible installation, you can use the Dell A/C adapter sleeve mount to secure the A/C adapter behind the monitor (on Dell monitor stand base extender) or under the desk.
  • Page 17 NOTE: The screw holes on the A/C adapter sleeve mount are 70 mm (2.756 in.) apart. Use the two M3x6 screws to secure the A/C adapter sleeve mount under the desk. Dell A/C adapter sleeve mount...

  • Page 18: On The Monitor Stand

    2. Turn over the monitor stand and place the A/C adapter sleeve mount on the Dell monitor stand base extender. 3. Install the two M3x6 screws to secure the Dell A/C adapter sleeve mount to the base extender. Dell A/C adapter sleeve mount...
  • Page 19 4. Place the A/C adapter in the A/C adapter sleeve mount. Dell A/C adapter sleeve mount...
  • Page 20 5. Wrap the sleeve around the A/C adapter and insert the retaining tabs into the holes at an appropriate level. Dell A/C adapter sleeve mount...
  • Page 21 6. Follow the instructions in After installing the accessory. Related-links: ● Precision Compact VESA sleeve mount on page 5 ● Dell monitor stand VESA mount on page 12 ● Precision Compact Dust Filter on page 22 ● Precision Compact Cable Cover on page 24...

  • Page 22: Chapter 6: Precision Compact Dust Filter

    Precision Compact Dust Filter The dust filter for the Dell Precision 3240 Compact helps protect the system from fine dust particles. After installation, you can set a pre-boot reminder in the BIOS to clean or replace the dust filter at customized time interval using the interval setting in the BIOS.
  • Page 23 Precision Compact VESA sleeve mount on page 5 ● Precision Compact Dual VESA sleeve mount on page 7 ● Dell monitor stand VESA mount on page 12 ● Dell A/C adapter sleeve mount on page 16 ● Precision Compact Cable Cover...

  • Page 24: Chapter 7: Precision Compact Cable Cover

    Precision Compact Cable Cover The cable cover for the Dell Precision 3240 Compact system protects the ports and organize cables that are connected to the system unit. 1. Follow the instructions in Before you begin. NOTE: Images that are shown below may vary depending on your system configuration.
  • Page 25 5. Route the cables through the slot on the cable cover and connect the cables to their respective ports. 6. Turn the antenna outwards to pass through the antenna slot at the top of the cable cover. 7. Align the cable cover retaining hooks into the slots on the Dell Precision 3240 Compact chassis. CAUTION: Take care not to bend or break the delicate plastic hooks.
  • Page 26 Precision Compact VESA sleeve mount on page 5 ● Precision Compact Dual VESA sleeve mount on page 7 ● Dell monitor stand VESA mount on page 12 ● Dell A/C adapter sleeve mount on page 16 ● Precision Compact Cable Cover...

  • Page 27: Chapter 8: After Installing The Accessory

    After installing the accessory 1. Replace all screws and ensure that no stray screws remain. 2. Connect any external devices, peripherals, or cables you removed before working on your system. 3. Connect your system and all attached devices to their electrical outlets. 4.

  • Page 28: Chapter 9: Getting Help And Contacting Dell

    Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 1. Self-help resources Self-help resources Resource location Information about Dell products and services https://www.dell.com/ Dell Support Tips...
  • Page 29 Dell product catalog. Availability varies by country/region and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: 1.

  • Page 30: Appendix A: Screw Size List

    Screw size list This section shows the different types of screws used with the Dell Precision 3240 accessories. Table 2. Screw size list and location Location M4x10 M4x6 M3x6 Precision Compact VESA Sleeve Mount Precision Compact Dual VESA Sleeve Mount...

  • Page 31: Appendix B: Recommended Tools

    Recommended tools This section lists the different tools that may be required to deploy the Dell Precision 3240 Compact system with its supported accessories. The procedures in this document require the following tools: ● Phillips #1 screwdriver ● Small flat blade screwdriver...
