- Page 1 Operating Manual Model 75-810 & 75-810-AR Noble Gas Purifier 75-810-HE: 120 V, 50/60 Hz 75-812-HE: 230 V, 50/60 Hz 75-810-AR: 120 V, 50/60 Hz 75-812-AR: 230 V, 50/60 Hz November 2020 Rev. 0 READ INSTRUCTIONS BEFORE OPERATING 277 Brodhead Rd., Bethlehem, PA 18017-8600 U.S.A. Tel: (610) 954-9000...
- Page 2 GOW-MAC Instrument Co.
-
Page 3: Table Of Contents
Contents Chapter 1 - Introduction ......................9 Chapter 2 - Safety Precautions ....................11 Chapter 3 - Specifications ....................13 Chapter 4 - Installation ......................15 Chapter 5 - Operation ......................17 Chapter 6 - Maintenance & Servicing .................. 19 Chapter 7 - Replacement Parts ................... 21 Chapter 8 - Appendix ...................... - Page 4 The information in this document is subject to change without notice. This manual could in- clude technical inaccuracies or typographical errors. Changes are made periodically to the informa- tion herein; these changes will be incorporated in subsequent revisions of the manual. GOW-MAC ®...
- Page 5 Equipment, and to refrain from any use thereof to design, construct, have constructed and/or operate any duplication or modification of the Equipment, or from any other use thereof, without the prior written consent of Seller. Models Affected 75-810-HE 75-812-HE 75-810-AR 75-812-AR Model 75-810 &...
- Page 6 GOW-MAC Instrument Co.
- Page 7 ® kind arising out of or connected with the use of its products. Except as stated in Sections 1 through 8 above, GOW-MAC makes no warranty, expressed or implied ®...
- Page 8 GOW-MAC Instrument Co.
-
Page 9: Chapter 1 - Introduction

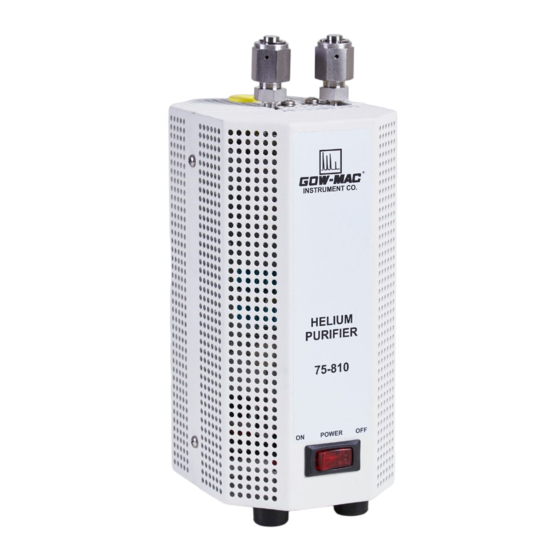

75-812-HE/AR for 230 VAC service. All versions may be generically referred to as 75-810 throughout this manual where appropriate. The GOW-MAC 75-810 series are point-of-use gas purifiers that remove impurities (H2O, O2, CO, CO2, H2, N2, CH4) from ultra-high purity (99.999%) argon or helium. - Page 10 GOW-MAC Instrument Co.
-
Page 11: Chapter 2 - Safety Precautions
Safety Precautions SAFETY WARNINGS IMPORTANT IMPORTANT WARNING This purifier is intended for the purification of NOBLE* gas only. Under NO circumstances should it be used for the purification of hydrogen, nitrogen, oxygen, air, or reactive gases. Failure to comply can result in personal injury and/or mechanical damage to purifier and all warranties shall be void. - Page 12 150 °C and all gas lines have been reconnected/repaired and certified. Failure to comply can result in personal injury or damage to the purifier. CAUTION The purity guarantees are void if installation is other than that approved by GOW-MAC Instrument Company CAUTION During heated operation, this unit MUST be pressurized with noble gas and isolated from any exposure to atmosphere or the getter bed will be destroyed.
-
Page 13: Chapter 3 - Specifications
75-810 Specifications Gases Purified He, Ne, Ar, Kr, Xe *Impurities Removed: O, H , CO, CO , CH Impurities Not Removed: He, Ne, Ar, Kr, Xe Operating Temperature: 400 °C + 25 °C Temperature Sensor: K-Type thermocouple is integrated in the heater, monitor the cartridge temperature by connection with a flat pin connector to the receptacle... - Page 14 GOW-MAC Instrument Co.
-
Page 15: Chapter 4 - Installation
Installation Locate the 75-810 on a table top with the rubber feet on the surface. In this position, the gas in and out connections are on top and the purifier cartridge is in the correct vertical orientation which reduces gas channeling through the getter material. Connect the 75-810 fitting marked GAS IN to the source of carrier helium or argon. - Page 16 GOW-MAC Instrument Co.
-
Page 17: Chapter 5 - Operation
Operation Start Up The purifier should be purged with an inert gas (helium if -HE or argon if -AR model, minimum purity 99.99%) for at least 10 minutes before powering on. Apply continuous gas flow of 50 to 200 ccpm before and during initial activation. After the 10 minute purge period, switch on power to the 75-810. - Page 18 GOW-MAC Instrument Co.
-
Page 19: Chapter 6 - Maintenance & Servicing
Maintenance & Servicing Purifier Lifetime In order to maintain proper purification efficiency, do not exceed estimated lifetime of the purifier cartridge. The estimated lifetime (first impurity breakthrough) is 1 year at 400 °C operating temperature, 150 ccpm flowrate, and inlet gas purity of 99.999%. - Page 20 The operator should place a VCR® cap on the inlet and outlet fittings for sufficient precaution before disposal. It is then acceptable to deposit in an approved landfill, in accordance with local, state and/or federal regulations. When disposed of in this manner, the waste poses no known environmental problems. GOW-MAC Instrument Co.
-
Page 21: Chapter 7 - Replacement Parts
Replacement Parts Part No. Description 124-240 Heater, 80 VAC, 80 W (includes integral K thermocouple) 124-241 Heater, 230 VAC, 80 W (includes integral K thermocouple) 180-1000-HE Purifier cartridge for helium, 1/4" VCR® male connections. Includes hydrogen removed stage and internal 0.003 micron filter and two (2) VCR®... - Page 22 GOW-MAC Instrument Co.
-
Page 23: Chapter 8 - Appendix
Appendix Summary of Helium Purifier Performance in Removing Impurities Instrument : GOW- MAC Series 200 GC Detector : DID Detector Temperature : 35°C Detector Flow : 10 ml/min Column : 4.5’ x 1.8” Molecular Sieve 13X Oven Temperature : 50°C Sample Gas : 2 ppm standard atmospheric gases in Helium Sample Flow... - Page 24 0.000 0.000 0.000 58.359 0.034 0.000 0.000 Table 2: Remaining Concentration of Impurities with Argon Purifier at 400°C Key Findings: 1. O2, N2, and CO are totally removed. 2. H2 and CH4 are reduced to ppb level. GOW-MAC Instrument Co.
