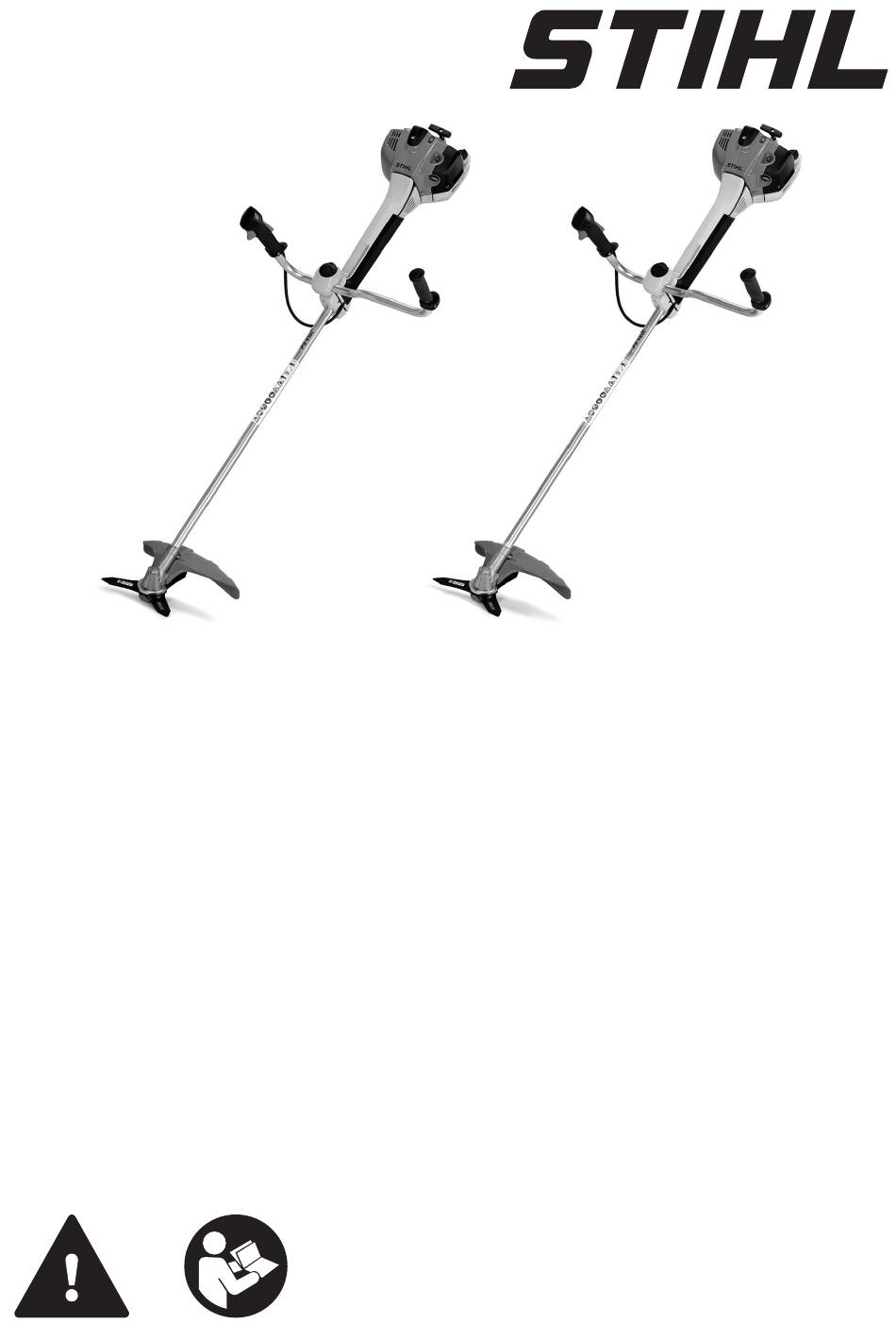

  • Page 1 FS 410, 460 2 - 24 Instruction Manual...

  • Page 2: Table Of Contents

    STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

  • Page 3: Overview

    5 Cover 25 Screw plug The screw plug closes the filler opening for Covers the spark plug. STIHL gear grease. 6 Spark plug boot 26 Stop pin Connects the ignition lead to the spark plug. The stop pin blocks the shaft while a cutting 7 Spark plug attachment is being mounted.

  • Page 4: Safety Precautions

    English 4 Safety Precautions 12 Shredder blade deflector The shredder blade deflector protects the user against flying debris and contact with the shredder blade. Symbols Meanings of symbols that may be on the trimmer and the deflector: This icon denotes the fuel tank. This symbol denotes the manual fuel pump.
  • Page 5 STIHL servicing dealer or other experi‐ Intended Use enced user before working with the trim‐ The STIHL FS 410, FS 460 brushcutter is mer for the first time. designed for the following applications: – The user must not be under the influ‐...
  • Page 6 ► Work only with an undamaged brushcutter. ► Wear sturdy, closed-toed footwear with ► If fuel is leaking from the trimmer: Do not high-grip soles. use the trimmer and contact a STIHL dealer for assistance. ► Close the fuel tank cap. 0458-841-0101-A...
  • Page 7 – If a metal cutting attachment not manufactured – If the deflector is used for mowing heads: The by STIHL is used, it must not be heavier, line limiting blade is correctly installed. thicker, of a different shape, of a lower quality, –...
  • Page 8 The engine oil that is not older than 30 days escaping fuel can ignite. This may result in (STIHL MotoMix: 5 years). serious injury to the user. ► Allow the brushcutter to cool down first and Working then open the fuel tank cap carefully.
  • Page 9 This may result in serious injury to people and damage to property. WARNING ► Stop work and consult a STIHL servicing ■ These situations can abruptly decelerate or dealer. stop rotation of the cutting attachment and ■...

  • Page 10: Preparing Trimmer For Operation

    4.11 Storing ► If the trimmer or the deflector require servic‐ WARNING ing or repairs: Contact your STIHL servicing dealer for assistance. ■ Children are not aware of and cannot assess ► Maintain the cutting attachment as descri‐ the dangers of a trimmer and can be seriously bed in the User Manual supplied with the injured.

  • Page 11: Assembling The Trimmer

    7.3. ► Check the controls, 10.1. ► If you cannot carry out this work: Do not use your brushcutter and contact your STIHL dealer for assistance. ► Place the deflector (1) on the gear housing. Assembling the Trimmer ► Insert the screws (2) and tighten them securely.
  • Page 12 English 6 Assembling the Trimmer ► Rotate the mowing head until the stop pin engages in position. The shaft is now blocked. ► Unscrew the mowing head clockwise. ► Remove the guard washer and thrust plate. ► Remove the circlip for mowing applications. ►...
  • Page 13 6 Assembling the Trimmer English ► Fit the nut (1) counterclockwise and tighten it down firmly. ► Remove the stop pin (9). 6.5.2 Mounting Shredder Blade ► Shut off the engine. ► Attach the guard ring (6) for sawing applica‐ tions.

  • Page 14: Adjusting Trimmer For User

    1:50. STIHL recommends you use STIHL MotoMix. If you mix the fuel yourself, use only STIHL two- stroke engine oil or another high-performance engine oil in accordance with JASO FB, JASO FC, JASO FD, ISO-L-EGB, ISO-L-EGC or ISO-L- EGD.

  • Page 15: Starting And Stopping The Engine

    ► Thoroughly mix the fuel. ► Do not top up with fuel stored for more than 30 days (STIHL MotoMix: 5 years). ► When topping up, ensure that no fuel is spil‐ led and that the fuel level remains at least 15 mm under the edge of the tank.

  • Page 16: Testing The Trimmer

    Rectify the malfunction. not spring back to the idle position: Do not use Idle speed adjustment is not correct. your trimmer and contact your STIHL dealer ► If the engine switches off in the for assistance. position or Trigger or trigger lockout is faulty.
  • Page 17 The accessories are availa‐ 11.4 Mowing ble from a STIHL servicing dealer. The cutting height is determined by the distance 11.2 Summer Operation of the cutting attachment from the ground.

  • Page 18: After Finishing Work

    English 12 After Finishing Work ► Clean the deflector. ► Support the left side of the deflector against ► Clean the cutting attachment. the stem. ► If a metal cutting attachment is mounted: Fit ► Cut through the stem at full speed. the matching transport guard.

  • Page 19: Cleaning

    ► Screw in the tube of STIHL gear lubri‐ ► Allow trimmer to cool down. cant (1). ► Clean the trimmer with a damp cloth or STIHL ► Squeeze 5 g of STIHL gear grease into the resin solvent. gear housing.
  • Page 20 ► Adjust the throttle cable. reach maximum ment is not correct. speed. The engine switches The pickup body is ► Contact a STIHL servicing dealer. off although there is not located in the still fuel in the fuel right place. tank.

  • Page 21: Specifications

    ISO 22867: – Control handle: 2.6 m/s². 19 Specifications – Left handle: 2.9 m/s². 19.1 STIHL FS 410 Brushcutter Using with a metal cutting attachment – Displacement: 41.6 cm³ FS 410 – Engine power according to ISO 8893: 2.0 – Sound pressure level L measured accord‐...

  • Page 22: Combinations Of Cutting Attachments, Deflectors And Carrying Systems

    ISO 22867: The CO value measured in the EU type approval – Control handle: 2.6 m/s². procedure is specified at www.stihl.com/co2. – Left handle: 2.5 m/s². The measured CO value was determined on a For information on compliance with Employers'...

  • Page 23: Spare Parts And Accessories

    Improper disposal can be harmful to health and Dr. Jürgen Hoffmann, Director Product Certifica‐ pollute the environment. tion & Regulatory Affairs ► Take STIHL products including packaging to a 24 UKCA Declaration of Con‐ suitable collection point for recycling in accord‐ ance with local regulations.
  • Page 24 – Measured sound power level: 115 dB(A) – Guaranteed sound power level: 117 dB(A) The technical documents are stored at ANDREAS STIHL AG & Co. KG. The year of manufacture, country of manufacture and serial number are specified on the rating plate of the brushcutter.
  • Page 25 24 UKCA Declaration of Conformity English 0458-841-0101-A...
  • Page 26 English 24 UKCA Declaration of Conformity 0458-841-0101-A...
  • Page 27 24 UKCA Declaration of Conformity English 0458-841-0101-A...
  • Page 28 *04588410101A* 0458-841-0101-A...
