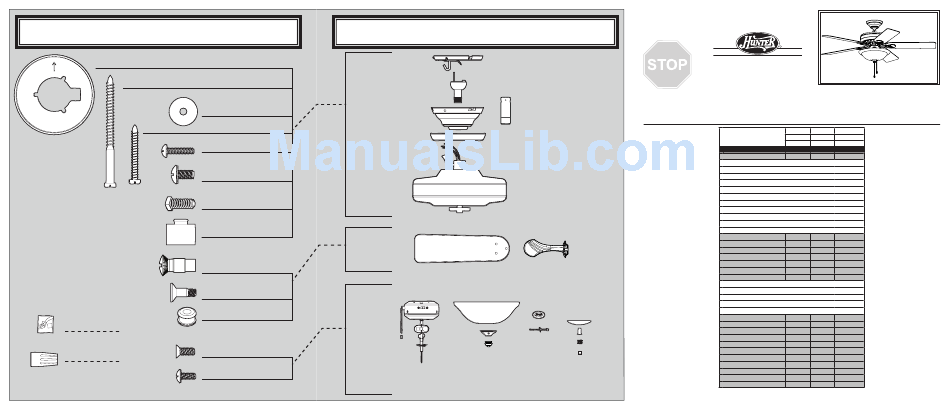

Hunter 23951 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
x 4
Wire Nut
x 3
Low Profile
Washer
3" Wood Screw
Hanger
Flat Washer
Bracket
Assembly
1.5" Wood Screw
Locking Screw
Canopy Screw
Set Screw
Mounting
Isololator
Blade
Assembly
Screw, Blade
Iron Armature
Screw, Blade
Assembly
Blade
Grommet
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
R
SINCE 1886
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 23951
Parts List
Asm. Dwg. # 98274-01
Finish New Bronze
Item Name Qnty Part #
* Hanging System Kit 94945-30
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Flat Washer
Mounting Isolator
* Locking Screw
Switch/Housing Assembly 1 98384-30
Extension Pipe / 6" Downrod 1 74228-09
Light Kit Assembly 1 98378-01
Blade Iron Set 1 98175-05
Blade Set 1 76238-84
Screw, Blade Iron Armature 11 63730-07
Hardware Kit 1
98274-00-860
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 07570-01
Pull Chain Pendant 2 74393-08
Pull Chain 1 63756-23
Pull Chain 1 63756-24
Bottom Cap 1 74759-02
Finial 1 74758-01
Switch Housing Cap 1 73853-01
Plug Button 1 73854-01
Male Dummy Terminal 1 08198-01
Female Dummy Terminal 1 08200-01
Glass Globe 1 88285-01
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com •
23952
98274-02
Brushed Nickel
Part #
94945-09
98384-09
74228-09
98378-01
98175-05
76238-85
63730-07
98274-01-860
07570-01
74393-08
63756-20
63756-26
74759-02
74758-01
73853-01
73854-01
08198-01
08200-01
88285-02
98000-01-872 03-17-2008 • 2008
©
