SETUP AND CONNECTIONS

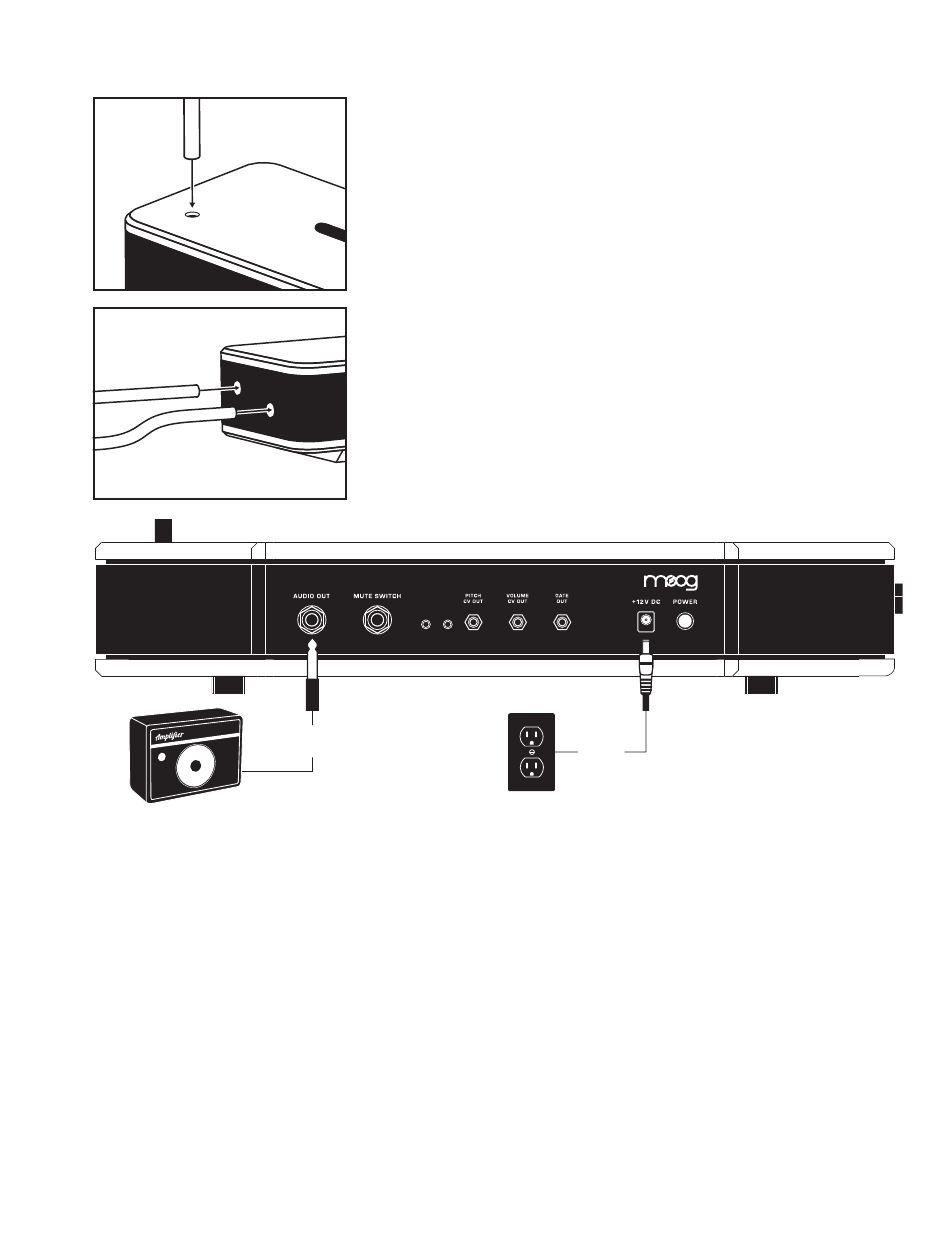

POWER
Plug the included power adapter into the +12V DC power jack on the rear panel of your Etherwave
Theremin. Pressing the POWER button turns your instrument On. The front panel POWER LED
indicator will remain lit (red) to indicate that the instrument is powered On.
AUDIO OUT
First, plug one end of a 1/4" instrument cable (TS) into the AUDIO OUT jack on the rear panel.
Then plug the other end into an amplified speaker or mixing console input.
PHONES OUT
Your Etherwave Theremin includes a convenient 1/4" headphone jack on the front panel, complete with
a dedicated headphone volume control (PHONES VOL knob). Be sure to keep the headphone cable
secured so that it does not interfere with the Pitch Antenna.
NOTE: This headphone jack is unaffected by the status of the MUTE button (page 19).
(Continued)
ATTACHING THE PITCH ANTENNA
The Pitch Antenna, which is the long straight tube, is inserted into
the Pitch Antenna opening on the Etherwave Theremin top panel.
Gently insert the Pitch Antenna into the opening (located in the
far right-hand corner of the top panel) so that it sticks straight up
like the mast on a boat. Ensure that the antenna is seated snugly
and securely.
ATTACHING THE VOLUME ANTENNA
The Volume Antenna, which is the looped tube, is inserted into
the two Volume Antenna openings located on the left-hand end
panel of your Etherwave Theremin. Gently insert the Volume
Antenna into the two Volume Antenna receptacles, so that the
bend in the loop is facing toward the performer. Ensure that
the antenna is seated snugly and securely.
Amplifier or
Headphones
Power
Supply
