Summary of Contents for Peavey Lark10

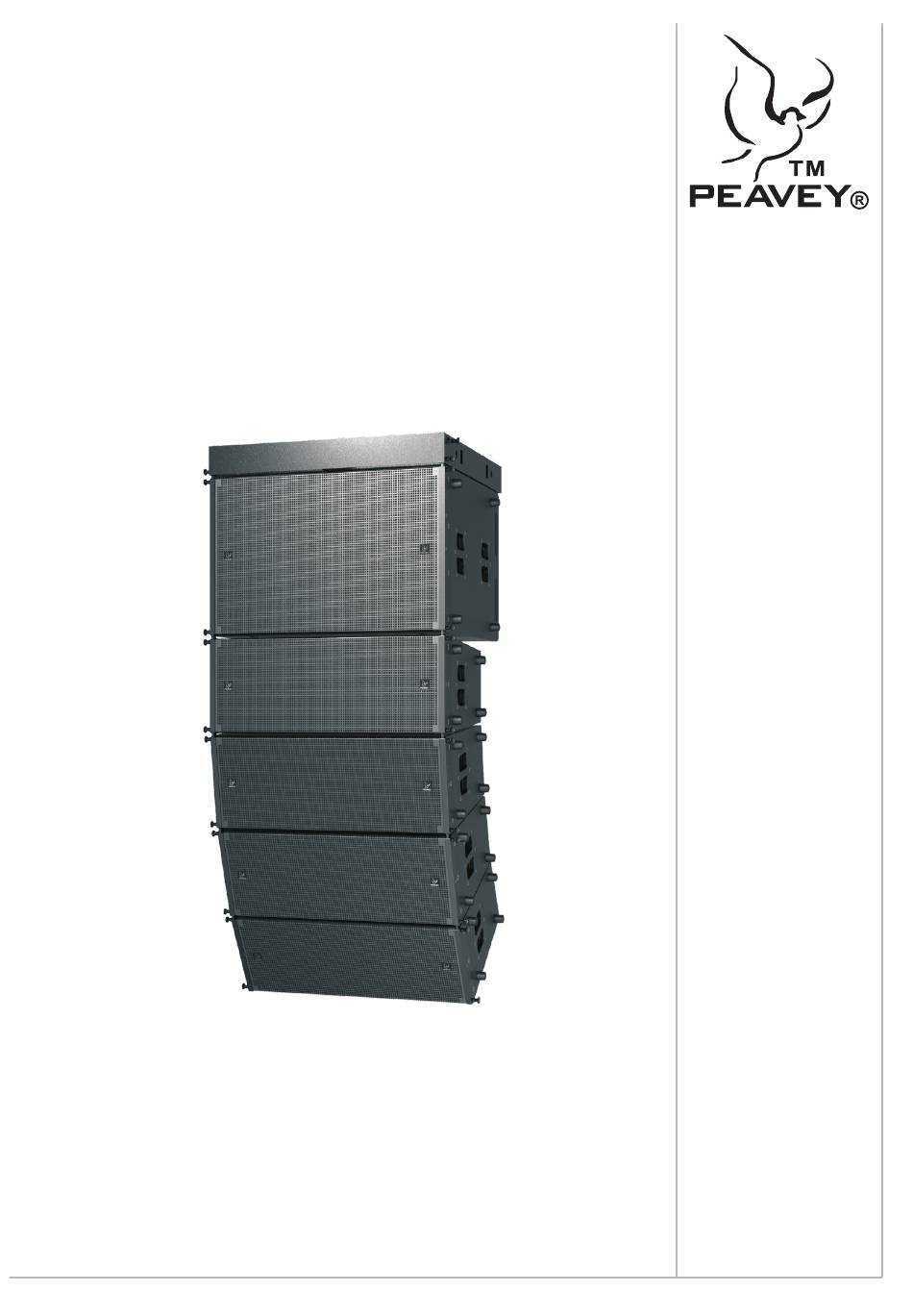

- Page 1 Lark 10 Lark 18S Loudspeaker System User Guide www.peavey.com.cn...
-
Page 2: Specifications
Lark 10 Peavey Lark 10 is a compact full-range loudspeaker module, designed as part of an array loudspeaker system, consisting of a 10" woofer, a 10" mid-woofer and a 3" tweeter loaded with a waveguide horn. Designed to provide modular coverage of small to medium... - Page 3 Lark 18S Peavey Lark 18S is a powerful subwoofer system. The compact box is loaded with a high-power 18" NdFeB magnet woofer. Lark 18S has ample power reserve, even at high sound pressure level output still has a very high definition.
- Page 4 Halo or fly bar, and the hardware should be checked for tightness. This PEAVEY loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the User’s Manual and possible manual update notices. This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, provincial or national suspension ordinances.
- Page 5 INSTALLATION DIAGRAM OF LARK LINEAR ARRAY SPEAKER SYSTEM 1. Array frame Installation method of the shackle (Two ways to fix the shackle according to practical application). Figure 1: one-point flying Figure 2: two-point flying 2. Pull out the pins on both sides of the subwoofer and press the front link out. Pull out the rear pins to take out the rear link so that it is vertical.
- Page 6 Array frame connected to subwoofer. Rear Connection Point Front Connection Point 4. Pull out the pins on both sides of the full frequency audio and press the front link to eject it. Pull out the rear pins to take out the rear link so that it is vertical. 5.
- Page 7 Rear link Recovery 0° 1° 2° 3° 4° 5° 6° 7° 8° 9° 10° / Recovery Hanging Hole Full frequency speaker Connect all the other speakers following rear suspension angle the same procedure 6. Connect the subwoofer to the full range speakers.
- Page 8 Schematic diagram of rear suspension connection between subwoofer and full-range loudspeaker Rear Connection Point Installation is complete...
- Page 9 Use only the correct mating hardware. All associated rigging is the responsibility of others. This PEAVEY loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the User’s Manual and possible manual update notices. This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, provincial or national suspension ordinances.
- Page 10 Lark 10 loudspeaker system rigging hardware was determined utilizing calibrated and certified pull tests. ® More complete information on the Peavey Lark 10 Rigging System and the Halo can be found in the unit’s Owner’s ® manual, or by contacting Peavey .
- Page 11 Dimensions: Unit: mm Lark 10 Lark 18S...
- Page 12 Input Plate...
- Page 13 Lark 10x2 loudspeaker system basic optimization data V1.1 Outward Model Lark 10 Amplifier Lark 2400（Input sensitivity 1.0V） Controller Lark 88 Limiter Attack: 50 ms Release: 500 ms Ratio: Limit Threshold: -1 dB Xover HPF: 50.8~80.6 Hz Type: LK-24 dB Type: Bypass LPF: 20.16 KHz PEQ1 Freq: 601.5 Hz...
- Page 14 Lark 18S loudspeaker system basic optimization data V1.1 Outward Model Lark 18S Amplifier Lark 2400（Input sensitivity 1.0V）or Lark 3600（Input sensitivity 1.4V） Controller Lark 88 Limiter Attack: 50 ms Release: 500 ms Ratio: Limit Threshold: +1 dB Xover HPF: 19.7 Hz Type: Bypass LPF: 86.4~99.2 Hz Type: LK-24 dB...
