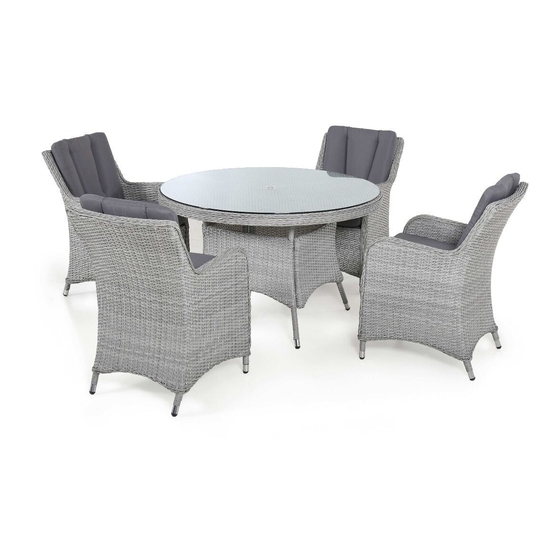

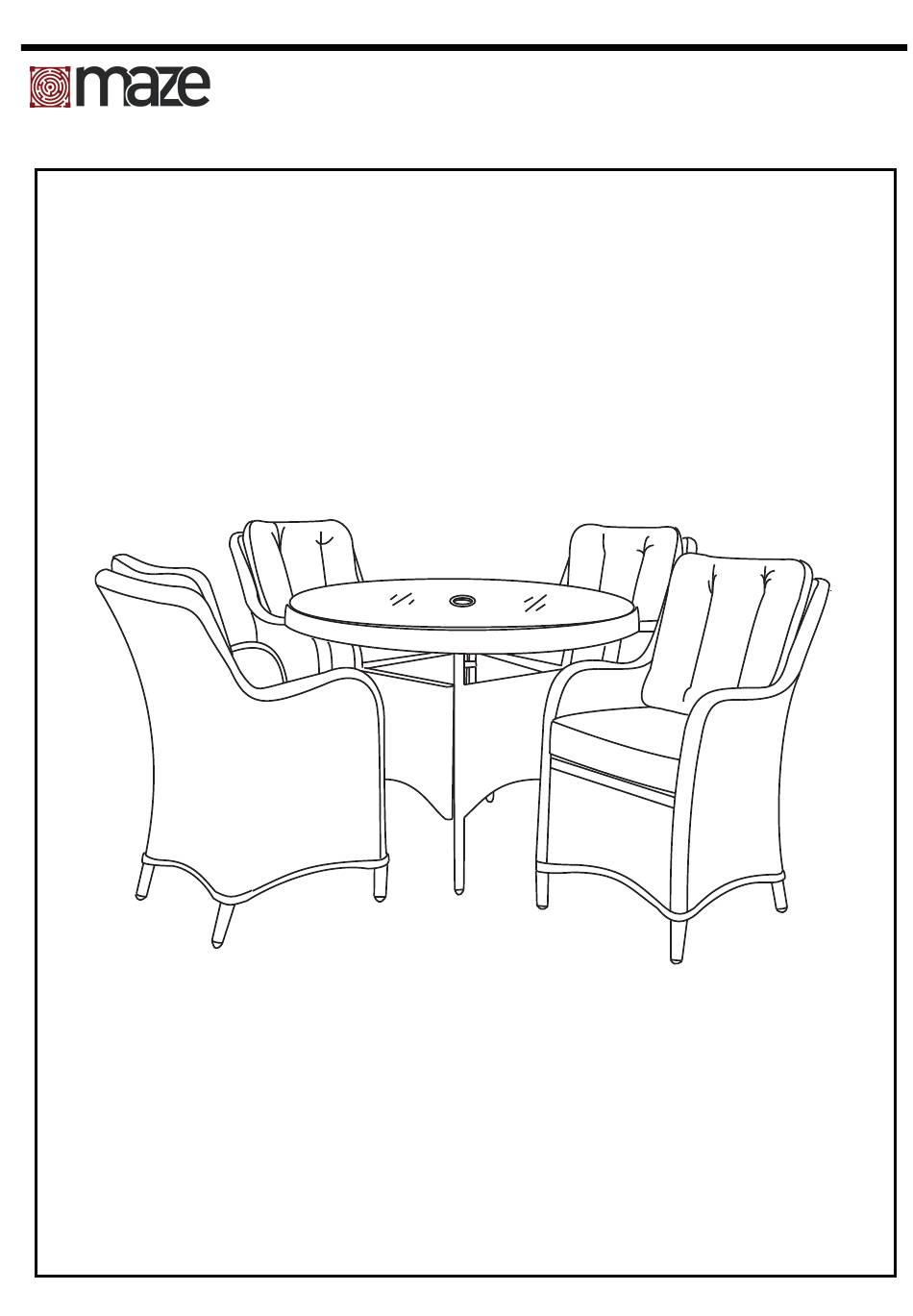

- Page 1 ASCOT 4 SEAT ROUND DINING SET Assembly Instructions for the Dining Table IMPORTANT-RETAIN FOR FUTURE REFERENCE...
- Page 2 GENERAL INFORMATION Assembly Instructions WARNINGS - For domestic and outdoor use only. - We suggest you retain these instructions for future reference. - Keep fittings out of children’s reach and keep children well away from construction area. - Periodically check all fittings and re-tighten as necessary. - Do not sit or stand on your table.
- Page 3 ASCOT 4 SEAT ROUND DINING TABLE Fixtures and Fittings Components supplied. Please use this Fixtures and fittings supplied(actual size) guide if you require replacement parts. Dimensions Visual Dimensions ø 13x5mm ø 120x0.8cm ø 16x1mm ø4X66mm ø 121x6cm M6x20mm 72X71cm 56X38cm...
- Page 4 ASCOT 4 SEAT ROUND DINING SET Assembly Instructions for Dining Table Unbox your dining table to begin the assembly process. Lay the table top (2) upside down on a flat surface. ø13 5.0mm Using your 2x leg side panels (3) align them...
