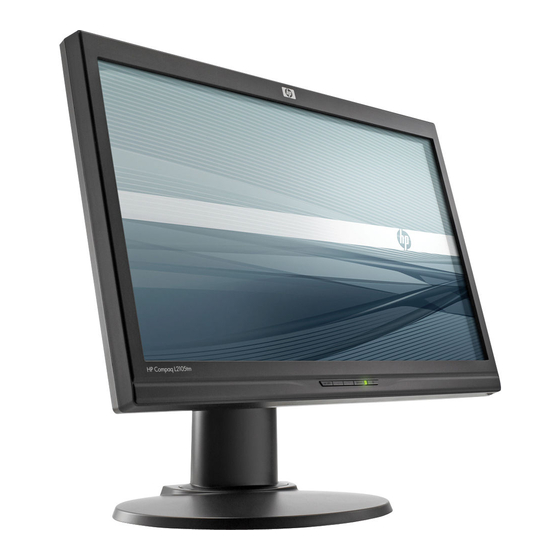

HP L2105TM User Manual

Lcd touch monitors.
Hide thumbs
USER'S MANUAL
L2105tm / 2209t LCD Touch Monitors
Agency no.: HSTND-2791-Q

Advertising

   Related Manuals for HP L2105TM

   Summary of Contents for HP L2105TM

  • Page 1

    USER'S MANUAL L2105tm / 2209t LCD Touch Monitors Agency no.: HSTND-2791-Q...

  • Page 2

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by HP; or (2) the serial number of the product is defaced or missing.

  • Page 3: Agency Regulatory Notices, Federal Communications Commission Notice

    For questions regarding the product, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-HP-INVENT (1-800 474-6836) For questions regarding this FCC declaration, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 510101...

  • Page 4: Canadian Notice, Avis Canadien, Japanese Notice, Korean Notice, Power Cord Set Requirements

    6 feet (1.8 m) and 12 feet (3.6 m).If you have questions about the type of power cord to use, contact an authorized HP service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed uponit or against it.

  • Page 5: Product Environmental Notices, Materials Disposal

    Product Environmental Notices Materials Disposal This HP product contains mercury in the fluorescent lamp in the display LCD that might require special handling at end-of-life. Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact the local authorities or the Electronic Industries Alliance (EIA) http://www.eiae.org.

  • Page 6: Table Of Contents

    Safety Instructions ... 2  Recycling Information ... 3  System components and accessories ... 4  Connection instructions ... 5  Installing the display ... 5 Packaging procedures ... 5 Adjusting the viewing angle ... 5 Connection instructions ... 6 Using the display ... 7  Turning on the display ...

  • Page 7: Safety Instructions

    • Do not attempt to repair this product yourself! Improperly disassembly of the product may expose you to danger! If your problem cannot be solved according to the "Troubleshooting" guidelines, contact your regional HP authorized service provider, http://www.hp.com/support. Safety Instructions...

  • Page 8: Recycling Information

    Recycling Information HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/recycle.

  • Page 9: System Components And Accessories

    System components and accessories LCD display Signal cable (VGA) Quick Start Guide Quick Start Guide Use the provided stylus as a touch pointing device. However, the stylus is not required for optical touch applications; for example, finger and other pointing instruments may be used. If any component is missing, please contact your local dealer for technical support or customer service.

  • Page 10: Connection Instructions, Installing The Display, Packaging Procedures, Adjusting The Viewing Angle

    Installing the display Install: Remove: Place the display on the table (Figure 1) Packaging procedures If you need to package the display again, please keep the original carton and packing materials. The procedures for re-packaging the display are as follows: 1.

  • Page 11

    Connection instructions CAUTION: Before installation, please make sure to power off the display and the computer. (Figure 3) ○ Power cord ○ VGA cable ○ Audio cable ○ USB cable Warning: 1. Please verify the video card you are using and use an appropriate signal cable. 2.

  • Page 12: Using The Display, Turning On The Display, Function Controls

    Turning on the display Turn on the display before turning on the computer. When the power is on, the LED on the power button lights blue and the screen image will appear after about 10 seconds. If the LED doesn't light blue or no image appears, please verify if the display is properly connected.

  • Page 13: Installing The Touch Driver (for Windows Xp Only)

    Installing the Touch Driver (for Windows XP only) Insert the CD-ROM into the Computer CD-ROM drive. The CD menu is displayed (or open Windows Explorer and run the Touch_Driver_Setup.exe from the CD). Step 1: Click “Install Touch Driver for Microsoft Windows XP” from the CD menu NOTE: The monitor ships only with Windows XP touch drivers.

  • Page 14

    Step 3: Click “Finish” The driver setup installation is complete. Step 4: Click “Yes” After clicking Finish, the setup wizard will prompt you to reboot the computer. Once the system is restarted, the installation is complete.

  • Page 15: Control Of The Touch Function

    Control of the Touch Function Note: 1. Before using the touch function, make sure the USB cable is connected, the touch applications from the CD-ROM are installed if you are running Windows XP and the Window's operating system is started. 2.

  • Page 16: Osd Selection, Osd Menu

    Press the Menu button to activate the OSD function menu and continue pressing the Menu button to select an option from the 7 functions in the menu. Select the function you want to adjust on the OSD function menu and then press MENU to make adjustment. Please use <or> to adjust the screen to your desired status.

  • Page 17

    Note: Do not adjust the screen setting when animation is displayed; make sure to adjust the setting in full screen mode. OSD CONTROL H.OSD POSITION: Controls the OSD menu’s horizontal position. V.OSD POSITION: Controls the OSD menu’s vertical position. OSD TIMEOUT: Determines how long (in seconds) the OSD menu waits before closing automatically after no action has been performed.

  • Page 18: Troubleshooting

    Problems Power LED doesn't light up. No screen image Abnormal colors are present The image bounces or a wave pattern is present The screen image is not centered or the size is incorrect Note: Never disassemble or repair the product yourself. If your problem cannot be solved according to the troubleshooting guidelines, please contact your local dealer.

  • Page 19: Production Specifications

    LCD panel size 54.61 cm(21.5in) 3000:1 (typical) Viewing angle Horizontal 170°, vertical 160° (typical) Response time 5 ms (typical) Brightness 265 cd/m Input signal Analog signal (D-sub); digital signal (DVI) Display color 16.7 M colors Frequency 24 ~ 83 kHz Horizontal, 50 ~ 76 Hz Vertical Optimum graphic 1920 x 1080(60Hz) resolution...

  • Page 20: Preset Modes

    Horz Preset Pixel Freq (kHz) 640 x 480 31.469 720 x 400 31.469 800 x 600 37.879 1024 x 768 48.363 1280 x 720 45.00 1280 x 960 60.00 1280 x 1024 63.98 1440 x 900 55.94 1600 x 1200 75.00 1680 x 1050 65.29...

  • Page 21: Appendix, Connector Pin Assignment

    Connector pin assignment • 15 pin color display signal cable: PIN No. Description Green Blue Monitor ground DDC-return R-ground G-ground B-ground 24 pin DVD-D display signal cable: Pin No. Description TMDS Data 2 - TMDS Data 2 + TMDS Data 2 / 4 Shield TMDS Data 4 - TMDS Data 4 + DDC Clock...
