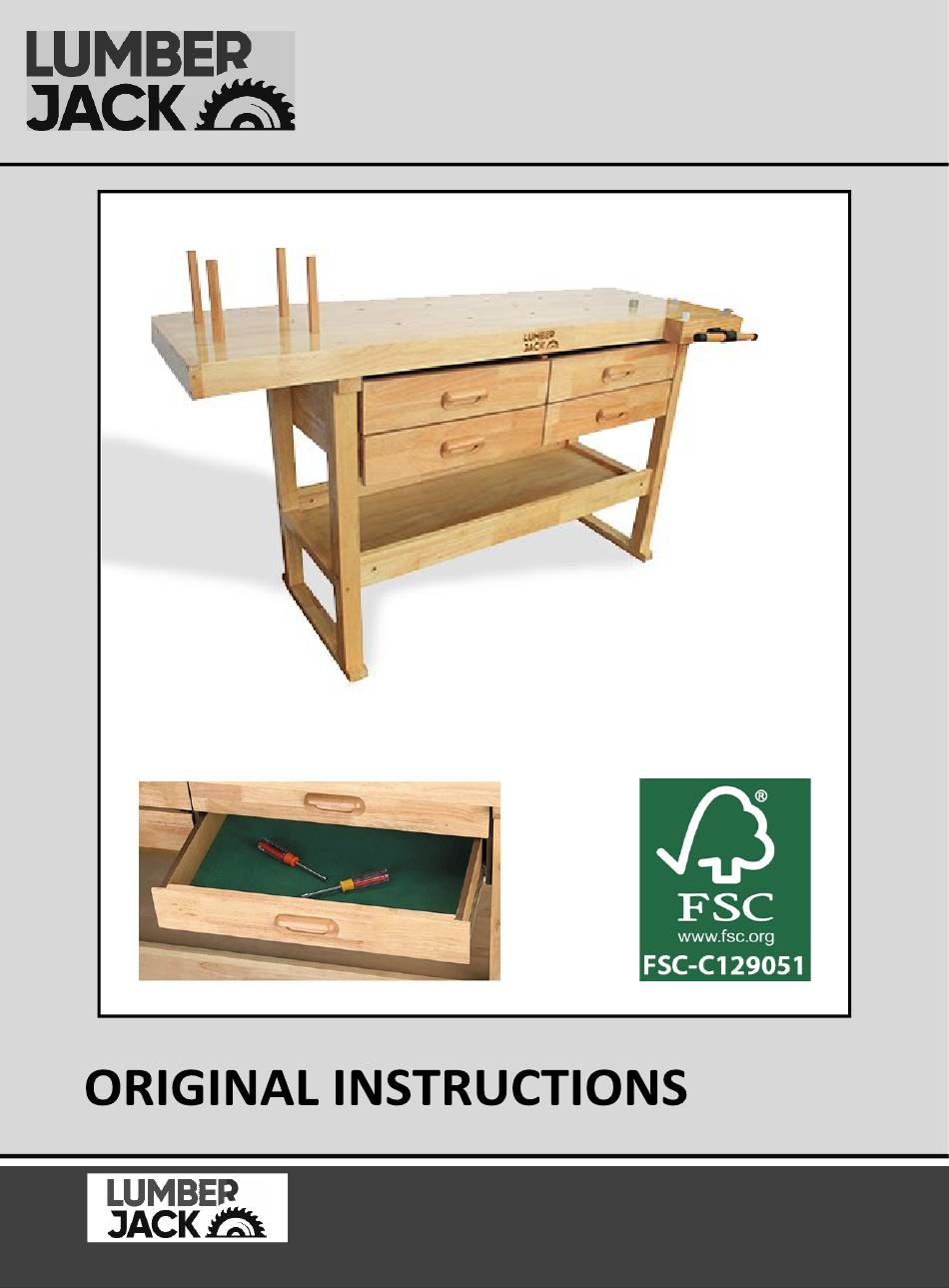

- Page 1 Safety & Operating Manual Solid Wood Bench WB1520D4 WB1520D4...
- Page 2 TABLE OF CONTENTS Welcome to Lumberjack! Dear Customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life.
-
Page 3: Specifications
GENERAL TOOL SAFETY WARNINGS & SPECIFICATION WARNING Read all safety warnings and Specifications: all instructions. Failure to follow the warnings Vice Capacity: 7" Inch and instructions may result in serious injury. Top Shelf Weight Capacity: 113kg Drawer Weight Capacity: 11kg Save all warnings and instructions for Bottom Shelf Capacity: 90kg future reference. - Page 4 Parts List WB1520D4...
- Page 5 Fixings Part No Description Allen Key Dowel Nut Long Bolt Washer Blue Screws Heavy Duty Screws Silver Screws Drawer Handle Screws 8...
- Page 6 (2) and tighten using the allen key (A) Congratulations stage one is now complete. Your bench should now look like the image below. Repeat this process again for the second side leg (1) for the bench to then look like the below image. WB1520D4...
- Page 7 Please ensure the middle drawer (6) match the side legs (1). Gap to the rear of the bench and flush to the front of the bench. As seen in image below. Repeat this process for both support brackets (4) as per the image below. WB1520D4...
- Page 8 Using screw (F) secure all three pieces Your bench should then look like the image together as shown in the images below. below. Finally, attach the vice (7) to the front of the table top (5) into the pre drilled holes on the right. WB1520D4...
- Page 9 Attach the drawer handle (13) using screw (G) from the rear of the drawer front (12) Congratulations stage three is now complete. Your bench is now ready to use. We wish you many years of enjoyment with your new bench. WB1520D4...
