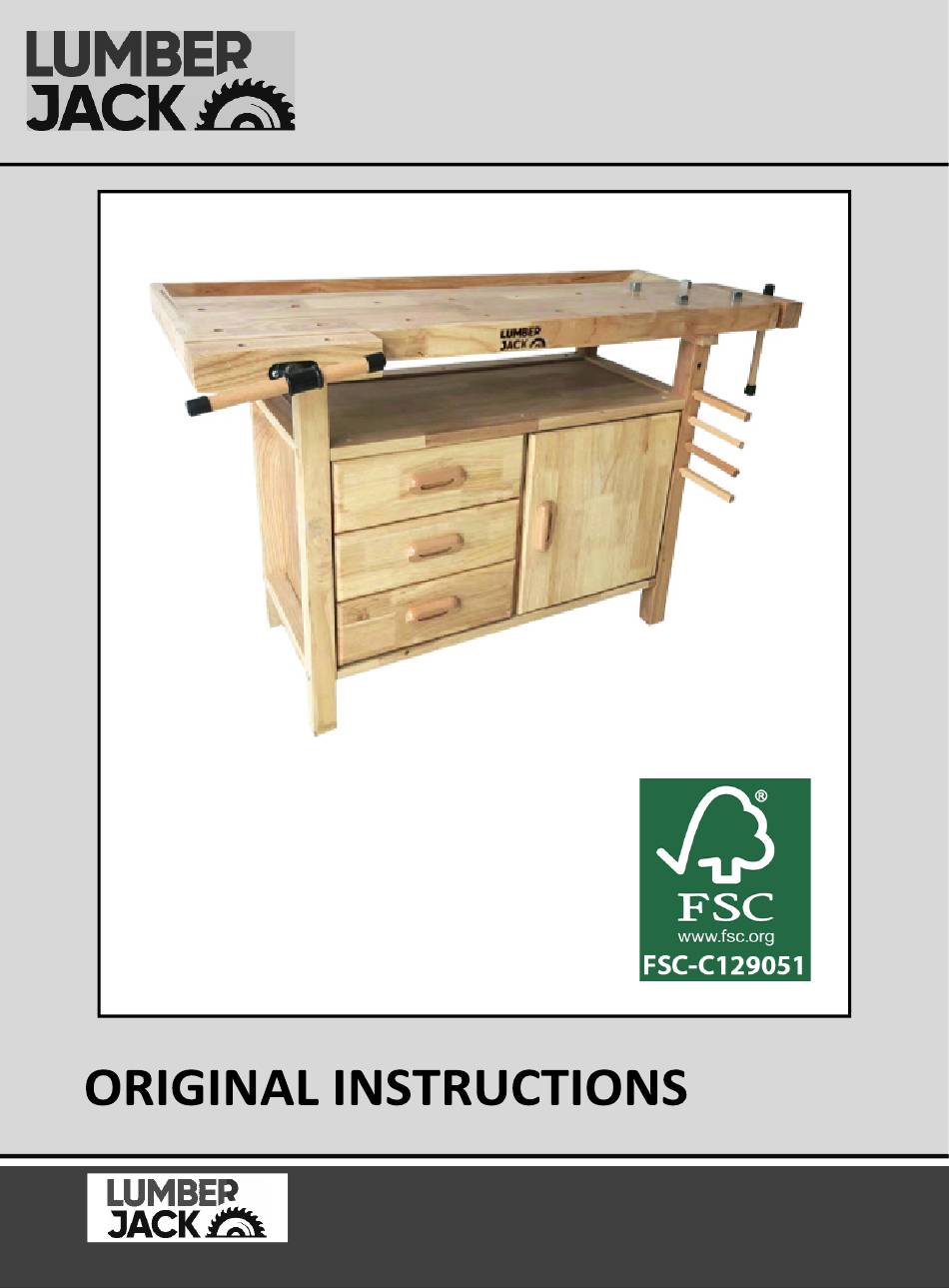

- Page 1 Safety & Operating Manual Solid Wood Bench with Cabinet WB1200DC3 WB1200DC3...
- Page 2 TABLE OF CONTENTS Welcome to Lumberjack! Dear Customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life.
- Page 3 Do not assemble when tired or when under the influence of drugs or medication. j) This product is not a toy. Do not allow children to play with, on or near Workbench. k) Inspect before every use; do not use if parts are loose or damaged. WB1200DC3...
- Page 4 Parts List WB1200DC3...
- Page 5 Fixings Part No Description Allen Key Dowel Nuts Long Bolts Washers Blue Screws Heavy Duty Screws Drawer Handle Screws 6 Cabinet Handle Screws 2 WB1200DC3...
- Page 6 (1) for the bench to then look like the below image. Make sure the recess is pointing downwards when fitting. Make sure the bottom frame has the recess pointing upwards. (also side recess facing towards the front of the bench. WB1200DC3...
- Page 7 Insert middle drawer support (2) with the rails closest to the front. Slot into the recess. Tighten all the screws with a screwdriver then the bench should look like the below image.. Screw the top frame (13) to the middle drawer support (2) WB1200DC3...
- Page 8 (D) Use heavy duty bolts (E) and washers (C1) to then tighten with a 13mm spanner Attach the cabinet door (11) to the side leg (1) Then add the drawer handle (10) with the short drawer screws (F2) WB1200DC3...
- Page 9 (17) dogs to your chosen area on the bench. Make sure the lip is at the top of the drawer front (5) Then your bench should be finished and look like the below image... We wish you many years of enjoyment with your new bench. WB1200DC3...
