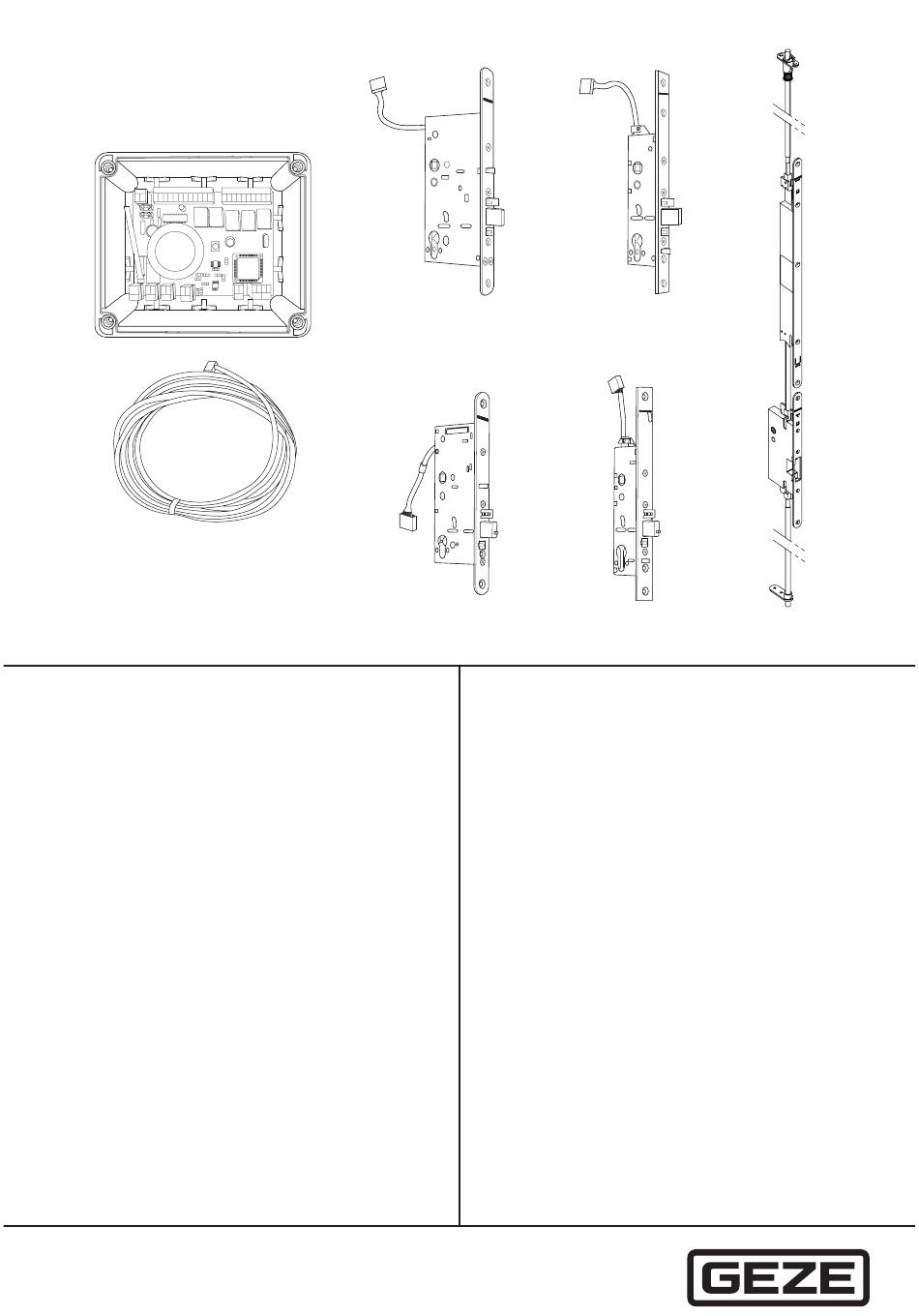

IQ lock – self-locking
EN Commissioning and connection
instructions
panic locks for 1- and
2-leaf doors
IQ lock AUT
IQ lock EL / IQ lock EL DL
IQ lock EM / IQ lock EM DL
IQ lock C / IQ lock C DL
157720-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ lock AUT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEZE IQ lock AUT

Summary of Contents for GEZE IQ lock AUT

  • Page 1 EN Commissioning and connection instructions panic locks for 1- and 2-leaf doors IQ lock AUT IQ lock EL / IQ lock EL DL IQ lock EM / IQ lock EM DL IQ lock C / IQ lock C DL 157720-05...

  • Page 2: Table Of Contents

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Contents Key to symbols ..................................3 Product designation ................................3 Product liability..................................3 Abbreviations ..................................3 Safety notes ................................4 Intended use ........................................4 Technical safety .........................................4 Safety-conscious working ....................................5...

  • Page 3: Key To Symbols

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6.17 IQ lock AUT with K600, TZ 320 SN and activation ..........................48 6.18 IQ lock AUT with EMD (-F, -I) and activation ............................50 6.19...

  • Page 4: Safety Notes

    GEZE and their authorised specialists. à Damage to GEZE IQ locks can endanger your safety. Check them for visible signs of damage. Never put a dam- aged lock into operation.

  • Page 5: Safety-Conscious Working

    Use of motor locks IQ lock EL/IQ lock EL DL on fire and smoke protection doors GEZE motor locks, IQ lock EL for 1-leaf and IQ lock EL DL for 2-leaf fire and smoke protection doors may be used in all modes of operation (permanently unlocked, secured by day, night mode).

  • Page 6: Your Contribution To Environmental Protection

    Your contribution to environmental protection IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL In order to interrupt this electrical activation in case of a fire, permissible fire detectors with trigger mechanisms, in accordance with the DIBt guideline, must be employed for hold-open systems.

  • Page 7: Functions And Properties

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Functions and properties Functions and properties 3. 1 Overview of functions Function / property IQ lock AUT * IQ lock EL/...
  • Page 8 Functions and properties IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Mechanical re-locking Locking of the two cross latches is activated by actuating the auxiliary latch. Locking of the two cross latches only takes place after this has engaged and positioned itself in the strike plate.

  • Page 9: Technical Data

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Technical data Technical data 4. 1 IQ lock ID no. See price list IQ lock function à Panic function à Mechanical self-locking à...

  • Page 10: Rod Drive Iq Aut

    Technical data IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Rod drive IQ AUT ID no. 153755 Function Motor-driven unlocking of the passive leaf (< 1.8 seconds) Dimensions (without face plate) 42 ×...

  • Page 11: Power Supply Nt Hdr-30-24

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Technical data Power supply NT HDR-30-24 ID no. 151425 Function Power supply for IQ AUT Input voltage 230 V AC (±15 %) Input current 480 mA...

  • Page 12: Electrical Connection

    Electrical connection IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Electrical connection Use wire-end ferrules for wire cores. à Work on the electrical equipment (IQ AUT, IQ lock EL, IQ lock EL DL, IQ lock EM, IQ lock EM DL) may only be performed by a qualified electrician.
  • Page 13 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Electrical connection Light emitting diode displays Function Cause Consequence Remedy LED1 off Power supply interrupted No control unit function Check voltage source...
  • Page 14 Electrical connection IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Outputs Terminal Signal Contact Function X2.10 Relay night mode / day Contact closed: Mode of operation day Contact open: Mode of operation night mode X2.11...
  • Page 15 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Electrical connection Connector IQ lock EL Connector IQ lock EL / Connector power supply IQ lock EL DL (1) cable (2)
  • Page 16 Motor lock control MST 210 with new software from version 3.0 In order to improve the performance of the GEZE motor locks IQ lock EL / IQ lock EL DL even further, GEZE will be delivering the motor lock control MST 210 with new software from mid-2014.
  • Page 17 IQ lock EL / IQ lock EL DL with new motor HW 11504x, C0 In order to improve the performance of the GEZE motor locks IQ lock EL / IQ lock EL DL even further, GEZE will be integrating a new motor from mid-2014.
  • Page 18 Electrical connection IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 5. 1 .8 Smoke detector A smoke detector can be connected via terminal X4, signal numbers 8 and 9. The smoke detector disconnects the control unit from its supply voltage and thus makes the lock –...

  • Page 19: Rod Drive Iq Aut

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Electrical connection Cable and cover monitoring MST 210 Terminal X10.22 is connected with terminal X8.25 to use sabotage monitoring (comprising cable and cover mon- itoring).
  • Page 20 Electrical connection IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL DIP switch (back of PCB) à The DIP switch (1) can be used to switch the terminating resistor for RS485 on and off.

  • Page 21: Lever Lock Iq Lock Em

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Electrical connection Configuration/output 1 Output 2 is set permanently to the feedback "unlocked". Output 1 can be configured. à "Locked": The output is closed when the drive rod of IQ AUT is in the locked position.

  • Page 22: Contact Lock Iq Lock C

    Electrical connection IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL white white Bolt contact (NC) PIN 9 Contact closed: violet violet Bolt extended Contact open: Bolt retracted PIN 10...

  • Page 23: Wiring Diagrams

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams Wiring diagrams Designation Chapter Page IQ lock EL with motor lock control MST 210 Page 23 Standard connection IQ LOCK EL / MST 210 with low-pass filter from HW 159073 6.2...

  • Page 24: Standard Connection Iq Lock El / Mst 210 With Low-Pass Filter From Hw 159073

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Standard connection IQ LOCK EL / MST 210 with low-pass filter from HW 159073 24V DC NT 19.2-24 GN / YE...

  • Page 25: Iq Lock El With Programme Switch And Activation

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams IQ lock EL with programme switch and activation Follow the installation instructions for IQ lock. 24V DC NT 19.2-24...

  • Page 26: Iq Lock El With Emd (-F, -I) And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL IQ lock EL with EMD (-F, -I) and activation Follow the installation instructions for IQ lock. Heed the wiring diagram for EMD, EMD-F, EMD Invers.
  • Page 27 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams Push button / ZUKO / SCT 24V DC NT 19.2-24 MST 210 BK / RD DCU2, control unit Slimdrive EMD active leaf...

  • Page 28: Iq Lock El With Emd (-F, -I), Tz 320 Sn And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL IQ lock EL with EMD (-F, -I), TZ 320 SN and activation Follow the installation instructions for IQ lock.
  • Page 29 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 30: Iq Lock El With Tsa160 Nt (-F, -I) And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL IQ lock EL with TSA160 NT (-F, -I) and activation Follow the installation instructions for IQ lock. Heed the wiring diagram for TSA160 NT, TSA160 NT-F, TSA160 NT Invers.
  • Page 31 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams Push button / ZUKO / SCT 24V DC NT 19.2-24 MST 210 BK / RD GND in DCU5, control unit TSA 160 NT active leaf...

  • Page 32: Iq Lock El With Tsa160 Nt (-F, -I), Tz 320 Sn And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL IQ lock EL with TSA160 NT (-F, -I), TZ 320 SN and activation Follow the installation instructions for IQ lock.
  • Page 33 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 34: Iq Lock El With Emd (-F, -I) And Smoke Control Unit

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL IQ lock EL with EMD (-F, -I) and smoke control unit Follow the installation instructions for IQ lock. Heed the wiring diagram for EMD, EMD-F, EMD Invers.

  • Page 35: Iq Lock El With Tsa160 Nt (-F, -I) & Smoke Control Unit

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams IQ lock EL with TSA160 NT (-F, -I) & smoke control unit Follow the installation instructions for IQ lock.

  • Page 36: Iq Lock El With Smoke Control Unit (Rsz 6)

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 0 IQ lock EL with smoke control unit (RSZ 6) Follow the installation instructions for IQ lock.

  • Page 37: Iq Lock El With Smoke Control Unit (Rsz 5)

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams 6. 1 1 IQ lock EL with smoke control unit (RSZ 5) Follow the mechanical installation instructions for IQ lock.

  • Page 38: Iq Lock El With Smoke Control Unit Fa Gc 150/160

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 2 IQ lock EL with smoke control unit FA GC 150/160 Follow the mechanical installation instructions for IQ lock.
  • Page 39 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams Cables MST 210 IQ lock Lock Outputs COM day/ Night mode 24V DC NO day/night mode COM Release RSZ6...

  • Page 40: Iq Lock El With Tz 320 Sn And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 3 IQ lock EL with TZ 320 SN and activation Follow the installation instructions for IQ lock.
  • Page 41 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 42: Iq Lock El With K600 And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 4 IQ lock EL with K600 and activation Follow the installation instructions for IQ lock. Heed the wiring diagram of the retractable arm drive RWA K600.
  • Page 43 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 44: Iq Lock El With K600, Tz 320 Sn And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 5 IQ lock EL with K600, TZ 320 SN and activation Follow the installation instructions for IQ lock.
  • Page 45 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 46: Iq Lock Aut With K600 And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 6 IQ lock AUT with K600 and activation Follow the installation instructions for IQ lock. Heed the wiring diagram of the retractable arm drive RWA K600.
  • Page 47 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 48: Iq Lock Aut With K600, Tz 320 Sn And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 7 IQ lock AUT with K600, TZ 320 SN and activation Follow the mechanical installation instructions for IQ lock.
  • Page 49 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 50: Iq Lock Aut With Emd (-F, -I) And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 8 IQ lock AUT with EMD (-F, -I) and activation Follow the mechanical installation instructions for IQ lock.
  • Page 51 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 52: Iq Lock Aut With Tsa160 Nt (-F, -I) And Activation

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6. 1 9 IQ lock AUT with TSA160 NT (-F, -I) and activation Follow the mechanical installation instructions for IQ lock.
  • Page 53 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams...

  • Page 54: Iq Lock Aut With Powerturn Is

    Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 6.20 IQ lock AUT with Powerturn IS Follow the mechanical installation instructions for IQ lock AUT. Heed the Powerturn wiring diagram.
  • Page 55 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Wiring diagrams 230 V/ 50Hz Radar BS Radar BGS #MST 210 Powerturn Powerturn IS KÜ KÜ KÜ KÜ IQ lock EL-DL...
  • Page 56 Wiring diagrams IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL DCU802/Powerturn (GF) 24 V DC Mechanical 24VSens contact Ac va on innen 24VSens Ac va on 14VSens außen 24VSens...

  • Page 57: What If

    You can remedy most of the problems and faults which occur in day-to-day operation yourself. The following overview should help you with this. If you cannot find the reason for a fault or remedy it, please contact GEZE. Never open the lock casing yourself.
  • Page 58 What if? IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Alarm/fault Cause Consequence Remedial action Bar_L_OFF The Hall sensor at the locked à Drive rod is blocked. Make sure that the drive rod position of the drive rod à...
  • Page 59 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL What if? Alarm/fault Cause Consequence Remedial action No signal from the Reed Sensing distance of the Reed Electrical timeout func- Check Reed contact, sensing...
  • Page 60 What if? IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Mechanical contact lock IQ lock C / IQ lock C DL and mechanical lock IQ lock M / IQ lock M DL...

  • Page 61: Maintenance And Ce Marking

    IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Maintenance and CE marking Maintenance and CE marking Lock maintenance work must be carried out once a year by GEZE or an authorised GEZE partner.
  • Page 62 Maintenance and CE marking IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL CE marking GEZE GmbH PO Box 1363 D-71229 Leonberg Panic exit device 001 LE/DO no.: 0757-CPR-229PANIK-7013137-4 EN 1125: 2008...
  • Page 63 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Maintenance and CE marking GEZE GmbH PO Box 1363 D-71229 Leonberg Emergency exit device 001 LE/DO no.: 0757-CPR-229PANIK-7013137-5 EN 179: 2008...
  • Page 64 E-Mail: leonberg.de@geze.com Baltic States – Iberia Scandinavia – Norway Lithuania / Latvia / Estonia GEZE Iberia S.R.L. GEZE Scandinavia AB avd. Norge GEZE GmbH E-Mail: norge.se@geze.com E-Mail: baltic-states@geze.com E-Mail: info.es@geze.com Niederlassung Süd-Ost www.geze.no www.geze.es Tel. +49 (0) 7152 203 6440 E-Mail: muenchen.de@geze.com...
