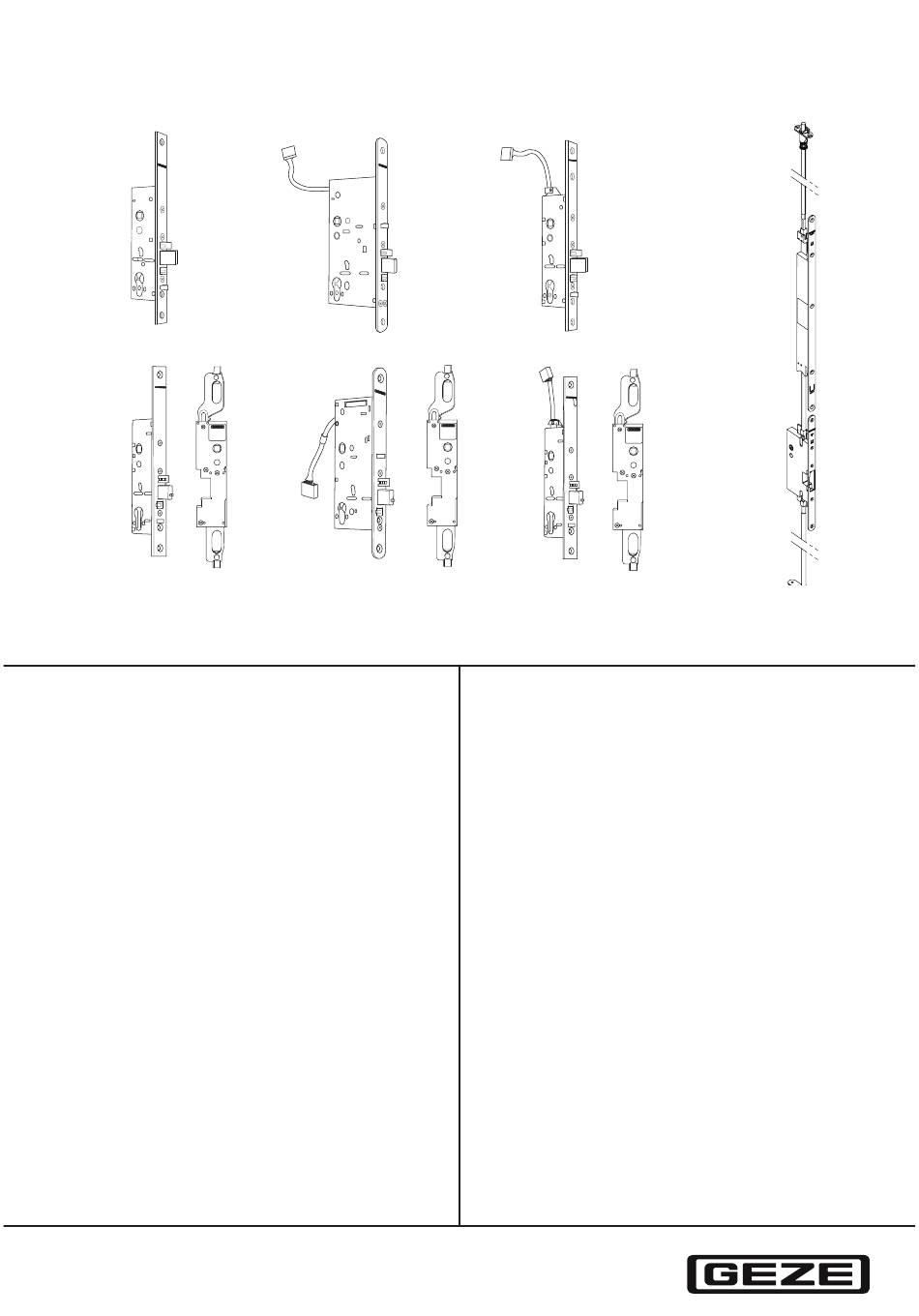

- Page 1 IQ lock – self-locking panic EN Installation manual locks for 1- and 2-leaf doors IQ lock AUT IQ lock EL / IQ lock EL DL IQ lock EM / IQ lock EM DL IQ lock C / IQ lock C DL IQ lock M / IQ lock M DL 157719-02...
-
Page 2: Table Of Contents
IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Contents Key to symbols ..................................3 Product description ................................3 Product liability ..................................3 Abbreviations ..................................3 Safety notices ................................3 Intended use........................................3 Technical safety .........................................4 Safety-conscious working .....................................4 Cleaning and care ......................................5 Accessories ..........................................5... -
Page 3: Key To Symbols
IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Safety notices Key to symbols Important information and technical notes are highlighted to explain correct operation. Symbol Meaning means “important note” means “additional information”... -
Page 4: Technical Safety
GEZE and their authorised specialists. à Damage to GEZE IQ locks can endanger your safety. Check them for visible signs of damage. Never put a dam- aged lock into operation. -
Page 5: Cleaning And Care
Use of motor locks IQ lock EL/IQ lock EL DL on fire and smoke protection doors GEZE motor locks, IQ lock EL for 1-leaf and IQ lock EL DL for 2-leaf fire and smoke protection doors may be used in all modes of operation (permanently unlocked, secured by day, night). -
Page 6: Your Contribution To Environmental Protection
14025 from the Institut Bauen und Umwelt e.V. (Institute for Construction and the Environment). This approv- al describes the specific environmental performance of the IQ locks and confirms that the GEZE lock family promotes environmentally friendly and healthy construction work. -
Page 7: Functions And Properties
Rod drive IQ AUT and IQ lock EL DL = IQ lock AUT Active leaf for IQ lock DL In conjunction with a GEZE battery pack **** Unlocking via active leaf ***** IQ AUT 42 × 400 × 15.5 mm... - Page 8 Functions and properties IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Mechanical re-locking The two cross latches are latched by activating the auxiliary latch. Latching of the two cross latches only takes place after this has engaged and positioned itself in the strike plate. has been positioned in the strike plate.
-
Page 9: Installation
à The pocket must be dimensioned in such a way that the lock can be inserted easily and screwed to the door leaf without tension in the bracket. Recess solid leaf (wooden door) Recess tubular frame (metal door) * Preparation for installation long plate (e.g. for GEZE panic bar (ID No. 119005). -
Page 10: Cable Routing For Iq Aut, Iq Lock El, Iq Lock Em And Iq Lock C
Round off the corners and edges round which the cable has to be routed to prevent damage to the cable. With flat door designs, the cable exit for the GEZE IQ lock EL and IQ lock EM is horizontal to the rear. This results in the depth of the recess from the dimension for the lock box depth plus approx. - Page 11 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation 4.3. 1 Installation note Correctly installed strike plate Incorrectly installed strike plate Solution with special strike plate Position of the cross latches and crossbars in the strike plate 3–7 mm Door frame...
-
Page 12: Strike Box (Passive Leaf 2-Leaf)
Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Strike box (passive leaf 2-leaf) The corresponding strike box tested in accordance with EN 179 and EN 1125 and the correspondingly tested flat face plate are enclosed with every lock. - Page 13 4.4. 1 Installation dimensions tubular frame M5 × max. 16 mm, tightening torque 3.1 Nm Preparation for installation long plate (e.g. for GEZE panic bar (ID No. 119005) For tubular-framed doors Strike box tubular frame doors, short Strike box tubular frame doors, long...
- Page 14 4.4.2 Installation dimensions solid leaf Countersink screw M5 × max. 20 mm Preparation for installation long plate (e.g. for GEZE panic bar (ID No. 119005) For solid leaf doors Strike box solid leaf For all accessory variants for IQ lock DL for 2-leaf solid leaf doors see chapter 4.6.2.
- Page 15 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation 4.4.3 Cut rods to length (without rod drive IQ AUT) RR = 134 VB = 66 RR = 189 VB = 145 ±2 Tube top Passive leaf...
- Page 16 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 4.4.4 Accessories in assembly Ø5.5 Ø5.5 Ø5.5 Ø5.2 Ø18.7 DM35 Ø15 Ø5.2 Ø6 Lipped strike plate top (ID No. 133920) Top lock top (ID No.
- Page 17 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation 4.4.5 Adapting the gap clearance Adapting the slider to the gap clearance It is imperative that the slider be adapted to the gap clearance so that the tube (top) and the rod (bottom) are retracted correctly and completely (unlocking).
- Page 18 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL 4.4.6 Mounting the adjustable strike plate Components Support Adjustable insert Magnet Strike plate Description With the adjustable strike plate, a door can be adjusted so that it fits into the frame without clearance when closed.
- Page 19 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Adjustment range latch cut-out Adjustment L Latch cut-out Adjustment L Latch cut-out [mm] [mm] [mm] [mm] 14.7 (max.) 180° 13.1 13.9 11.5 12.3...
-
Page 20: Rod Drive Iq Aut
Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Rod drive IQ AUT 4.5. 1 Preparing the door leaves Requirement In order to protect the lock components from falling chips when machining the passive leaf: Remove the strike box as well as the round bar top and bottom. - Page 21 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Recess for type of door: Solid leaf (depth of recess according to backset) Install strike box (1), flanged face plate strike box (2) and bottom round rod.
- Page 22 IQ AUT has two outputs with the potential which is connected to pin X1.21. The output “unlocked” is closed when the drive rod is in the unlocked position. Output 1 can be set (see Service menu). X5 - connection for GEZE-BUS (e.g.: IO 320) Connection...
- Page 23 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation DIP switch (back of PCB) à The DIP switch (1) can be used to switch the terminating resistor for RS485 on and off. à...
- Page 24 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Fitting the backset adapter Depending on the backset, a corresponding number of backset adapters (4) must be used (see table). Tubular frame type of door: Backset Number...
- Page 25 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Mounting the flat face plate Align the flat face plate (1) to IQ AUT. Screw in the three middle screws (2). Do not tighten the screws yet, since the IQ AUT must be able to move vertically in the...
- Page 26 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Cut the round rod top to size and insert it à The panic door fitting must be activated (unlocked). If necessary, cut the round rod top roughly to size to be able to insert the round rod top straight into the profile.
- Page 27 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Close door. Allow the panic door fitting to lock in the frame and move to end stop position. à The panic door fitting must not be activated (locked). Tighten the three middle screws.
-
Page 28: Accessories
Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Accessories 4.6. 1 IQ lock 1-leaf Flat face plate lock (door leaf) Product description Type of door × × Description (DIN direction, W Flat face plate DIN left/right, 22 ×... - Page 29 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation 27.8 30.8 14.5 103656 161953 122626 - DIN left 168588 - DIN left 122628 125201 - DIN right 168587 - DIN right 17.3 28.8 25.8...
- Page 30 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Support lock (door leaf) ID No. Product description × × Description (DIN direction, W 122629 Support lock DIN left/right 270 × 24 × 3 mm 152999 Support lock DIN left/right 270 ×...
- Page 31 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Flat face plate strike box (passive leaf) In the case of adjustable flanged face plates please note that the screws are coated with a threadlocker when the flat face plate is mounted on the strike box (and following removal for setting the latch cut-out).
- Page 32 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL FN 24 FN 9 FN 9 148842 - DIN left 148841 - DIN right 148844 - DIN left 148843 - DIN right 148958 - DIN left 168663 - DIN left 169760 - DIN left...
- Page 33 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Support lock (active leaf) ID No. Product description Description (DIN direction, W × H × D) 122629 Support lock DIN left/right 24 × 270 × 3 mm 152999 Support lock DIN left/right 28 ×...
- Page 34 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Flat face plate IQ AUT (passive leaf) ID No. Product description Type of door Description (DIN direction, W × H × D) 164244 Flat face plate IQ AUT DIN left/right, 22 ×...
- Page 35 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation 4.6.3 Accessories Rod locking Manual locking devices 156705 161530 Top lock top 156726 157391...
- Page 36 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Top lock supports Top lock - supports for strike plates 161528 161534 161533 161525 Rod guides Top lock Round rod guide Planet rod guide Flat strike plates 133918...
- Page 37 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Installation Rod locking top Locking bolts Length 1000 mm 156709 133916 134955 Length 1500 mm 156710 Length 2000 mm 156711 Length 2500 mm 156722 Top lock (solid leaf) Lipped strike plates...
- Page 38 Installation IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Top lock (tubular frame) Lipped strike plates 161978 - DIN left 162323 - DIN left 162322 - 162324 - 162310 - 162311 - DIN left/right DIN left/right...
-
Page 39: Sliding Door Fittings
Sliding door fittings The sliding door fittings that are listed in the approval in accordance with DIN EN 179 and 1125 may be combined with the GEZE self-locking panic locks. Stop direction for lever lock IQ lock EM/IQ lock EM DL Outward-opening:... -
Page 40: What If?
You can remedy most of the problems and faults which occur in day-to-day operation yourself. The following overview should help you with this. If you cannot find the reason for a problem or remedy it, please contact GEZE. Never open the lock casing yourself! à... - Page 41 Acknowledge fault and test The max. current limit has again. been exceeded during If the fault occurs again: unlocking, although the drive Return to GEZE Service. rod has already reached the unlocked position. OC_2UL_BAR “OverCurrent to unlock” à Drive rod or toothed Make sure that the drive rod is The max.
- Page 42 Door leaf cannot close, Lubricate the cross latches light- hard latches grind at the strike ly with a lubricant approved by plate GEZE. Auxiliary latch can no longer Mobilise the auxiliary catch be activated carefully. Lever lock IQ lock EM/IQ lock EM DL...
- Page 43 Door leaf cannot close, latch- Lubricate the cross latches light- close plate hard es grind at the strike plate ly with a lubricant approved by – or – GEZE. Auxiliary latch can no longer Mobilise the auxiliary catch be activated carefully.
-
Page 44: Maintenance And Ce Marking
IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Maintenance and CE marking Lock maintenance work must be carried out once a year by GEZE or an authorised GEZE partner. Maintenance instructions These maintenance instructions are part of the installation and operating instructions and have to be made avail- able to the owner/operator of the building. - Page 45 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Maintenance and CE marking CE marking GEZE GmbH PO Box 1363 D-71229 Leonberg Panic exit device 001 LE/DO no.: 0757-CPR-229PANIK-7013137-4-6 EN 1125: 2008...
- Page 46 Maintenance and CE marking IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL GEZE GmbH PO Box 1363 D-71229 Leonberg Emergency exit device 001 LE/DO no.: 0757-CPR-229PANIK-7013137-5-4 EN 179: 2008...
-
Page 47: Annex
IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Annex Annex 7. 1 Certificate in accordance with EN 14846 Classification of IQ lock EM / IQ lock EM DL in compliance with EN 14846 : 2008 Consistency of performance certificate in accordance with EN 1125... - Page 48 Annex IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL...
-
Page 49: Consistency Of Performance Certificate In Accordance With En 179
IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL Annex Consistency of performance certificate in accordance with EN 179... - Page 50 Annex IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL...
- Page 51 IQ lock AUT, EL / EL DL, EM / EM DL, C / C DL, M / M DL...
